3.5 Inch TFT Resistive Touch Screen 480×320 Resolution LCD Display Module

3.5 Inch TFT ResistiveTouch Screen 480×320 Resolution LCD Display Module Compatible with Raspberry Pi 1, 2 & 3
Product Description
3.5" IPS TFT display with resistive touch screen, specifically designed for Raspberry Pi compatibility while offering versatile connectivity options.
  • 3.5" standard display with 480 × 320 resolution
  • 4-wire resistive touch screen for precise control
  • Adjustable backlight with power-saving mode
  • Standard HDMI interface input for universal compatibility
  • Direct plug-and-play with Raspberry Pi (3rd, 2nd, and 1st generation)
  • Functions as general-purpose HDMI monitor for computers (requires 480×320 resolution output)
  • Supports multiple operating systems: Raspbian, Ubuntu, Kodi, Win10 IOT (with touch support)
  • PC monitor capability for XP, Win7, Win8, Win10 systems (touch not supported)
  • CE and RoHS certified for quality assurance
Product Specifications
ParameterValue
Size3.5 inch
SKUMPI3508
Resolution480×320 pixels
Touch Technology4-wire resistive
Dimensions85.51×60.60 mm
WeightNet: 55g, Gross: 135g
Hardware Interface
3.5 inch LCD display interface diagram
  • Backlight adjustment button: Short press changes brightness by 10%, long press (3 seconds) turns off backlight
  • HDMI interface: Connects motherboard to LCD monitor
  • Headphone jack: Standard 3.5mm audio output
  • Micro USB: Primary power supply input

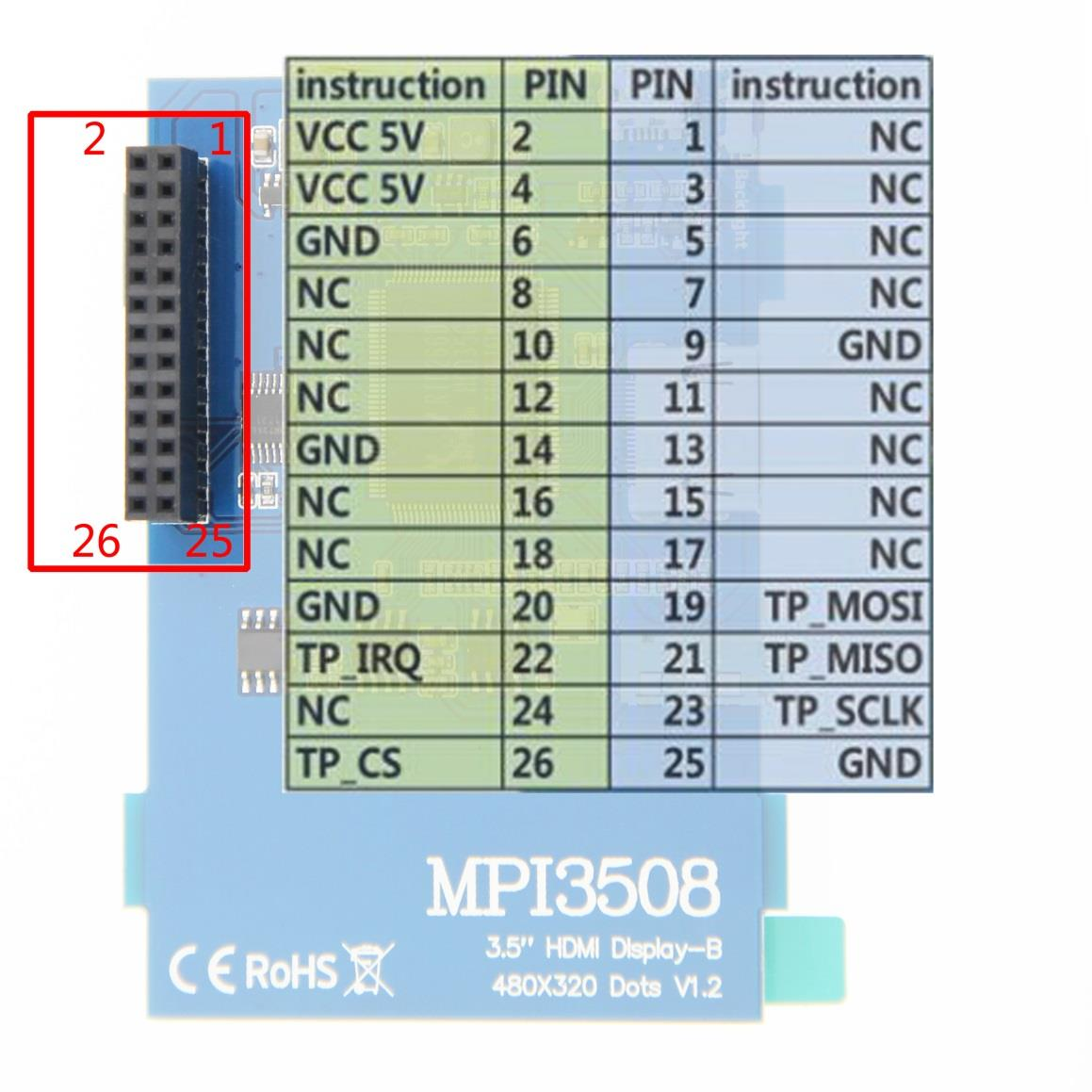

  • 13×2 Pin Socket: Provides 5V power from Raspberry Pi to LCD and transfers touch signals
LCD module dimensions diagram Detailed module dimensions
Raspberry Pi Connection Guide
  1. Connect the LCD's 13×2 pin socket to Raspberry Pi as shown: Raspberry Pi pin connection diagram
  2. Connect the LCD and Raspberry Pi using the HDMI adapter: HDMI connection diagram
Raspbian & Ubuntu Mate Setup
Step 1: Install OS Image
  1. Download official image from:
  2. Format TF card using SDFormatter
  3. Burn image to TF card using Win32DiskImager
Step 2: Install Drivers
Method 1: Online Installation
  1. Connect to Raspberry Pi via SSH (Putty recommended)
  2. Execute these commands:
    sudo rm -rf LCD-show
    git clone https://github.com/goodtft/LCD-show.git
    chmod -R 755 LCD-show
    cd LCD-show/
    sudo ./MPI3508-show
  3. Wait for completion - LCD will be ready for use
Method 2: Offline Installation
  1. Download driver from: LCD-show.tar.gz
  2. Copy to Raspberry Pi root directory
  3. Execute these commands:
    cd /boot
    sudo tar zxvf LCD-show.tar.gz
    cd LCD-show/
    sudo ./MPI3508-show
  4. Wait for completion - LCD will be ready for use
PC Monitor Setup
  1. Connect computer HDMI output to LCD HDMI interface
  2. Connect LCD MicroUSB to computer's USB port for power
  3. For testing, set LCD as primary/only display
Note: Touch functionality is not available when used as a PC monitor.
