| Categories | Blade Fuse Holders |
|---|---|
| Model Number: | SL-506A |
| Place of Origin: | China |
| MOQ: | 1000 |
| Price: | USD $0.3~$0.5 per piece |
| Payment Terms: | T/T |
| Supply Ability: | 50K pieces per week |
| Delivery Time: | 10 work days |
| Packaging Details: | Carton |
| Name: | Fuse Holder, Fuse Clip |
| Mounting: | PCB |
| Ur: | 250V |
| Ir: | 30A |
| Applied to: | Low-profile Mini ATO Blade Fuses |
| RoHS Compliant: | Yes |
| Body Dimension: | 19.8*6.8*7.4mm |
| Body Material: | PA66 UL94V-0 |
| Terminal Material: | tinned brass |
| Company Info. |
| Dongguan Reomax Electronics Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

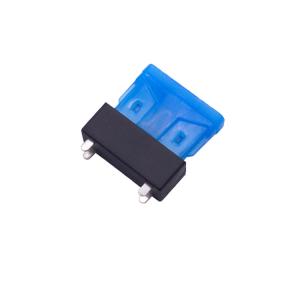

250V 32V 30A PCB Mount Fuse Holder For Low-Profile ATT Mini Standard ATO Bladed Type Car Fuse Clip With 4 Pins
Product Description
| Name | Blade Fuse Holder |
| Mounting | PCB |
| Color | black |
| Length | 19.8mm |
| Width | 6.8mm |
| Height | 7.4mm |
| Terminal Width | 1.6mm |
| Terminal Thickness | 0.4mm |
Drawing of SL-506A Blade Fuse Holder
Blade Fuse Group
| Blade size | Blade group | Dimensions L × W × H | Common ratings (maximum current) |
| LP-Mini | APS, ATT | 10.9 × 3.81 × 8.73 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30 |
| Mini | APM, ATM | 10.9 × 3.6 × 16.3 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35A |
| Regular | APR, ATC, ATO, ATS | 19.1 × 5.1 × 18.5 mm | 1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40 |
Colors & Ratings
| Color | Current rating |
| Black | 1A |
| Grey | 2A |
| Violet | 3A |
| Pink | 4A |
| Tan | 5A |
| Brown | 7.5A |
| Red | 10A |
| Blue | 15A |
| Yellow | 20A |
| Transparent | 25A |
| Green | 30A |
| Blue-green | 35A |
| Orange | 40A |
Incoterm:
EXW, DDU, DDP, C&F, FOB
Shipping:
Express, By Air, By Sea
1. Replace the fuse according to the rated current value indicated in the fuse box, and do not use a fuse with a higher rated current.
2. If the new fuse is blown immediately, this indicates that the circuit system may be faulty and should be repaired as soon as possible.
A: We are a fuse product factory.
A: 3 days if the goods are in stock, 10 days if the goods not in stock.
A: Yes, we could offer the samples for free charge but do not pay for the shipping.
A: T/T, 100% in advance
| Item Name | Blade Fuse Holder |
| Mounting Method | PCB |
| Base Color | black |
| Base Length | 19.8mm |
| Base Width | 6.8mm |
| Base Height | 7.4mm |
| Pin Width | 1.6mm |
| Pin Thickness | 0.4mm |
|
