| Categories | Blade Fuse Holders |
|---|---|
| Model Number: | SL-703H2 JH-703H2 JEF-703H2 |
| Place of Origin: | China |
| MOQ: | 1000 |
| Price: | USD $0.3~$0.5 per piece |
| Payment Terms: | T/T |
| Supply Ability: | 50K pieces per week |
| Delivery Time: | 10 work days |
| Packaging Details: | Carton |
| Item Name: | Twin Type Fuse Holder |
| Mount Type: | Panel |
| Voltage Rating: | 32V dc |
| Current Rating: | 30A |
| Applied to: | ATO ATC Standard Blade Fuses |
| RoHS Compliant: | Yes |
| Body Material: | nylon |
| Terminal Material: | nickel plated brass |
| Terminal Thickness: | 0.5 mm |
| Company Info. |
| Dongguan Reomax Electronics Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

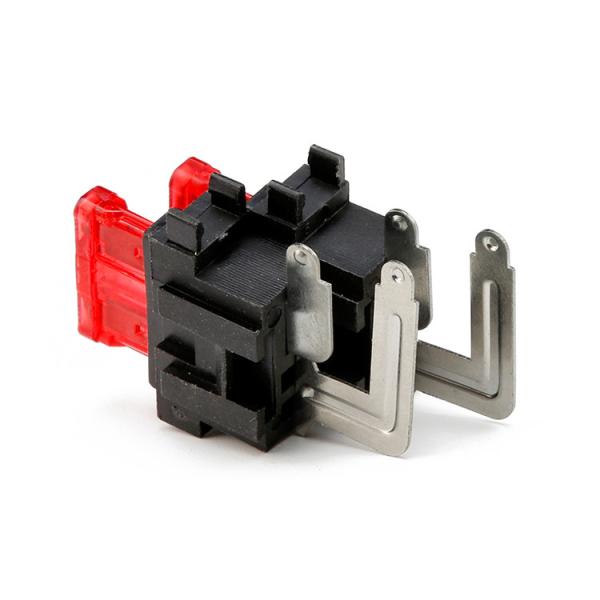

ATO ATC ATU Plug-In Blade Fuse Block Panel Mount Twin Fuse Holder JEF-703H2 For Two Fuses
Product Description
For ATO ATC Blade Fuses
| Item | Fuse Holder |
| Mouting Style | Panel |
| Max Rating | 30A 32V |
| Certifications | RoHS |
| Body Color | black |
| House material | PA66 |
| Terminal material | nickel plated brass |
| MOQ | 1000PCS |
Drawing of JEF-703H2 Fuse Holder
Blade Type Fuse Sizes
| Blade size | Blade group | Dimensions L × W × H | Common ratings (maximum current) |
| Micro2 | APT, ATR | 9.1 × 3.8 × 15.3 mm | 5, 7.5, 10, 15, 20, 25, 30 |
| Micro3 | ATL | 14.4 × 4.2 × 18.1 mm | 5, 7.5, 10, 15 |
| LP-Mini (low profile) | APS, ATT | 10.9 × 3.81 × 8.73 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30 |
| Mini | APM, ATM | 10.9 × 3.6 × 16.3 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35A |
| Regular | APR, ATC, ATO, ATS | 19.1 × 5.1 × 18.5 mm | 1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40 |
| Maxi | APX | 29.2 × 8.5 × 34.3 mm | 20, 25, 30, 35, 40, 50, 60, 70, 80, 100, |
Colors & Ratings
| Color | Current rating |
| Black | 1 A |
| Grey | 2 A |
| Violet | 3 A |
| Pink | 4 A |
| Tan | 5 A |
| Brown | 7.5 A |
| Red | 10 A |
| Blue | 15 A |
| Yellow | 20 A |
| Transparent | 25 A |
| Green | 30 A |
| Blue-green | 35 A |
| Orange | 40 A |
| Red | 50 A |
| Blue | 60 A |
| Amber/tan | 70 A |
| Transparent | 80 A |
| Violet | 100 A |
Applications
Car, Boat, Truck, SUV, Motorcycle, etc.
Standard Package:
depends on the cable spec
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
1. Replace the fuse according to the rated current value indicated in the fuse box, and do not use a fuse with a higher rated current.
2. If the new fuse is blown immediately, this indicates that the circuit system may be faulty and should be repaired as soon as possible.
A: We are a fuse product factory.
A: 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: 100% in advance, T/T.
ATO ATC ATU Plug-in Blade Fuse Block Panel Mount Twin Fuse Holder JEF-703H2 for Two Fuses
| Item | SL-703H2 Fuse Holder 2 in 1 |
| Mouting Style | Panel |
| Max Rating | 30A 32V |
| Certifications | RoHS |
| Body Color | black |
| House material | PA66 |
| Terminal material | nickel plated brass |
| MOQ | 1000PCS |
|
