APX Maxi Blade Fuse Holders / 8 Awg Inline Fuse Holder PVC Splashproof

Categories	Blade Fuse Holders
Model Number:	709L
Place of Origin:	China
MOQ:	100
Price:	USD $2~$2.5 per piece
Payment Terms:	T/T
Supply Ability:	5K pieces per week
Delivery Time:	10 work days
Packaging Details:	Carton
Item Name:	Maxi fuse holder
Mount Type:	Inline, in-line
Voltage Rating:	32V
Current Rating:	100A
Applied to:	APX/maxi Blade Fuse
RoHS Compliant:	Yes
Body Material:	PVC
Terminal Material:	brass
Protection Grade:	IP67, Splashproof
Body length:	79mm
Wire gauge:	8AWG 10AWG
Wire length:	Customized
Operation temperature:	-40C~125C

Contact Now

Add to Cart

Company Info.

Dongguan Reomax Electronics Technology Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

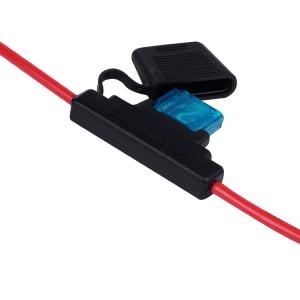

APX Maxi Blade Fuse Holders / 8 Awg Inline Fuse Holder PVC Splashproof

APX Maxi In-line Blade Fuse Holder with 8AWG 10AWG Wire

Product Description

For Maxi Car Blade Fuses

8 or 10 Gauge (AWG) UL1015 wire,

Strong PVC molding body

Fits for 20A, 30A, 40A, 50A, 60A, 70A, 80A, 100A Maxi fuse.

Unique design of dual slot tight-fitting waterproof lid to enhance moisture-proof and waterproof.

Good bending performance, melting resistance and excellent electrical conductivity.

Protect the wiring and electrical equipment from short circuit, overload etc.

Best for cars, boats, motorbikes and trucks.

Contact Resistance:100mΩ at 1A DC
lnsulation Resistance:≥100mΩ 500Vdc
Electrical:Rated at 100A 32Vdc
Insulating Body: PVC
Terminals:brass, plated with nickel
Operation temperature:-40C to +125C

Fuses are optional.

Item	Maxi Car Fuse Holder
Mouting Style	In-line
Max Rating	100A 32V
Certifications	RoHS
Body Color	black
House material	PVC
Terminal material	brass
Body length	79mmx18.5mm
Body height	52.4mm
MOQ	100PCS

Available in customized length

Dimension of maxi car blade fuse holder

1. Easy installation:

Just insert your fuse to the holder,close the cover and then connectthe fuse holder to the circuit.

2. Safety: Safety insulation PVC body and UL standard PVC cable ensure safe operation.

3. High reliability: finely made contacts ensures the fuses are in full contact with the terminals.

4: lP67 Waterprooof Rating

Specially designed rubber cap fits on tightly toprevent water and dust from entering

5: Waterproof design, the rubber cap fits on tightly to protect any standard blade fuse inside. NOT easy to fall off or let water in.

What you need to know before ordering:

Size	This is for maxi blade fuses. Suitable for 20A, 30A, 40A, 50A, 60A, 70A, 80A, 100A fuses (Smilar models for standard and maxi fuses are available)
Wire length	which gauge? looped wire or cut wire? how long?
Wire ends	need stripping?
Fuse	need fuses preinstalled?

Applications

Car, Boat, Truck, SUV, Motorcycle, etc.

Size groups

Blade size	Blade group	Dimensions L × W × H	Common ratings (maximum current)
Micro2	APT, ATR	9.1 × 3.8 × 15.3 mm	5, 7.5, 10, 15, 20, 25, 30
Micro3	ATL	14.4 × 4.2 × 18.1 mm	5, 7.5, 10, 15
LP-Mini (low profile)	APS, ATT	10.9 × 3.81 × 8.73 mm	2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30
Mini	APM, ATM	10.9 × 3.6 × 16.3 mm	2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35A
Regular	APR, ATC, ATO, ATS	19.1 × 5.1 × 18.5 mm	1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40
Maxi	APX	29.2 × 8.5 × 34.3 mm	20, 30, 35, 40, 50, 60, 70, 80, 100

Colors & Ratings

Color	Current rating
Black	1 A
Grey	2 A
Violet	3 A
Pink	4 A
Tan	5 A
Brown	7.5 A
Red	10 A
Blue	15 A
Yellow	20 A
Transparent	25 A
Green	30 A
Blue-green	35 A
Orange	40 A
Red	50 A
Blue	60 A
Amber/tan	70 A
Transparent	80 A
Violet	100 A

Standard Package:

depends on the cable spec

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance, T/T.
