Brand Name: | Sinuo |
Model Number: | SNQC1016 |
Certification: | Calibration Certificate (Cost Additional) |
Place of Origin: | China |
MOQ: | 1 |
Price: | Customized |
Payment Terms: | L/C, , T/T, Western Union, MoneyGram |
Supply Ability: | 1 set per month |
Delivery Time: | 30 Days |
Packaging Details: | Plywood |
Applied Standard: | IEC 60898-1 Clause 9.14 |
Control Method: | Microcomputer temp. controller |
Sensor Type: | Platinum temp. sensor (PT-100) |
Chamber Material: | SUS#316 full argon welding |
Test Space: | W250mm×D200mm×H200mm |
Temperature: | Saturated water vapor temp. (20±5)℃; |
Timer Type: | 0.1~999.9s/m/h |
Response Time: | Up to 99% within ≤1min |
Company Info. |
Sinuo Testing Equipment Co. , Limited |
Verified Supplier |
View Contact Details |
Product List |
IEC 60898-1 MCB Rusting Resistance Air Saturated Test Chamber
Product Information:

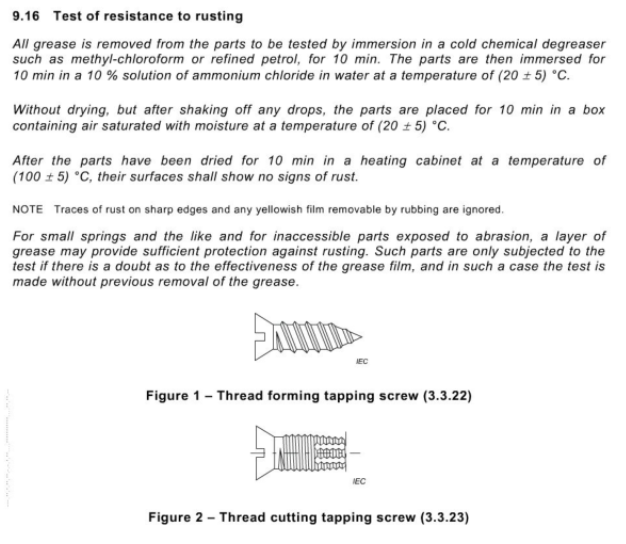

This air saturated test chamber is required by IEC 60898-1:2015 clause 9.16, IEC 61009-1:2012, etc. It is used to process further rusting in saturated water vapor for plugs, screws and other metal components after being soaked in ammonium chloride water.
Chamber Features:
1. Adopt microcomputer temperature controller. +, M. +. Control LED
digital display.
2. Adopt platinum temperature sensor (PT-100), and temperature is
precisely controllable with resolution ability 0.1℃.
3. Water vapor test target can be set and controlled, steam test
operation timing can be set and controlled.
4. Inner chamber stainless steel material: SUS#316 full argon
welding, and outer chamber: SUS#316 material.
5. Fully automatically control.
Technical Parameters:
Input power: AC220V±10%, 50/60Hz;
Test space: W250mm×D200mm×H200mm;
Test saturated water vapor temperature: (20±5)℃;
Humidity indication: LCD temperature and humidity meter displays
the current ambient temperature and humidity;
Timer: 0.1~999.9s/m/h continuous timing and setting, there will be
a buzzer sound when the timer reaches the set value;
Response Time: up to 99% within ≤1min;
Box material: SUB304 stainless steel.
![]() |
