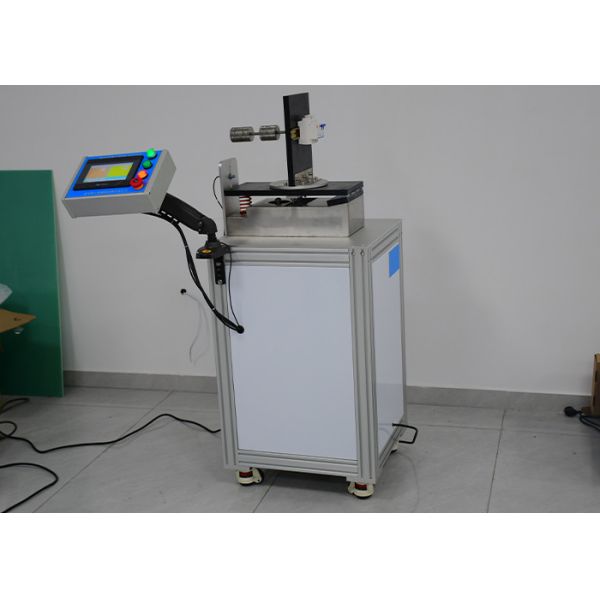

IEC 61009-1 Circuit-Breakers Mechanical Shock Testing Machine

IEC 61009-1 Circuit-Breakers Mechanical Shock Testing Machine

Product overview:

The test equipment conforms to the standard requirements of IEC 61009-1:2012, IEC60898-1:2015, etc.

It is used for circuit breaker product testing to verify the impact resistance of exposed parts of circuit breakers that may be subjected to mechanical shocks during normal use.

Test principle: Lift the mounting plate with the circuit breaker through the motor control cam, and instantly drop freely to the metal stop plate equipped with the coil spring with an elastic coefficient of 25N/mm. Reciprocate 50 times in this way, and the sample switches the other three 90-degree directions through the turntable and repeats the test 50 times.

Features: 1. PLC control, touch screen operation, servo motor drive, precise control.

2. The drop height is determined by the eccentric distance of the cam, without deviation.

3. Adopt Yiheda customized elastic coefficient helical spring.

4. The turntable can be rotated 4-90°, which really simulates the impact resistance test of the circuit breaker in all directions.

Technical Parameters:

Model	SN2506
Test station	Single
Electrical control method	PLC intelligent integrated control, man-machine touch interface operation
Drive Mode	Motor drive mechanism cam
Coil Spring	Elastic coefficient 25N/mm
Base A, Platform B, Plank C	Hardwood, painted black
Drop height	40mm
Turntable	Can be 4-90°rotation fixed
Weights	100g*10pcs, 150g*5pcs, 200g*5pcs
Number of tests	0-999999 times, touch screen preset
Load output	0-999999s, touch screen preset
Dimension	900mm×600mm×1350mm
Weight	About 110 KG
Power supply	AC380V±10% 50Hz, 1kVA
