WTB9L-3N2261 | Photoelectric sensors - SICK part no : 1062523

WTB9L-3N2261 | W9

SMALL PHOTOELECTRIC SENSORS

Ordering information

Type

Part no.

WTB9L-3N2261

1062523

Other models and accessories → www.sick.com/W9

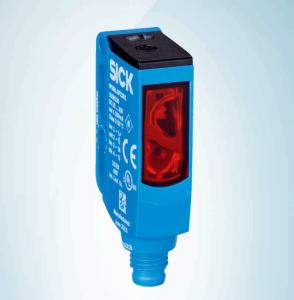

Illustration may differ

ecoung四

SIRIC

optical AS C

invented by s Ck

Detailed technical data

Features

Functional principle

Photoelectric proximity sensor

Functional principle detail

Background suppression

Dimensions (W x H x D)

12.2 mm x 49.8 mm x 23.6 mm

Housing design (light emission)

Rectangular

Mounting hole

Sensing range max.

25 mm ... 300 mm 1)

Sensing range

25 mm ... 300 mm 1)

Type of light

Visible red light

Light source

Laser 2)

Light spot size (distance)

Ø 1 mm (170 mm)

Wave length

650 nm

Laser class

1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)

Adjustment

Potentiometer, 5 turns

Special applications

Detecting small objects

Object with 90% remission (based on standard white, DIN 5033).

Average service life: 50,000 hat TU = +25 °C.

2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2025-01-15 12:31:19

Subject to change without notice

WTB9L-3N2261 | W9

SMALL PHOTOELECTRIC SENSORS

Mechanics/electronics

Supply voltage UB

10 V DC ... 30 V DC 1)

Ripple

< 5 Vpp

Current consumption

30 mA 3)

Switching output

NPN 4)

Output function

Complementary

Switching mode

Light/dark switching

Output current Imax.

≤ 100 mA

Response time

≤ 0.5 ms 5)

Switching frequency

1,000 Hz 6)

Connection type

Male connector M8, 4-pin

Circuit protection

A 7)
B 8)
C 9)

Protection class

III

Weight

13 g

Housing material

Plastic, VISTAL®

Optics material

Plastic, PMMA

Enclosure rating

IP66
IP67
IP69K

Ambient operating temperature

–10 °C ... +50 °C

Ambient operating temperature extended

–30 °C ... +55 °C 10) 11)

Ambient temperature, storage

–30 °C ... +70 °C

UL File No.

NRKH.E181493

1) Limit values when operated in short-circuit protected network: max. 8 A.
2) May not fall below or exceed UV tolerances.
3) Without load.

4) Q = light switching.

5) Signal transit time with resistive load.
6) With light/dark ratio 1:1.

7) A = VS connections reverse-polarity protected.
8) B = inputs and output reverse-polarity protected.
9) C = interference suppression.

10) As of Ta = 50 °C, a max. supply voltage Vmax. = 24 V and a max. load current Imax. = 50 mA is permitted.

11) Operation below Tu –10 °C is possible if the sensor is already switched on at Tu > –10 °C, then cools down, and the supply voltage is subsequently not switched
off. Switching on below Tu –10 °C is not permissible.

Safety-related parameters

MTTFD

423 years (EN ISO 13849-1)

DCavg

0 %

1) Mode of calculation: Parts-Count-calculation.

Classifications

ECLASS 5.0

27270904

ECLASS 5.1.4

27270904

2025-01-15 12:31:19 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3

Subject to change without notice

WTB9L-3N2261 | W9

SMALL PHOTOELECTRIC SENSORS

ECLASS 6.0

27270904

ECLASS 6.2

27270904

ECLASS 7.0

27270904

ECLASS 8.0

27270904

ECLASS 8.1

27270904

ECLASS 9.0

27270904

ECLASS 10.0

27270904

ECLASS 11.0

27270904

ECLASS 12.0

27270903

ETIM 5.0

EC002719

ETIM 6.0

EC002719

ETIM 7.0

EC002719

ETIM 8.0

EC002719

UNSPSC 16.0901

39121528

Adjustments

Potentiometer

④ Q D ⑤

⑨

④ LED indicator yellow: Status of received light beam

⑤ LED indicator green: power on

⑨ Adjustment of sensing range

Connection diagram

Cd-083

+ (L+)

- (M)

4 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2025-01-15 12:31:19

Subject to change without notice

WTB9L-3N2261 | W9

SMALL PHOTOELECTRIC SENSORS

Characteristic curve

% of sensing range

6 %/90

①

18 %

/90 %

90 %/9

0 %

100

150

200

250

300

(1.97)

(3.94)

(5.91)

(7.87)

(9.84)

(11.81)

Sensing range in mm (inch)

① Sensing range on black, 6% remission factor

② Sensing range on gray, 18% remission factor

③ Sensing range on white, 90% remission factor

Light spot size

Radius in mm (inch)

Dimensions in mm (inch)

0.8

Sensing range Vertical Horizontal

0.6

50 mm
(1.97)

1.2
(0.05)

1.0
(0.04)

0.4

100 mm

1.1

1.0

0.2

(3.94)

(0.04)

200 mm

0.9

(7.87)

(0.04)

300 mm

0.8

–0.2

(11.81)

(0.03)

–0.4

–0.6

–0.8

–1

100

150

200

250

300

(1.97)

(3.94)

(5.91)

(7.87)

(9.84)

(11.81)

Vertical

Sensing range in mm (inch)

am Horizontal

2025-01-15 12:31:19 | Product data sheet PHOTOELECTRIC SENSORS |SICK 5

Subject to change without notice

WTB9L-3N2261 | W9

SMALL PHOTOELECTRIC SENSORS

Sensing range diagram

①

170

②

250

③

300

100

150

200

250

300

(1.97)

(3.94)

(5.91)

(7.87)

(9.84)

(11.81)

Distance in mm (inch)

Sensing range typ. max.

① Sensing range on black, 6% remission factor

② Sensing range on gray, 18% remission factor

③ Sensing range on white, 90% remission factor

Dimensional drawing (Dimensions in mm (inch))

WTB9L-3

12.2

(0.48)

23.6 (0.93)

④

3.7 (0.15)

⑤

③

①

②

⑥

⑦ ⑧

① Center of optical axis, receiver

② Center of optical axis, sender

③ Mounting hole M3 (Ø 3.1 mm)

④ LED indicator yellow: Status of received light beam

⑤ LED indicator green: power on

⑥ Connecting cable or connecting cable with connector

⑦ Male connector M8, 4-pin

⑧ Male connector M12, 4-pin

Recommended accessories

Other models and accessories → www.sick.com/W9

Brief description Type Part no.

Mounting brackets and plates

6 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2025-01-15 12:31:19

Subject to change without notice

WTB9L-3N2261 | W9

SMALL PHOTOELECTRIC SENSORS

Brief description

Type

Part no.

Others

• Connection type head A: Female connector, M8, 4-pin, straight, A-coded
• Connection type head B: Flying leads
• Signal type: Sensor/actuator cable
• Cable: 5 m, 4-wire, PVC
• Description: Sensor/actuator cable, unshielded
• Application: Zones with chemicals, Uncontaminated zones

YF8U14-
050VA3XLEAX

2095889

• Connection type head A: Male connector, M8, 4-pin, straight, A-coded
• Description: Unshielded
• Connection systems: Screw-type terminals
• Permitted cross-section: 0.14 mm² ... 0.5 mm²

STE-0804-G

6037323

2025-01-15 12:31:19 | Product data sheet PHOTOELECTRIC SENSORS | SICK 7

Subject to change without notice
