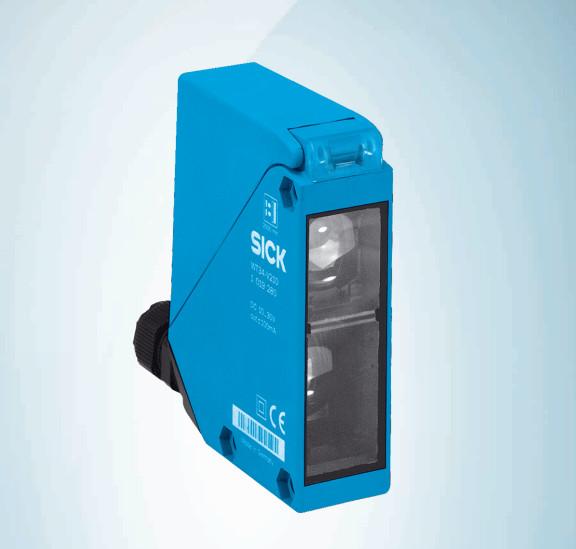

SICK - WL34-B430 - Photoelectric RetroReflective Sensor

SICK - WL34-B430 - Photoelectric RetroReflective Sensor

SICK - WL34-B430 - Photoelectric RetroReflective Sensor
SICK - WL34-B430 - Photoelectric RetroReflective Sensor
Categories SICK Laser Sensor
Brand Name: SICK
Model Number: WL34-B430
Certification: 3C
Place of Origin: GERMANY
MOQ: 1
Price: 233$/piece
Payment Terms: T/T
Supply Ability: 1piece in stock
Delivery Time: 3 day
Packaging Details: 110*60*60mm
WL34-B430: 27 mm x 92 mm x 70 mm
Switching frequency: 1,000 Hz
Weight: 140 g
Enclosure rating: IP67
Contact Now
Company Info.
Xiamen ZhiCheng Automation Technology Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SICK - WL34-B430 - Photoelectric RetroReflective Sensor

WL34-B430 | W34
COMPACT PHOTOELECTRIC SENSORS
Ordering information
TypePart no.
WL34-B4301019245
Other models and accessories → www.sick.com/W34
Illustration may differ
LISTED
Detailed technical data
Features
Functional principlePhotoelectric retro-reflective sensor
Functional principle detailWith minimum distance to reflector (dual lens system)
Dimensions (W x H x D)27 mm x 92 mm x 70 mm
Housing design (light emission)Rectangular
Sensing range max.0.03 m ... 22 m 1)
Sensing range0.03 m ... 15 m 1)
Type of lightVisible red light
Light sourceLED 2)
Light spot size (distance)Ø 250 mm (15 m)
Wave length660 nm
AdjustmentPotentiometer
1) Reflector PL80A.
2) Average service life: 100,000 hat TU = +25 °C.
Mechanics/electronics
Supply voltage UB10 V DC ... 30 V DC 1)
Ripple< 5 Vpp2)
Current consumption50 mA
Switching outputNPN, PNP
1)Limit values.
2)May not fall below or exceed UV tolerances.
3)Signal transit time with resistive load.
4)With light/dark ratio 1:1.
5)A = VS connections reverse-polarity protected.
6)C = interference suppression.
7)D = outputs overcurrent and short-circuit protected.
8)Reference voltage: 50 V DC.
2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2024-09-25 17:23:43
Subject to change without notice
WL34-B430 | W34
COMPACT PHOTOELECTRIC SENSORS
Switching modeLight switching, Dark switching
Switching modeselectorSelectable via PNP/NPNselector, selectable via light/dark selector
Output current Imax.≤ 100 mA
Response time≤ 500 µs3)
Switching frequency1,000 Hz 4)
Connection typeMale connector M12, 4-pin
Circuit protectionA 5)
C 6)
D 7)
Protection classII 8)
Weight140 g
Polarisation filter✔
Housing materialPlastic, ABS
Enclosure ratingIP67
Test input sender offTE to 0 V
Ambient operating temperature–40 °C ... +60 °C
Ambient temperature, storage–40 °C ... +75 °C
UL File No.NRKH.E181493 & NRKH7.E181493
1) Limit values.
2) May not fall below or exceed UV tolerances.
3) Signal transit time with resistive load.
4) With light/dark ratio 1:1.
5) A = VS connections reverse-polarity protected.
6) C = interference suppression.
7) D = outputs overcurrent and short-circuit protected.
8) Reference voltage: 50 V DC.
Safety-related parameters
MTTFD834 years
DCavg0 %
Classifications
ECLASS 5.027270902
ECLASS 5.1.427270902
ECLASS 6.027270902
ECLASS 6.227270902
ECLASS 7.027270902
ECLASS 8.027270902
ECLASS 8.127270902
ECLASS 9.027270902
ECLASS 10.027270902
ECLASS 11.027270902
ECLASS 12.027270902
ETIM 5.0EC002717
2024-09-25 17:23:43 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3
Subject to change without notice
WL34-B430 | W34
COMPACT PHOTOELECTRIC SENSORS
ETIM 6.0EC002717
ETIM 7.0EC002717
ETIM 8.0EC002717
UNSPSC 16.090139121528
