Opposed VCD Fire Damper Blade Roll Forming Machine Width Adjustable HVAC System

Categories Roll Forming Equipment
Brand Name: SUSSMAN
Model Number: SS-FD
Certification: CE
Place of Origin: WUXI CHINA
MOQ: 1 set
Price: negotiable
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Delivery Time: 65-75 days after deposit
Packaging Details: standard packing
Type: Fire Damper Blade Roll Forming Machine
Thickness: 0.6-1.0mm
Rolling Speed: About 10m/min
Motor Power: 5.5 kw
cutting Power: 4 KW
Way Of Drive: 1.2 inch chain
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

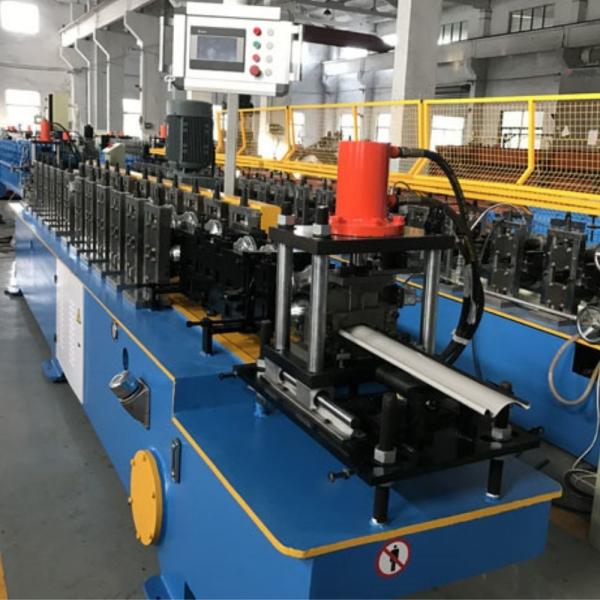

Opposed VCD Fire Damper Blade Roll Forming Machine Width Adjustable HVAC System

Opposed VCD Fire Damper Blade Roll Forming Machine Width Adjustable HVAC System


Technical Parameter

ItemsSpecifications
Material of coilMaterial Thickness0.6-1.0mm
Un Coiler3 tons manual
Forming systemRolling SpeedAbout 10m/min
Roller StationsAbout 12 stations feeding
Roller Material

Gcr15 coated with chrome

Maim Motor Power5.5 kw
Motor cutting Power4kw

Cutting
system

Material Of CuttingCR12mov with quench treatment
HardnessHRC58-62
Tolerance+-1.5mm
Electrical control systemElectric Source

415 V, 50HZ,3 phase
Also can satisfy Customer’s requirey

Control SystemPLC (Panasonic) as list in the note
WeightAbout 4 tons
Way Of Drive1.2 inch chain


Machine list

Machine list3 ton passive de-coiler1 set
Main roll forming machine1 set
PLC Control box1 unit
Hydraulic station1 unit
Out table1 unit
One 20 feet GP Container

Technological process:
Uncoiling—feedingwithguide———Rollforming——Cutting ——Products collecting

Profile Drawing



Samples





Application:


Our After-Sales Service Commitments

Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipments sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipments, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipments, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts


The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipments:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipments, and provide Buyer with answers to their questions and related issues;


2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipments for the Buyer, the Buyer can send their personnel to participate.


3.If failure occurs in any of the machines during the “three guarantees” period(one year), three guarantees including the electricity parts, the rolls, the shafts and punching& cutting moulds, then, upon the Buyer’s request, Sussman will eliminate the failure;


4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
