Water Resistant Industrial Touch Monitor For Automatic Ticketing Machine

Categories Waterproof Touch Monitor
Brand Name: Shinho
Model Number: SL22
Certification: CE, FCC, RoHS
Place of Origin: Shenzhen, China
MOQ: 1 piece
Price: Negotiation
Payment Terms: T/T, Paypal, L/C, D/A, D/P, Western Union, MoneyGram,
Product Name: IP67 LCD Touch Monitor
Panel Size: 21.5"
Resolution: 1920*1080
Aspect ratio: 16:9
Touch Type: 5 wire resistive touch
Brightness: 1000 nits, sunlight readable
View angle: 80°/80°/80°/80° (L/R/U/D)
Signal port: HDMI
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Water Resistant Industrial Touch Monitor For Automatic Ticketing Machine

21.5 Inch IP67 Waterproof Touch Monitor 1000 Nits Full HD 1920*1080


Quick details


1) 21.5 inch industrial LCD Panel


2) Full HD Resolution 1920*1080


3) High brightness 1000 nits for outdoor, sunlight readable


4) High waterproof grade full IP67


5) 5 wire resistive touch, USB interface


6) HDMI Signal port


7) Power Supply AC 100-240V, DC 12V


Applications


Industrial automation


Automatic ticketing machine


Self service vending machine


Check-In Kiosks


Gas station


Customer Feedback Kiosk


Parking lot


CNC machine


Specification


Model:SL22W
LCD panel
Panel size21.5"
Resolution1920*1080
Aspect ratio16:9
Support Color16.7M colors
Brightness (cd/m²)1000 nits,sunlight readable
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type5 wire resistive touch
Touch InterfaceUSB (RS232 optional)
Touch response time<5ms
Luminousness85%
Surface Hardness3H
Working Life>35 million times
Touch options( PCAP touch optional)
Singal Ports
HDMI1×HDMI
VGAoptional
DVIoptional
AVoptional
Audio in/outoptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OSWindows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12V
Power consumption25 W
Enclosure
Materialaluminium alloy front bezel +High strength cold rolled steel back case
ColorBlack, white, Silver , color can be customized
VESA mounting75×75/100×100 mm
IP-gradeIP67
Operating Environment
Temperature Rangeoperating: -10°C to 60°C, storage :-20°C to 70°C
Relative humidityoperating: 10% to 90% , storage :5% to 90%
Packing Details
Net weight6.8KG
Gross weight9.6KG
Product Dimension56.4*35.6*5.68cm
Packing size67*45*20cm
AccessoriesPower adapter, HDMI/USB cable
Other
Mounting (options)1) provide wall brackets for wall-mounting, VESA100×100mm
2) provide stable metal holder to support the monitor
Warranty1 year warranty

Pictures

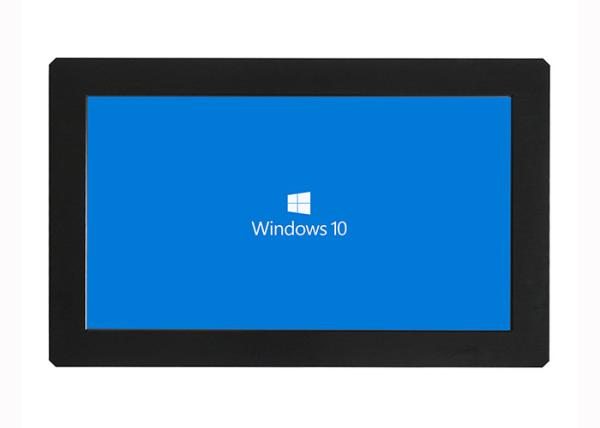

China Water Resistant Industrial Touch Monitor For Automatic Ticketing Machine factory
