Anti Glare Touch Screen Display Monitor , Waterproof LCD Monitor For Vessel Surveillance

Categories Waterproof Touch Monitor
Brand Name: Shinho
Model Number: SL15W IP67
Certification: CE, FCC, ROHS
Place of Origin: Shenzhen, China
MOQ: 1 picec
Price: Negotiable
Payment Terms: T/T, Paypal, L/C, D/A , D/P, Western Union, MoneyGram
Delivery Time: 10-15 working days
Packaging Details: 1 pcs/ctn; G.W.: 4.5kg; Packing size: 47x43x18 cm
Panel size: 15"
Resolution: 1024*768
Brightness: 1500 nits, sunlight readable
Brightness control: Membrane switches on the bezel
IP grade: Full IP67 waterproof
Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

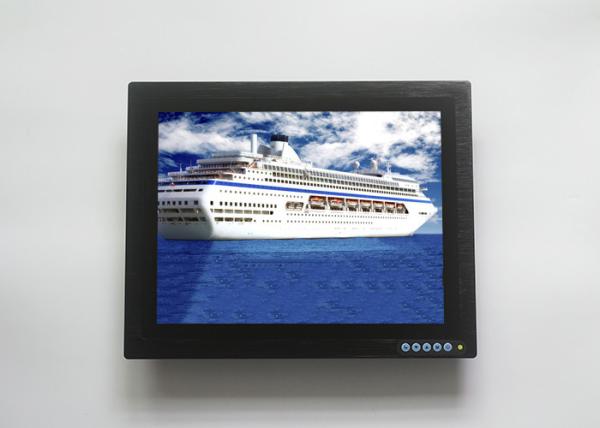

Anti Glare Touch Screen Display Monitor , Waterproof LCD Monitor For Vessel Surveillance

Anti Glare 1500 Nits IP67 Waterproof LCD Monitor With BNC For Vessel Surveillance


Features

1. Robust and durable, all-metal enclosure, sealing design, full IP67 waterproof, Sealed I/O with cable set included.


2. 15'' Industrial LCD panel, high brightness 1500 nits, sunlight readable. Cover with 2MM AG glass for vandalproof.


3. Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.


4. Interfaces: 1* IP67 waterproof DC in +1* IP67 waterproof Video in.


5. High performance mainboard, 7x24 continuous operation.


6. Suitable for installing for outdoor surveillance, Boat surveillance.


Specification


Model:SL15W IP67
LCD panel
Panel size15"
Resolution1024*768
Aspect ratio4:3
Support Color16.7M colors
Brightness (cd/m²)1500 nits, sunlight readable
Contrast ratio700:1
View angle80°/80°/70°/70° (R/L/U/D)
Singal Ports
BNC1xBNC
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OSWindows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V
Power consumption25 W
Enclosure
Materialaluminium alloy front bezel + High strength cold rolled steel back case
ColorBlack, white, Silver, color can be customized
VESA mounting75x75mm / 100x100 mm
IP-gradeFull IP67 waterproof
Operating Environment
Temperature Rangeoperating: -20 to 70°C, storage: -30 to 80°C
Relative humidityoperating: 10% to 90%, storage: 5% to 90%
Packing Details
Net weight3.5kg
Gross weight4.5kg
Product Dimension37.26×29.99×4.22cm
Packing size47x43x18 cm
AccessoriesPower adapter, IP67 waterproof power cord, IP67 waterproof BNC cable
Other
Mounting (options)1) wall brackets for wall-mounting, VESA 100×100 mm
2) stable metal holder to support the monitor
Warranty1 year warranty

Pictures



Drawing



Application


Boat surveillance


Road surveillance


Outdoor CCTV


Factory surveillance


We accept customization, welcome to send us the inquiry, we will provide you the best solution.
