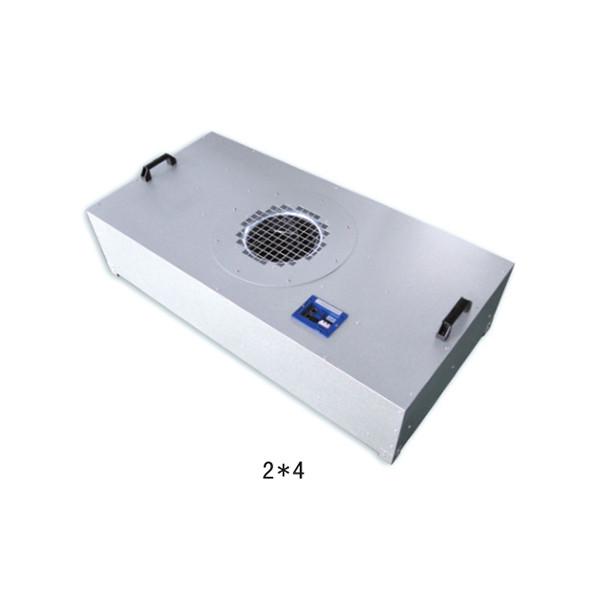

DC Motorized powe 60Hz Portable Hepa Fan Filter Unit Dust Free Room

Categories FFU Fan Filter Unit
Brand Name: alphaclean
Model Number: 4*2 feet
Certification: ce
Place of Origin: china
MOQ: 1 set
Price: negotiation
Payment Terms: L/C, T/T
Supply Ability: 2000sets
Delivery Time: 10 days
Packaging Details: Polywood packing
frame: galvalume
air flow: 2000 m3/h
warranty: 1 year
hepa filter: 99.99% 0.3 um
motor: DC brushless
type: DC FFU
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

DC Motorized powe 60Hz Portable Hepa Fan Filter Unit Dust Free Room

DC Motorized Powe 60Hz Portable Hepa Fan Filter Unit Dust Free Room


DC Motorized Hepa Fan Filter Unit For Dust Free Room


Dust-free air supply fan filter unit series products are mainly used to purify the air into the clean area, in order to meet the requirements of clean environment. It is installed in the clean area or on the T-GRID or on the machine,


Application

Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room, and any other places.


Operating features:

DC-powered unit has the following benefit and advantage

long life span,low noize,small vibration,adjudtable speed. It can control thousand unit together

Advantage

1. Energy saving: EC direct current smooth voltage wave line to save energy

2. Intelligent control:Use the lisa remote automatic control system and intelligent control to achieve

a perfect match of the mechanical components and electronic control systems

3. Easy start and stop:start up current is only 1/5 AC fan, and can start up many fans at the same time

,good braking performance

4. Low heat power: DC fans with high energy efficiency Low heat power, so you can make additional workspace reduce the heat power

Model
Parameters

FFU-1175SD

FFU-87SD

FFU-1175S2D

FFU-725SD

FFU-1175ZD

FFU-87ZD

FFU-1175Z2D

FFU-725ZD

Nominal Volume (m3/h)

1080

1650

2200

1700

Noise Db(A)

48-54 dbA

50-56dbA

52-58dbA

50-56dbA

Hepa filter efficiency

≥99.99% ~ 99.9995%( @≥0.3μm)

The Out Power (W)

90

190

255

190

Casing size L*W*H(mm)

1175*575*320

875*1175*400

1175*1175*400

725*1475*330

Hepa Filter (mm)

1170*575*70

875*1175*70

1170*1170*70

720*1470*70

Pre Filters (mm)

as required

power

AC 220 50 Hz or 60 Hz single phase

speed control

Stepless

operative mode

the power indicator switch operation and failure indicator

overload protection

Double overload protection with motor and controller switch

power access

Quick clip terminal board or male/female connector or power line
