Class1000 Clean Room 110V 50HZ FFU Fan Filter Unit Three Speed Control

Categories FFU Fan Filter Unit
Brand Name: alphaclean
Model Number: 4*2 feet
Certification: ce
Place of Origin: china
MOQ: 1 set
Price: negotiation
Payment Terms: L/C, T/T
Supply Ability: 2000sets
Delivery Time: 10 days
Packaging Details: Polywood packing
frame: galvalume
air flow: 1200 m3/h
power: AC220V/110V±10%,single phase ,50Hz~60HZ
hepa filter: 99.99% 0.3 um
product: Fan filter unit
air speed: 0.45 m/s +-20%
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

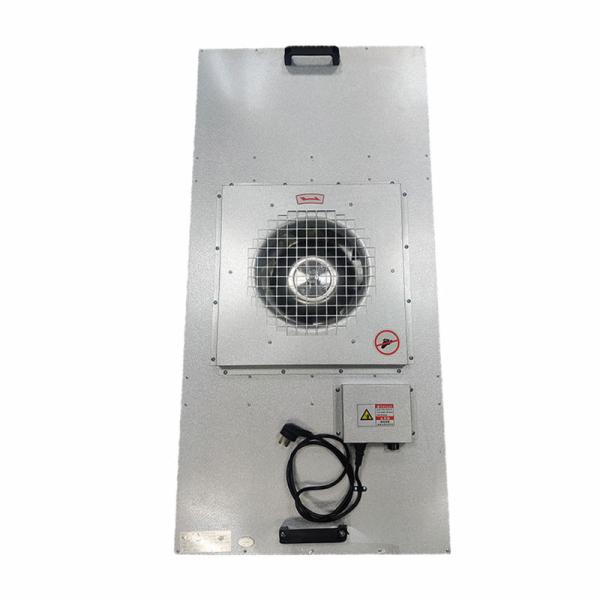

Class1000 Clean Room 110V 50HZ FFU Fan Filter Unit Three Speed Control

Class1000 Clean Room 110V 50HZ FFU Fan Filter Unit Three Speed Control


AC 220V 50 HZ FFU / BFU Intake Fan Filter Assembly For Clean Room


FFU fan filter unit is mainly used for purify the air into the clean area to make sure it can reach requirement cleanliness class,
Uniform air wind blow out at a speed of 0.45m/s with adjustable speed ±20%..

  • Suitable for Class 1-1000 clean room
  • Simple and light design,low height ,which can save space and is easily for installation and daily maintenance.
  • Unique inlet air channel ,Low vibration and noise
  • Uniform and steady air flow
  • High efficiency motor ,three speed control ,low current consumption and electricity saving

Model
Parameters
FFU-1175SFFU-57SFFU-87SFFU-1175S2FFU-725S
FFU-1175ZFFU-57ZFFU-87ZFFU-1175Z2FFU-725Z
Nominal Volume (m3/h)1080530165022001700
Noise Db(A)48-54 dbA48-54dbA50-56dbA52-58dbA50-56dbA
Hepa filter efficiency≥99.99% ~ 99.9995%( @≥0.3μm)
PowerAC220V/110V±10%,single phase ,50Hz~60HZ
The Out Power (W)150150190255190
Casing size L*W*H(mm)1175*575*277575*575*262875*1175*3501175*1175*350725*1475*345
Hepa Filter (mm)1170*575*70575*575*70875*1175*701170*1170*70720*1470*70
Pre Filters (mm)as required
powerAC 110 or 220 50 Hz or 60 Hz single phase
speed controlthree speed control (manual or computer group control)
operative modethe power indicator switch operation and failure indicator
overload protectionDouble overload protection with motor and controller switch
power accesssocket or terminal block
