| Categories | Conductor Stringing Blocks |
|---|---|
| Brand Name: | Linkai |
| Model Number: | 660 mm |
| Certification: | ISO CE |
| Place of Origin: | Ningbo china |
| MOQ: | 10sets |
| Price: | get the latest |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 3000sets/month |
| Delivery Time: | 3-5 work days |
| Packaging Details: | std exported packing |
| Model: | 660 MM stringing block |
| Sheave: | 1,3,5 |
| Rated load: | 60KN |
| Weight: | 150kg |
| Material: | MC nylon sheave |
| Item: | Stringing block |
| Company Info. |
| Ningbo Lingkai Electric Power Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

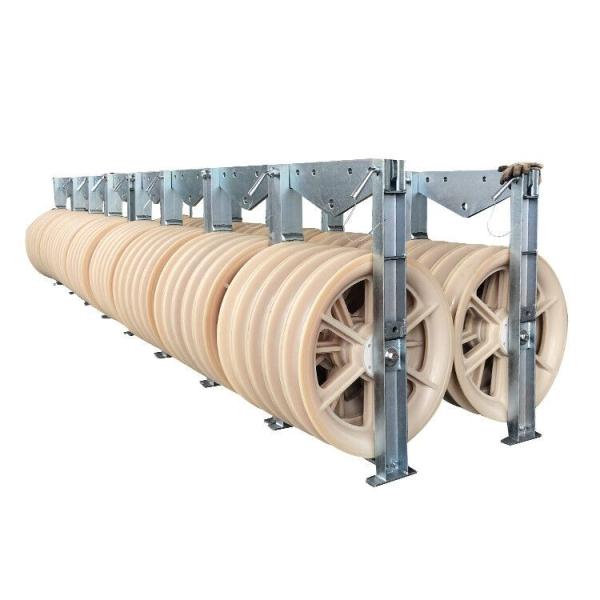

660 100 Large Cable Pulley Wheel Conductor Stringing Accessories
Technical Data
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
| 10122 | SHS660 | 3 | 40 | 100 | Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124/10124A | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 86 | Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127/10127A | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
| 10128/10128A | SHWQN660 | 5 | 60 | 110 | |
| 10130 | SHQ660A | 7 | 75 | 190 | Middle :cast steel sheave Conductor : MC nylon sheave |
Introduction:
Stringing pulley block is a special equipment for supporting various conductors and ground wires in overhead transmission line stringing construction, which plays a supporting role for ground wires. It does not damage wires and has small friction coefficient. It can pass through traction plates, connectors and pressure nozzles smoothly.
Application:
Suitable for laying-out construction of overhead transmission lines with four split conductors.
Description:
1. We manufacture a lot of models for different uses in the overhead transmission line construction.
2. The stringing pulleys are used to support conductors, OPGW, ADSS, communication lines, etc.
3. The sheave of the pulley blocks are made from high strength MC nylon, or aluminum materials, and the frame of blocks are made of galvanized steel. The lateral ones are mounted on ball bearings.
4. Cast steel wheel or MC nylon wheel can be selected for intermediate wheel according to customer's requirement; Rubber pressing aluminium wheel, rubber pressing MC nylon wheel or MC nylon wheel can be selected for conductor wheel.
Remarks:
All kinds of pulley blocks can be manufactured according to the customers's requirements.
If any interested, please feel free to contact with us for more information, and we will try our best to comply with your requirements.
|
