| Categories | Conductor Stringing Blocks |
|---|---|
| Brand Name: | Linkai |
| Model Number: | 660 mm |
| Certification: | ISO CE |
| Place of Origin: | Ningbo china |
| MOQ: | 10sets |
| Price: | get the latest |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 3000sets/month |
| Delivery Time: | 3-5 work days |
| Packaging Details: | std exported packing |
| Model: | 660 MM stringing block |
| Sheave: | 1,3,5 |
| Rated load: | 60KN |
| Weight: | 150kg |
| Material: | MC nylon sheave |
| Item: | Stringing block |
| Company Info. |
| Ningbo Lingkai Electric Power Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

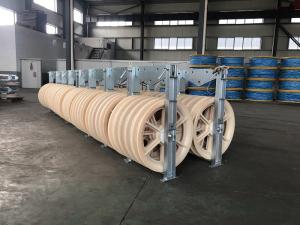

660 x100 Three nylon sheave pulley block pilot bundled conductor stringing block for transmission line
Technical Data
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
| 10122 | SHS660 | 3 | 40 | 100 | Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124/10124A | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 86 | Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127/10127A | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
| 10128/10128A | SHWQN660 | 5 | 60 | 110 | |
| 10130 | SHQ660A | 7 | 75 | 190 | Middle :cast steel sheave Conductor : MC nylon sheave |
Apply to paying off single conductor, twin bundled conductor or four bundled conductor on overhead transmission line construction.
Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner or strengther nylon wheel with PU liner.
660 mm stringing blocks
Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort. 1.Maximum suitable conductor ACSR500 2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm) 3.Sheave dimension Φ660×Φ560×110(mm) can be customized
|
