| Brand Name: | Chancer |
| Model Number: | FY-888 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1SET |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100sets per year |
| Delivery Time: | 40 working days after getting 30% deposit |
| Packaging Details: | seaworthy package |
| Paper Rope Length: | 352mm |
| Paper rope length: | 100mm |
| Bag height: | 250-450mm |
| Bag width: | 250-400mm |
| Type: | Flat Paper handle pasting machine |
| Weight: | 4900KG |
| Dimension(l*w*h): | L7000*W1600*H1500mm |
| Warranty: | One Year |
| After-sales service provided: | Engineers available to service machinery overseas |
| Power(w): | 10KW |
| Material: | paper |
| Company Info. |
| RUIAN CHANCER MACHINERY FACTORY |
| View Contact Details |
| Product List |
Automatic square bottom flat rope paper handle pasting machine
Introduction:
This machine is mainly supporting semi-automatic paper bag machines,Through a complex process, it makes four cutted rolls of paper which have been cut into flat rope and flat handle once shaping,It can produce the flat paper handle on line ,and stick the handle on the bag on line too.
the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
Technical Data
| Overall dimension | L7000*W1600*H1500mm |
| Motor brand | Longbang geared motor |
| Total power | 10KW,50HZ |
| Servo motor brand | Siemens |
| Servo motor power | 750W one group |
| PIC programming brand | Siemens |
| Hot melt machine brand | Huangshang Taiwan |
| Mechanical arm | HIWIN Taiwan |
| Handle Spacing | 84mm |
| Paper Rope Width | 12mm |
| Paper Rope Height | 100mm |
| Paper Width | 40mm |
| Paper Length | 152mm |
| Paper Rope Length | 352mm |
| Paper thickness | 80-140g |
| Bag width | 250-400mm |
| Bag height | 250-450mm |
| Top opening size over 130mm | (Bag Width minus the width of folding ) |
| Production speed | 30-35pcs/min |

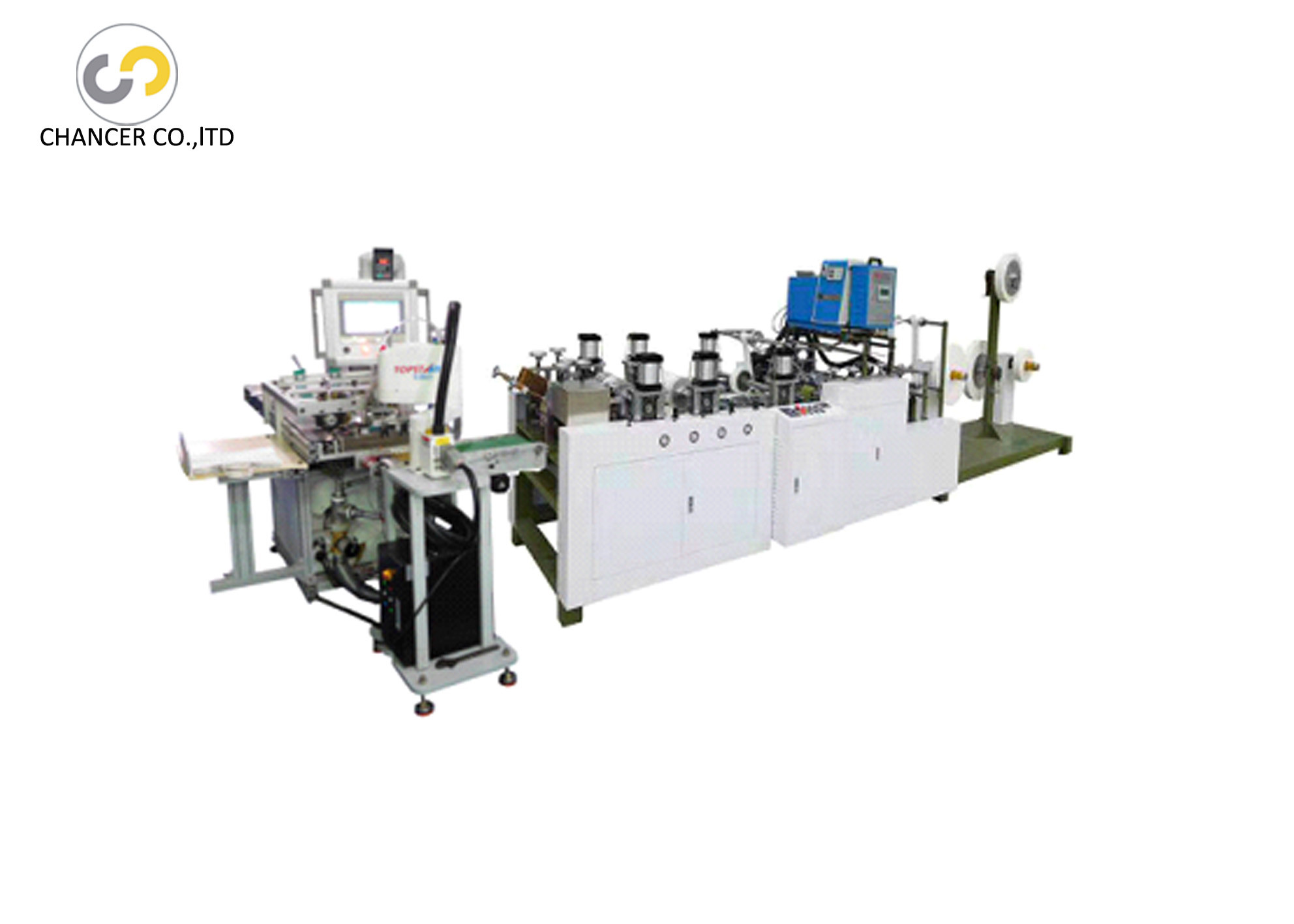

Machine picture:
Sample:
|
