150pcs/minute Take away square bottom paper bag machine with multiple printer inline

150pcs/minute Roll feeding take away square bottom type paper bag machine prince with printer inline

Introduction: Paper Bag Making machine can produce the square bottom paper bag in conjunction with overseas advanced technology.

The machine has many advantages such as high speed,high productive efficiency and wide-rang adjustment. It is an ideal machine for producing Square Bottom Shopping bags to pack gifts, cosmetic, etc.

• Adjustable roll to square bottom bag making machine
• Introduce In-touch screen human-machine interface, easy for correction and fine adjustment. Alarm and working status can be displayed in screen on-line, easy for operation and maintenance.
• Equipped with German Siemens PLC for centralized control system and SICK photocell for correction, tracking the printed material accurately, minimize the adjustment and preset time, increase the production efficiency.
• Human oriented security protection, whole housing design, ensure the safety of operator.
• Shaft less hydraulic material loading system with chuck, hydraulic up/down system
• Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter, minimize the adjustment time for web alignment.
• High speed oriented design ensure successful of production: within the suitable paper range, production capacity can reach 150~200pics/min, even higher. Increased the unit production capacity and higher profit.
• Original German SIEMENS electric system, ensure better stability and reliability; perfect after sale service, trouble free for customer.

*Speed will be variable due to different glue quality and operator’s skill.

* Bag Dimension, Adhesive Quality, Operator Knowledge, % Moisture, Type and Basis weight of Paper Can affect Machine Speeds.

Main specification:

Paper tube length 270-510mm

Paper Bag width 100-280mm

Bottom width 60-160mm

Paper weight 50-160gsm

speed: 150pcs/min
power:15kw
total weight:10000kg
machine dimension:8600 × 2500 × 1800 mm

Contacts:

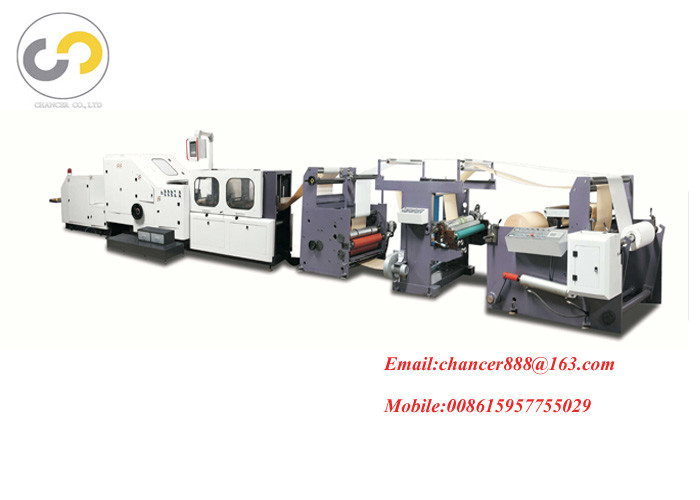

Machine picture:

Bag sample picture:
