6M Aluminum Alloy Mobile Surveillance Trailers Security Solution Rotor PTZ Camera Lighting Install

Categories Mobile Sentry Security Trailer
Brand Name: Okaf
Model Number: OK-TCTY6SJ
Certification: CE/FCC/RoHS
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: T/T, Paypal, Western Union,, L/C, MoneyGram
Supply Ability: 2500pcs per month
Delivery Time: Negotiable
Packaging Details: Standard carton
Material: Aluminum Alloy
Warranty: 1 year
High: 6m (3-20m can be customized)
security: Arbitrary height self - lock no - time growth of height phenomenon
The lifting speed: The average speed is 4m/min
Horizontal rotation angle: 380°
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

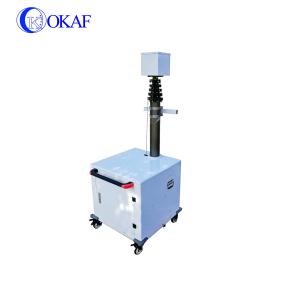

6M Aluminum Alloy Mobile Surveillance Trailers Security Solution Rotor PTZ Camera Lighting Install

Rapid Deployment Security Solution Rotor PTZ Camera Lighting Install 6M Aluminum Alloy


Product description:


1. The PTZ rotor is easy to install on the lifting mast.
2. The PTZ rotor can also be equipped with other items such as LED lights, and the brightness can also illuminate the scene.
3. Easy to operate, any one of the staff can operate.
4. The workman can control the pan/tilt rotor through the full-featured remote control to rotate the light to where it is needed.
5. The staff can control the 360-degree rotation of the gimbal rotor through remote control.


6. No need to remove, with the installation with the use, simple operation

7.Automatic mast lifting, high and low distance coverage, eliminate monitoring blind area

8.Powerful endurance, single charge, the system can run for 5-7 days

9.Standby charging mode, realize continuous and uninterrupted work


Product parameters:



The car body litre fall pole number

Car body colorWhite (customizable)
Camera height6m (3-20m can be customized)
The battery numberFour groups
Battery capacity48V·36Ah
Battery typeLead-acid battery
Solar panel3*(100W 36v)
AC 220 v / 50 hz power supplysupport
Battery life96h
projectTest conditions
Lifting height6 meters (customized according to customer requirements)
The wind resistanceForce 8 wind works normally force 12 wind does not damage
Low temperature storage-55°
Work in low temperature-40°
High temperature storage70 degrees
High temperature work55 degrees
Wet degreeLess than 90% (temperature: 25°)
Drench the rainIntensity 6mm/min duration is 1h
The rated loadLifting hand force ≤120N
The lifting speedThe average speed is 4m/min
securityArbitrary height self - lock no - time growth of height phenomenon

PTZ Rotor

System working voltageDC12V(can be made 24V)
LED light working voltageDC12V
Control wayRemote control and RS485
Light power120W*2(conventional)
Horizontal and vertical rotation speed6r/min
LED sizeLUx45mil 120-130Lm/W
LED Luminous fluxMax. 38400(lumen)
Tube brandGREE
Horizontal rotation angle380°

Rotor Size:
