| Categories | Mobile Sentry Security Trailer |
|---|---|
| Brand Name: | OKAF |
| Model Number: | OK-TC05SJ02 |
| Certification: | CE/FCC/RoHS |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Packaging Details: | Standard carton |
| High temperature work: | 55 degrees |
| Low temperature work: | - 40 drgree |
| Humidity: | Less than 90% (temperature 25°) |
| Rain shower: | Low temperature work -40° |
| Video input: | 4-ch network 1080P, aviation head interface |
| Audio input: | 4-ch, aviation head interface |
| Chassis, shock absorption: | Independent suspension |
| Power plug: | European standard 7 hole plug |

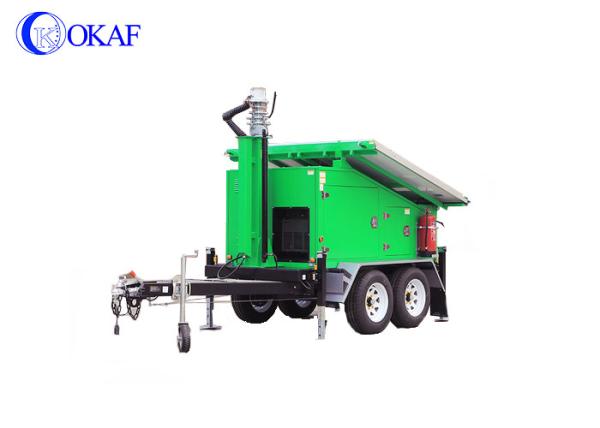

Large Mobile Forensics Trailer Outdoor High Bar Lighting System
Product feature:
The control system is integrated, the control switch, the control screen, and the indicating instrument are all integrated on the same panel to facilitate the operation and real-time monitoring of the operator.
Fully automatic operation design, engine group start, pole up and down, hydraulic feet retractable, lamp switch all independent and automatic control, easy and fast operation.
● has excellent waterproof performance
The protection level reaches IP65, which is convenient and quick to move. It has bidirectional configuration of output and input, so that the lighthouse can be used as a generator for external equipment, and it can also be connected to commercial power.
● Safe and reliable, convenient transportation
The four hydraulic legs have a large unfolded area and strong supporting force. In addition, the advanced integral weight design of the whole machine has good wind resistance and can ensure reliable operation under the strong winds of Class 8.
● A variety of movement methods can be used trailer system, can also be used for forklifts, cranes for movement and transportation.
| Camera | |||
| multiple | 30 times | no | |
| spinning speed | Horizontal preset speed | no | |
| Horizontal angle | Around 360°, up and down +0°～-90° | manual adjustment | |
| Infrared distance | 80 meter | 30 meter | |
| Network Interface | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) | ||
| Network protocol | IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP | ||
| Dual stream | SUPPORT | ||
| Video output | BNC AND RJ45DOUBLE OUTPUT | ||
| Video recorder parameter | |||
| Video input | 4-ch network 1080P, aviation head interface, | ||
| Video output | 1 composite video output + 1 VGA output, 1.0Vp-p, 75Ω | ||
| Preview function | Single, 4-screen mosaic preview, support for manual/event triggered full-screen display | ||
| Video resolution | Supports 1080P, 720P, D1, HD1, CIF optional, supports up to 4 channels of 1080P. | ||
| Audio input | 4-ch, aviation head interface | ||
| Telescopic mast | |||
| project | Test conditions | ||
| Lifter height | 6 meters (customized according to customer requirements) | ||
| Wind resistance | Class 8 winds work normally Class 12 winds are not destroyed | ||
| Low temperature storage | -55° | ||
| Low temperature work | -40° | ||
| High temperature storage | 70 degree | ||
| High temperature work | 55 degree | ||
| Humidity | Less than 90% (temperature 25°) | ||
| Rain shower | Intensity 6mm/min Duration 1h | ||
| Rated load | Lifting hand force ≤120N | ||
| Lifting speed | The average speed 4m/min | ||
| safety | Any height self-locking | ||
| Trailer parameter | |||
| Braking System | Electromagnetic brake | ||
| Chassis, shock absorption | Independent suspension | ||
| Signal light | Brake, steering, driving | ||
| Tires | High-speed tires, speed 120km/h | ||
| Reflective stickers | Have | ||
| Power plug | European standard 7 hole plug | ||
| Trailer tractor | Off-road square head (according to vehicle models) | ||
| Lithium battery | 4×200AH○ | ||
| Inverter | have | ||
| Power socket, fuse box | have | ||
| Body size | 2800*1700*1650mm | ||
| Chassis height from the ground | 480mm | ||
| Cabinet | 1600*1200*1100mm | ||
| Trailer arm height adjustable | 450mm,500mm ,550mm ,600mm ,650mm | ||
| Trailer ball specifications | European regulations 2-5/16 inch | ||
| Self weight | 500kg | ||
| load | 400g | ||
|
