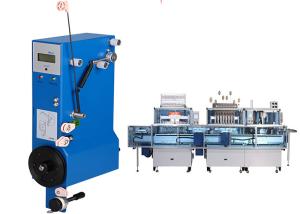

Coil Winding Machine Servo Tensioner High Torque In Large Tension Range

0.02-0.80mm Fine Wire Coil Winding Tensioner Servo Tensoner SF Series with 3-2000g tension

Description

The servo wire tension unit uses the wire feeding method for high speed winding control.

by replacing the spring to change its tension value, this product comes with tension feedback

stabilization system that can automatically tension stable equilibrium and with particular stable

tension and easy to adjust.

The feedback system will monitor the tension and make changes to the feeding speed to maintain

the set tension level even during rapid acceleration and to prevent any sudden change in the tension when winding non-round shaped coils.

Detailes of Coil Winding Tensioner Servo Tensioner

Specification :

Main parameters

Dimensional drawing

Product Structure

Picture Display:

Remark:

1.The standard type for wire speed is 12m/s, If any special requirement, please contact us to customized.

2.In the all series of servo tensioner, please confirm output of maximum tension scope. Such as: You need tension range is 1-100g, that can select SF100. According to definition of type. Kindly confirm if need properties of tension attenuator or display tension function and mounted position of the tension wheel. If no need other function,That can choose SF100.

Hangzhou Qianhe Precision Machinery Co., Ltd. was established in 2006, It is a national High-tech enterprise which specializing in the design and production of all kinds of automatic winding machine accessories. There three core advantages: 1. Servo tensioner and tension measurement ; 2.Air Nipper and winding fixture ; 3.Hard Alloy Winding Nozzle / guide needle .

For more than ten years, we hold the tenet of “integrity, pragmatism, innovation, and do global customer satisfaction”, and applies advanced quality management standards to the whole process of product realization, striving to create “high-hard and high- fine and more Excellent products.The three series of products have been widely used in the advanced automatic CNC winding equipment at home and abroad, and won the praise of the market and customers.

We are a national high- tech company ,with a mature R&D and management team ( obtained a number of patent certificates).with a group of skilled production technology backbone.the main management staff have more than 16 years of work experience in this field .We regard "Conscience, Ingenuity and Innovation" as the core of corporate culture, and promise to provide our customers with the most sincere, professional and quality services.
