ARJ11B-MESBQ-A-B-EMU2 Ethernet Single Port 10/100 Magnetic RJ45 Connector

ARJ11B-MESBQ-A-B-EMU2 Ethernet Single Port 10/100 Magnetic RJ45 Connector

ARJ11B-MESBQ-A-B-EMU2 Ethernet Single Port 10/100 Magnetic RJ45 Connector
ARJ11B-MESBQ-A-B-EMU2 Ethernet Single Port 10/100 Magnetic RJ45 Connector
Categories Magnetic RJ45 Jack
Brand Name: LINK-PP
Model Number: ARJ11B-MESBQ-A-B-EMU2
Certification: UL,ROHS,Reach,ISO
Place of Origin: China
MOQ: 50/500/1000
Price: Supportive
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Delivery Time: Stock
Packaging Details: 50pcs/tray,1200pcs/carton
Specifications: ARJ11B-MESBQ-A-B-EMU2
P-N: LPJxxxNL
Application: Networking
Termination: Solder
EMI Finger: No
Contact Termination Type: Side Entry
Contact Now
Company Info.
LINK-PP INT'L TECHNOLOGY CO., LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

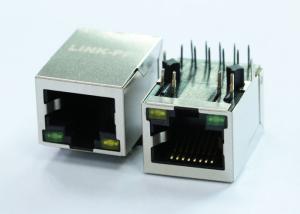

ARJ11B-MESBQ-A-B-EMU2 Ethernet Single Port 10/100 Magnetic RJ45 Connector

ARJ11B-MESBQ-A-B-EMU2 Ethernet Single Port 10/100 Magnetic RJ45 Connector

1. RJ45 10/100 Base-T Jack with Magnetic Module
2. 1X1 Tab Down Jack with 4 Cores
3. Contact Area : Gold Flash
4. RJ45 With LEDs , Meeting IEEE 802.3ab

5. Operating Temperature: - 0°C to + 70°C
Storage Temperature: - 40°C to +85°C

6. Hipot : 1500Vrms MIN

Description
Part Number
ARJ11B-MESBQ-A-B-EMU2
Cross Part NumberLPJxxxNL
Application-LAN
ETHERNET(NON POE)
AutomDX
YES
Bst Circuit
YES
Configuration RX
T,C
Configuration TX
T,C
Contact Mating Area Plating
GOLD 6u"/15u"/30u"
Cores Per Port
4
Diodes
NO DIODES
LED Option
WITH LEDS
Latch
Down
Number of Ports
Single Port
PCB
FR4
PCB Mount Angle
SIDE ENTRY
PCB Retaining Post
T POST
Pin Type
THT SOLDER
RoHS Compliant
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search
YES
Shield EMI Tabs
WITH
Speed
10/100 BASE-T
Temperature
0 TO 70°C / -40 TO 85°C
Turns Ratio RX
1CT:1
Turns Ratio TX
1CT:1
Applications
1. Air Gages
2. Bus Systems
3. Cable Assembly Services
4. Data Acquisition Computer Boards
Competitive Advantage
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
