HFJT1-1G16C3-L12RL , LPJK0036AHNL Magnetic RJ45 Jack Gigabit Data Port

• 1x G_Ethernet (10/100/1000) : LPJK0036AHNL , Side Entry Rj45 Magnetics

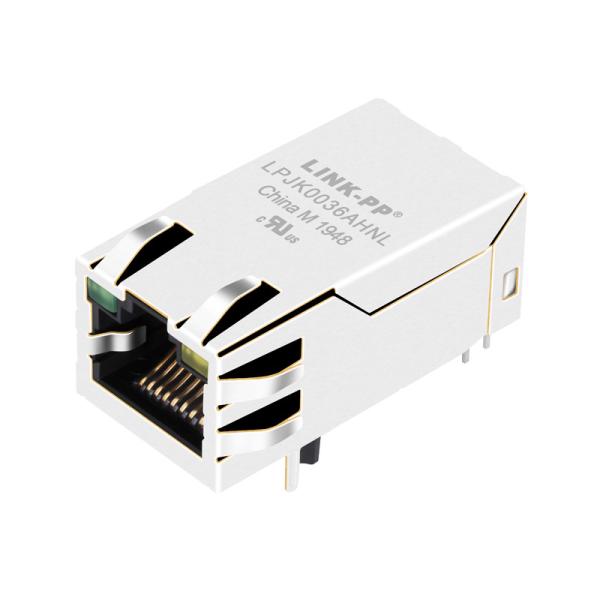

• 90 Degree Rj45 With Integrated Magnetics HFJT1-1G16C3-L12RL
• Green- Yellow LED Indicator 1x 10/100/1000 Mbps Ethernet
• 0℃ TO 70℃ : LPJK0036AHNL
• -40 TO +85℃: LPJK4036AHNL
• 350uH min OCL at 8mA DC Bias
• 6μ” Gold Plating (min) on Contacts
• Full Temp Range ,100% Electrical Testing
• 1500Vrms Hi-Pot

Turn Ratio(±2%):	TX=1CT:1CT RX=1CT:CT
Inductance OCL	350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss	-1.0dB MAX @ 1-65MHz
Return Loss	-20dB MIN @ 1-10MHz
	-16dB MIN @ 10-30MHz
	-12dB MIN @ 30-60MHz
	-10dB MIN @ 60-100MHz
Cross talk	-40dB MIN @ 1-30MHz
	-35dB MIN @ 30-60MHz
	-30dB MIN @ 60-100MHz
Common Mode Rejection	-30dB MIN @ 1-50MHz
	-20dB MIN @ 50-150MHz
Hipot Test	1500Vrms MIN
Operating Temperature	-40℃ TO 85℃
