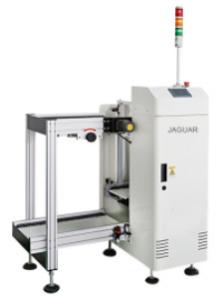

JB-250 Loader Machine Size(L*W*H):1100*780*1200±30mm alloy guide rails

JB-250 Loader Machine Size(L*W*H):1100*780*1200±30mm alloy guide rails

1) Machine Size(L*W*H):1100*780*1200±30mm

2) Special Aluminum alloy guide rails and rubber belt

3) Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4) Transport motor used 15W stable speed motor made in Taiwan

5) Pneumatic PCB clamping structure

6) Magazine size(L*W*H): 355*320*565mm

7) PCB size(L*W):330*250mm

8) Direction:R-L/L-R

9) Adjustable Lifting distance:10,20,30,and 40mm

10) Transport high: 920±30mm

11) Programmable Mitsubishi PLC and controller

12) PCB Automatic loading to conveyor

13) Operation Control system: Touch Panel controlled interface

14) Pneumatic Compone(Push plate cylinder with a screw adjustment positionnt)

15) Power: 220V 50HZ

16) Air pressure: 0.4-0.6MPa

17) the max store PCB Quantity:50pcs

18) One set Electronic control box
