SINOLIFT E200T Light-Duty Electric Work Positioner with Interchangeable Attachments

Categories Stacker
Model Number: E200T
Application: Industrial
MOQ: 1 set
Delivery Time: 30 days
Load Capacity: 200kg
Certification: CE
Warranty: 1 year
Packaging Details: Sandard Export Package
Payment Terms: L/C, D/P, T/T, Western Union
Front Swivel Caster Nylon: Ø50 x 35mm
Brand Name: Sinolift
Product Name: E200T Light-Duty Electric Work Positioner with Interchangeable Attachments
Place of Origin: China
After Service: On-line service,Spare parts
Price: Negotiation
Overall Height Extended: 2540mm
Supply Ability: 1000 sets/mouth
Rear Wheel PU: Ø125 x 40mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SINOLIFT E200T Light-Duty Electric Work Positioner with Interchangeable Attachments

Product Description:

Designed to simplify everyday lifting and positioning of light loads, the E200T series provides a compact solution for work areas where space and flexibility matter. Operators can push the unit into place and raise or lower loads electrically using simple push-button controls, reducing manual lifting effort. Interchangeable attachments, including a platform, adjustable forks, a tote box, and an expanding roll turner, allow the equipment to adapt to different materials and workflows. With custom configurations available, it is suited to warehouses, workshops, packing stations, and light industrial production areas.


Key Features:

  1. Effort-Saving Electric Lifting: Push-button lift and lower controls make repetitive positioning easier without requiring manual lifting of the load.

  2. Compact, Easy-to-Maneuver Design: A narrow frame, swivel casters, and an assist handle help operators move and position the unit in tight work areas.

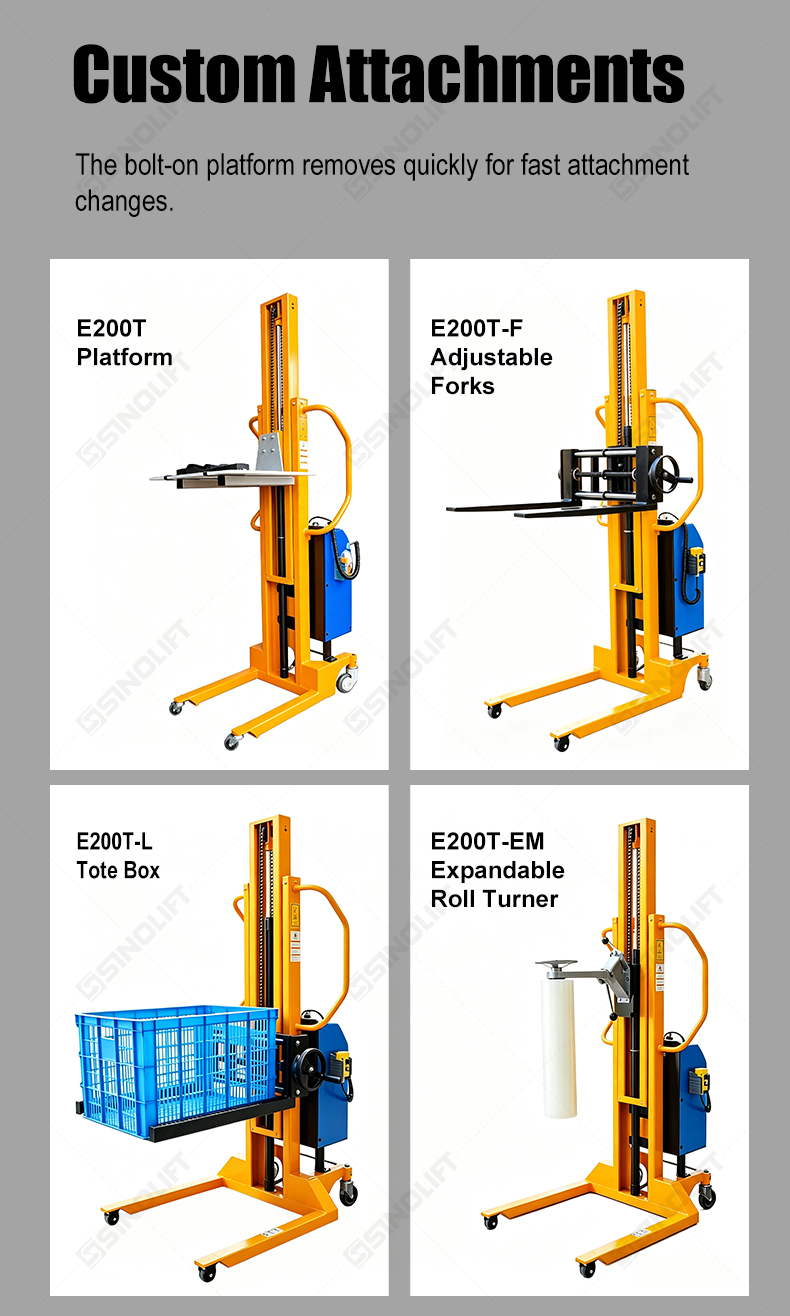

  3. Interchangeable Attachments: Bolt-on attachment options include a platform, adjustable forks, tote box, and expanding roll turner for different handling tasks.

  4. Reinforced Mast Structure: A C-channel steel mast and reinforced construction provide reliable support for light-duty lifting operations.

  5. Linked Wheel Braking: A foot-operated linked brake secures both rear wheels together when the work positioner is parked for handling.

  6. Simple, Operator-Friendly Controls: Clearly arranged lift and lower buttons support straightforward operation and more controlled load positioning.

  7. Custom Configurations Available: Attachments and working requirements can be reviewed to create a practical solution for your load shape and workspace.


Application:

The E200T is suitable for light-duty lifting and positioning in warehouses, workshops, packing stations, and light industrial production areas. Typical applications include raising cartons and components to convenient working heights, supplying materials to assembly stations, and handling small parts with a tote box. Platform and adjustable fork attachments accommodate different load support requirements, while the expanding roll turner supports handling and turning compatible rolls. Its compact, manually pushed design makes it practical for short-distance transfers between nearby workstations and positioning tasks in space-constrained work areas.


Specification

Unit

E200T Platform

E200T-F Forks

E200T-L Tote

E200T-EM Turner

E200T-48U

Load Capacity

kg

200

200

200

200

200

Min. Platform/Fork Height

mm

90

70

15

115 horiz. / 285 vert.

85

Max. Platform/Fork Height

mm

2250

2100

2100

2000 horiz. / 2100 vert.

2250

Platform Size L x W

mm

605 x 475

-

-

-

605 x 475

Fork Length

mm

-

642

650

-

-

Adjustable Fork Range

mm

-

200-560

100-482

-

-

Expanding Shaft Length

mm

-

-

-

270

-

Compatible Roll Core I.D.

mm

-

-

-

Ø74-Ø78

-

Overall Height Extended

mm

2540

2540

2540

2540

2540

Front Swivel Caster Nylon

mm

Ø50 x 35

Ø50 x 35

Ø50 x 35

Ø50 x 35

Ø50 x 35

Rear Wheel PU

mm

Ø125 x 40

Ø125 x 40

Ø125 x 40

Ø125 x 40

Ø100 x 40

Hydraulic Power Unit

kW

0.8

0.8

0.8

0.8

0.8

Battery

V/Ah

12/60

12/60

12/60

12/60

12/60

Min. Turning Radius

mm

877.5

1000

1045

1045

877.5

Overall Size Stowed

mm

880 x 605 x 1455

1160 x 808 x 1470

1170 x 808 x 1470

1050 x 700 x 1470

880 x 605 x 1455

Net Weight

kg

111

127

127

122

116
