Ceramic Material Pressure Sensor with 0-200kpa~5Mpa Range and Analog Output HT-TC Sensor

Categories Pressure Transmitter Sensor
Output Signal: Analog Type
Repeatability: 0.2%F.S
Impedance: 11KΩ±30%
Output: mv
Hysteresis: 0.3%F.S
Material: Ceramics
Output Sensitivity: ≥2mV/V
Certification: ISO
MOQ: 5
Power: 5-10VDC
Specification: 19mm
Range: 0-200kpa~5Mpa
NonLinearity: ±0.3%F.S
Wiring Type: Four-Wire
Price: 3.5
Operating Temperature: -40 ~ + 135°C
IP Rating: IP65
Measuring Medium: Gas and Liquid
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Ceramic Material Pressure Sensor with 0-200kpa~5Mpa Range and Analog Output HT-TC Sensor

HT-TC Ceramic Pressure Sensor
5Vdc power supply pressure measuring sensor core liquid sensor with ceramic material. The HT-TC ceramic piezoresistive pressure sensor is an ideal pressure sensing element that can be packaged or directly integrated with equipment control circuits.
Product Features
  • Excellent long-term stability
  • Effective temperature compensation
  • Operating temperature range: -40°C to +135°C
  • Can directly contact the measured medium
  • Competitive pricing
Applications
Automotive, industrial automation, water pumps, petroleum, chemical industry, pneumatic equipment, hydraulic equipment, air conditioning, air compressors, and more.
Electrical Performance
  • Power Supply: ≤26VDC (Typical: 5VDC)
  • Impedance: 11KΩ ±30%
  • Electrical Connection: 100mm high-temperature wire
Performance Parameters
ParameterValueUnit
Measurement Range2bar, 5bar, 10bar, 20bar, 30bar, 50bar, 100bar-
NonLinearity±0.3%F.S
Repeatability0.2%F.S
Hysteresis0.3%F.S
Output≥2mV/VmV/V
Zero Offset Temp. Drift≤±0.03%FS/ºC
Full Scale Temp. Drift≤±0.03%FS/ºC
Operating Temperature-30~120ºC

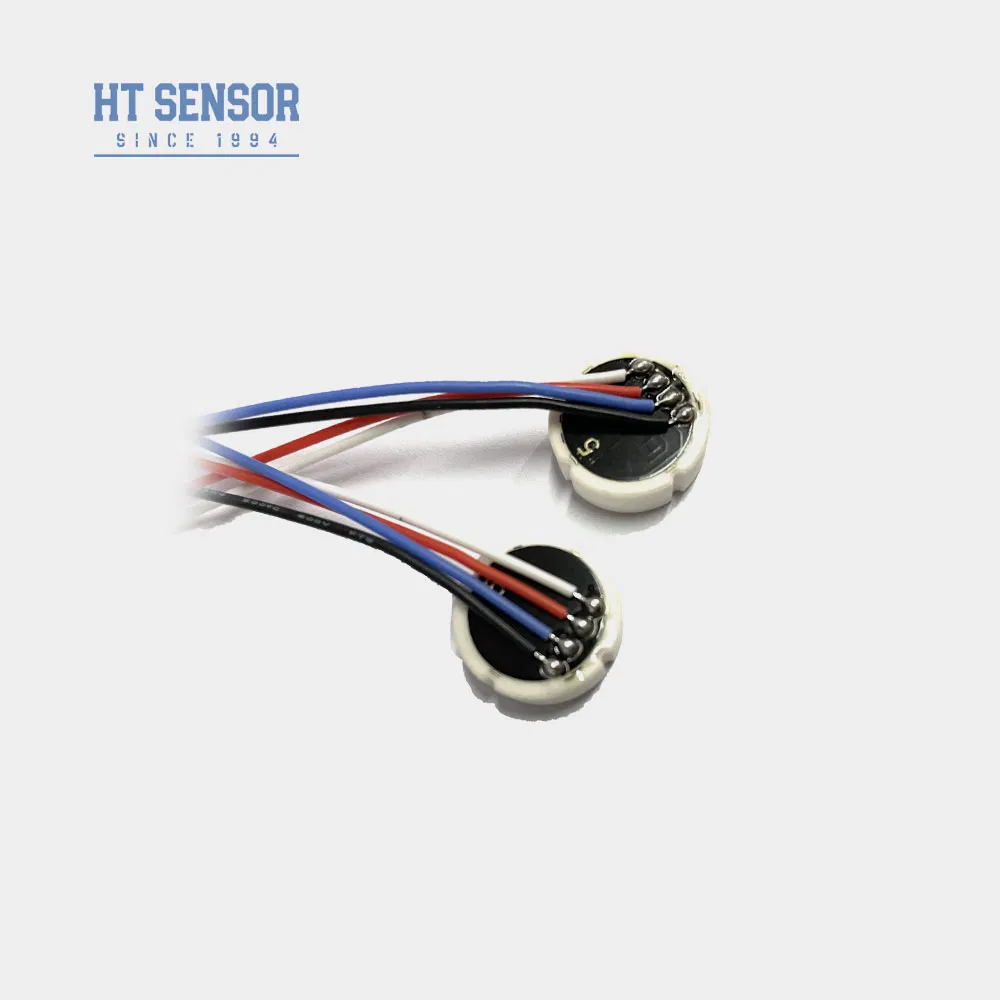

HT-TC Ceramic Pressure Sensor product image HT-TC Ceramic Pressure Sensor technical diagram
Outline Construction
HT-TC Ceramic Pressure Sensor outline construction diagram
Ordering & Assembly Guidelines
  • Ensure proper fit between core size and transmitter housing for required airtightness
  • Align housing vertically and apply even pressure during assembly to avoid damage
  • Provide special instructions if measured medium is incompatible with 316L materials
  • Avoid pressing sensor diaphragm with hands or sharp objects
  • Keep pressure port open to atmosphere and prevent entry of contaminants
  • Refer to actual core label for pin lead configurations
Company Information
Manufacturing facility overview Quality control process Production equipment Technical team at work Finished products inventory
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large-scale orders.
Q: What's the typical delivery period?
A: 5-8 working days for standard models. Customized products may vary.
Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
Q: What is the warranty of your products? And after-sales service?
A: 24-month warranty after shipment. After-sales support responds within 24 hours with remote PC network instruction available.
