Air Pneumatic Differential Pressure Transmitter for HVAC Application DP Transducer Wind Sensor

Categories Differential Pressure Transmitter
IP Rating: IP65
Weight: ~0.25kg
Production Capacity: 2000PCS/Year
Price: US $28-37 / Piece
Measuring Medium: Gas
Customized: Customized
Trademark: HT sensor
Protection Rating: IP65
Transport Package: Standard Export Packing with Carton
Model NO.: BP93420D-I
Certification: ISO
Housing Material: Aluminum
Specification: Silicon pressure sensor
HS Code: 9026201090
Origin: Baoji, China
Accuracy Grade: 0.5G
Pressure range: 0-500PA, -200kpa,
MOQ: 1 Piece
Warranty: 2 Years
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

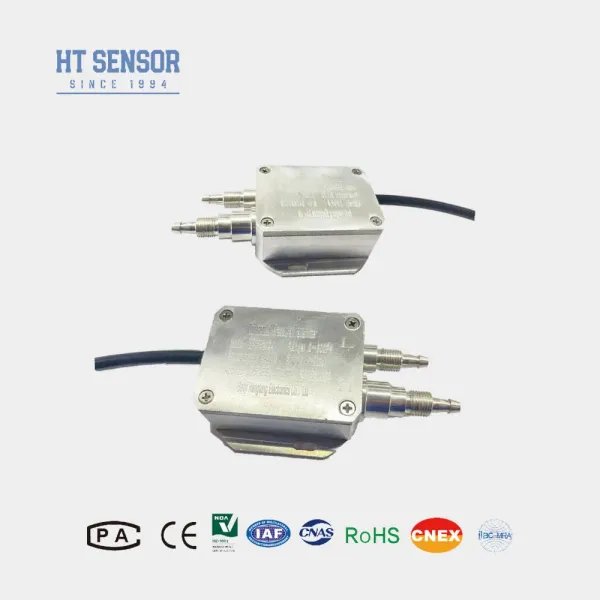

Air Pneumatic Differential Pressure Transmitter for HVAC Application DP Transducer Wind Sensor

Air Pneumatic Differential Pressure Transmitter for HVAC Application DP Transducer
BP93420DI D
ifferential Pressure Transmitter


Introduction:
BP93420DI is a Micro-differential pressure transmitter that utilizes the piezoresistive effect of semiconductor silicon material to convert differential pressure into an electrical signal. It is mainly used for measuring small differential pressures of non-corrosive dry gases, suitable for applications in industries such as boiler air supply, underground ventilation in the power and mining industries, and pressure automatic detection in ultra-clean workshops for process control.
Product Features:
  1. Choice of aluminum or plastic casing design
  2. Lightweight and easy to install
  3. Undergone rigorous high and low-temperature testing to ensure wide temperature range usability
  4. High accuracy
Applications:
  1. Suitable for applications in boiler and mining industries
  2. Brewing and power industries
  3. Designed for detecting small differential pressures of non-corrosive gases
Performance Parameters
Measurement Range0-500Pa, 0-1KPa,0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa,0~~~200KPa
Pressure TypeDifferential Pressure
Static pressure2 times of the rated range
Overload≤ 1.5 times of the rated range
Accuracy @ 25ºC±0.5% (Typical), ±1% (Maximum)
Zero Temperature Drift±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum)
Span Temperature Drift±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum)
Compensation Temperature0-50ºC
Operating Temperature-20ºC~80ºC
Storage Temperature-40ºC~100ºC
Housing MaterialAluminum alloy,Plastic
Relative humidity0-80%
Pressure connectionφ7 air nozzle or customizable
Protection RatingIP65
Cable materialPolyethylene
Weight~0.25kg

Output SignalSupply VoltageOutput Type
4~20mA12~30VDC2/3/4 wire
0~10/20mA
3 wire
0/1~5V
0/1~10V
0.5~4.5V5VDC


Ordering tips

1. When selecting the product, please ensure that the medium to be measured is compatible with the product parts in contact.
2. To ensure reliable operation, ensure that the measured medium is slowly and evenly pressurized on both the positive and negative pressure chambers of the transmitter.
3. During installation, it is recommended to position the pressure interfaces at both ends horizontally to minimize the impact on the product due to the installation position.
4. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, and radio frequency interference, please inform the company and specify them in the order.

Order Guide
BP93420DPressure Transmitter

CodeOutline Construction
IDifferential Pressure Transmitter

Measurement Range0-500Pa, 0-1KPa,0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa,0~~~200KPa

CodePower Supply
D124VDC
D25VDC
D3Other

CodeOutput Signal
S14~20mADCS50~20mADC
S21~5VDCS60~10VDC
S30~5VDCS70.5~4.5VDC
S40~10mADC



CodePressure Type
DDifferential Pressure

CodeHousing Material
01Aluminum alloy
02Plastic

Q&A
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
