| Categories | Self Adhesive Labeling Machine |
|---|---|
| Price: | 2000~300000USD |
| Capacity: | 300-600 Bottles |
| MOQ: | 1 |
| Material: | SUS304 |
| Delivery Time: | 30 working days to 180 workings days |
| Color: | Customized |
| Payment Terms: | T/T,L/C |
| Type: | Self Adhesive Labeling Machine |
| Packaging Details: | wooden box or pallet |
| PLC: | German Beckhoff |
| Supply Ability: | 50 units per year |
| Weight: | Approx. 6000kg |
| Company Info. |
| SCMJ world foreign trade Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Tailored for ultra-high-speed small-container production lines, this thirty-six-station labeling unit reaches a production range of 36,000 to 42,000 bottles per hour, specially designed for miniature packaging with a maximum diameter of 75 mm, such as pharmaceutical vials, essence bottles and mini beverage cans. Our proprietary dual pressure roller label feeding mechanism is refined for ultra-thin fragile label substrates, maintaining steady tension throughout the feeding path to support inline visual inspection and automatic alarm-triggered shutdown upon label missing. The servo edge correction unit restricts label tilt below 1°, securing ±0.3 mm feeding accuracy and ±0.2 mm fine labeling tolerance for high-definition printed tiny labels.
| Stations | 36 stations |
|---|---|
| Power Supply | 380V 50Hz 19KW |
| Production Speed | 36000-42000BPH(Varies by workpiece shape, size & label width) |
| Speed Regulation | Stepless speed control |
| Labeling Accuracy | ±1mm(Depends on workpiece profile) |
| Labeling Dispensing Accuracy | ±0.2 mm |
| Core Inner Dia. | φ76.2 mm |
| Max Roll Dia. | φ500 mm |
| Applicable Workpiece Dia. | ≤75 mm |
| Operating Air Pressure | 5 kg |
| Conveying Height | 1050mm(Customizable per layout requirements) |
| Overall Dimension | L3000*W2500*H2500mm |
| Machine Weight | 8000 kg |

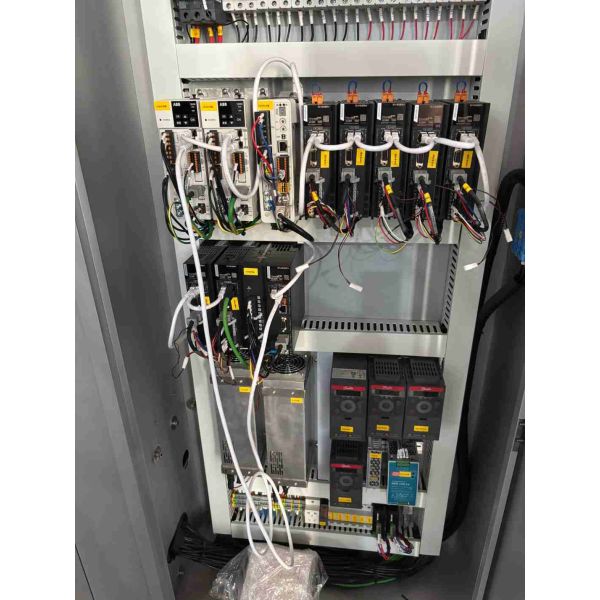

The complete premium electrical suite includes Beckhoff industrial PLC, ABB servo motion systems, dual movable Schneider HMIs, German SICK and Leuze detection sensors, Danfoss frequency converters and Festo pneumatic actuators. Synchronous tracking via rotary encoders eliminates precision fluctuations caused by line speed shifts, voltage variations and mechanical damping changes. The vacuum transfer drum fitted with one-piece non-stick aluminum suction blocks ensures uniform glue coating and prevents residual glue accumulation. The servo screw bottle separation structure uses customized self-lubricating materials, with rolling beads embedded on all contact surfaces to eliminate scratch defects on delicate small packaging.
All product-contact components adopt SUS304 stainless steel, paired with a thickened integrated stainless steel workbench and waterproof independent air-conditioned electrical cabinet. The imported Korean automatic lubrication system regularly injects lubricant into all rotating joints to lower wear during non-stop high-speed running. Running on 19KW 380V/50Hz power with 5 kg working air pressure, its standard conveying height of 1050 mm can be adjusted to match on-site layout requirements. With unified width and height dimensions and a heavy total weight, this model targets pharmaceutical, cosmetic and health product factories with high-demand small-specification bottle lines that require maximum hourly output and consistent premium labeling appearance.
|
