Electric DOT Peen Engraving Machine for Chassis Number Marking

Categories Electric Dot Peen Marking Machine
Model NO.: HBS-JZ115D
Certification: ISO9001, CE
Warranty: 12 Months
Condition: New
Marking Content: Graphic,Character,Letter,Number,Qr Code
Marking Speed: 1500-2000mm/Min
Trademark: HBS
Origin: China
MOQ: 1 Piece
Price: US $1,650-1,850 / P
Customized: Customized
Marking Area: 100150mm
Marking Depth: 0.1-1.5mm
Transport Package: Carton with Wooden Pallet
Production Capacity: 300 PCS Per Month
Controlling Mode: CNC
Company Info.
HBS Tech Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

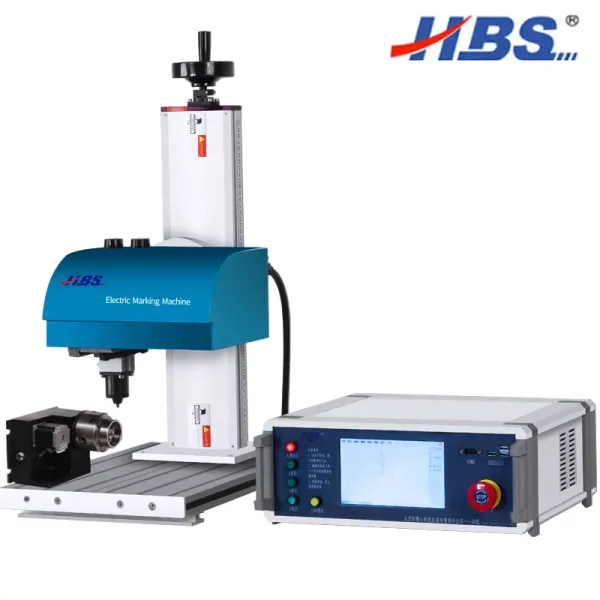

Electric DOT Peen Engraving Machine for Chassis Number Marking

Small CNC Pneuamtic dot Peen Marking Machine/metal Engraving machine HBS-JZ115P
Product Introduction

The working principle of pneumatic marking machine is: first input marking content into computer, then the marking pin traverses along the specific path directed by the marking machine control unit controlled by the computer. At the same time the marking pin hit on the work piece at high frequency driven by compressed air. Thereby forming the required marking contents on the work piece.

Product Features
  • Able to mark on wide variety of products or signs made of steel, iron, copper, aluminum, plastic and other material.
  • Able to mark Chinese and English characters, Arabic numbers and any picture etc. with harmonized and aesthetic effects.
  • Serial number automatically increasing or decreasing, VIN code, random code and 2D code, etc.
  • Key factor is high impact frequency of marking head and fast marking speed making it possible for mass production to customers' satisfaction.
  • Very small force of marking pin has no influence on the mechanical property of work pieces.
  • Marking depth (adjustable) 0.02mm to 1 mm, meeting the demands of various marking depth.
  • Simple operation, easy maintenance.
Product Application

Common metals and alloys (iron, copper, aluminum, magnesium, zinc, etc and all other metals), rare metal and alloy (gold, silver and titanium); metallic oxide (various kinds of metal oxide), special surface treatment (phosphating, anodized aluminum, plated surface); ABS material (electrical appliances shell, daily necessities), ink (light buttons, printed products), epoxy resin (encapsulation of electronic components, insulating layer).

Technical Parameter
ModelZ115P(Flat Surface)/JZS115P(Three axis)
Marking ContentNumbers, Chinese and English characters, graphics etc.
Marking Area150mm x 100mm
Repetition Accuracy0.05mm
Marking Depth0.02 - 1mm (Adjustable with different material)
Marking Speed1500 - 2000mm/Min
Power supplyAC220V ±10% 50Hz
Compressed Air supply0.3-0.6MPa
Air Consumption3L/S
Power consumptionLess Than 150W
JZS115D(Three Axes) CircularΦ5 mm - 100mm (Large circular clamp can be customized)
Non-standard Options
Marking Area150mmx150mm,200mmx200mm
CircularCan be customized with user requirement.
ControllerAll-In-One Controller (Does Not Need External Computer)
Packing Details
Dimension(mm)750X530X390 (machine: 320X440X800, controller:390X380X150)
Net Weight(kg)64(marking head: 58, controller: 6)
Gross Weight(kg)68
Shipping and delivery
  1. By Air

    - From Beijing Airport to customer's local Airport, within 2 days against the receiving of prepayment.

  2. By Sea

    - From China Tianjian Seaport to customer's nearest Seaport, within 3 days against the receiving of prepayment.

  3. By TNT/DHL

    By door to door delivery, from HBS factory to customer's office or factory.
