2kN Universal Material Tensile Testing Machine For Metal & Non-Metallic Materials

Categories Electric Vehicle Testing Equipment
Brand Name: Sinuo
Model Number: SNB02D-2kN
Certification: Calibration Certificate (Cost Additional)
Place of Origin: China
MOQ: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 10 Sets Per Month
Delivery Time: 30 Days
Packaging Details: Plywood
Force range: 0–2kN
Loading accuracy: ±0.2%
Test stroke: 800mm
Effective test width: 400mm
Test speed: 0.01–500mm/min (stepless adjustment)
Drive system: Servo motor + Taiwan ZPT ball screw + TM2101 software
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2kN Universal Material Tensile Testing Machine For Metal & Non-Metallic Materials

2kN Universal Material Tensile Testing Machine For Metal & Non-Metallic Materials
Product Overview

This computer-controlled universal tensile testing machine, equipped with customized fixtures, fully meets the test requirements of IEC 62196-1:2022 Clause 9, 13.3.2, 16.9, 26.7.3, Table 4 and BS 1363-2 Clause 11.10.7, 13.11.4.

It is widely used for mechanical property tests of non-metallic materials (rubber, plastic, wire and cable, textile, waterproof material, non-woven fabric, etc.) and metallic materials (metal wire, metal foil, metal plate, metal rod). With special fixtures, it can perform tensile, compression, peeling, shearing, tearing and bending tests on various finished products. The system supports multi-data printing and graphical data comparison, featuring high control accuracy and easy operation. Adopting a modular design, the machine is equipped with complete and flexible accessories.

Technical Parameters
Force range0–2kN
Force display resolution0.001N
Unit conversionkg, N, lb
Load resolution1/250000
Loading accuracy±0.2%
Displacement unitsmm, cm, in
Displacement display accuracy0.01mm
Test stroke800mm
Effective test width400mm
Test speed0.01–500mm/min (stepless adjustment)
Drive systemServo motor + Taiwan ZPT ball screw + TM2101 software
Safety devicesOverload emergency stop, travel limit, automatic break stop
Fixtures1 set of wire tension fixtures (customized for customer products)
Standard accessoriesIncluding 1 set of desktop computer
ControlPC control (Windows platform), user-friendly with detailed help

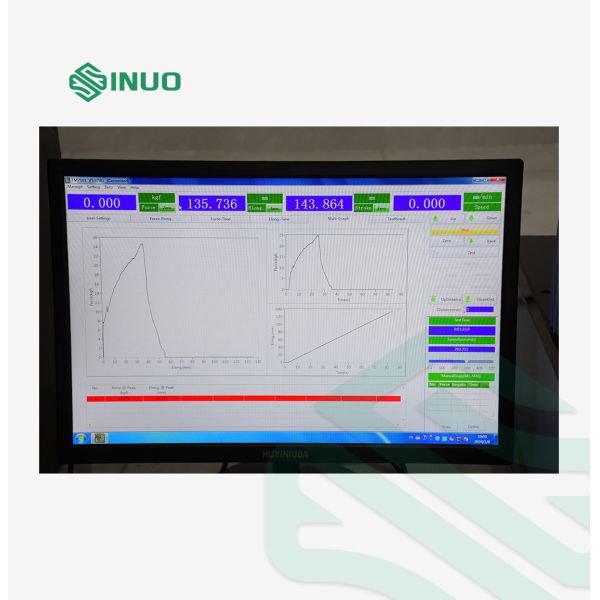

Real-time multi-curve displayforce-displacement, load-time, stress-strain, etc.
Dimensionsapprox. 800×500×1500mm
Power supply220V/50–60Hz
Power1.0kW
Net weightapprox. 150kg

Product Features
Servo Drive System
Closed-loop control of position, speed and torque, eliminating step loss
High speed: rated speed up to 2000–3000 rpm
Strong overload capacity: withstand 3 times rated torque
Stable low-speed operation, no stepping action
Short dynamic response time (within tens of milliseconds)
Low heat generation and noise
Taiwan ZPT Ball Screw
High transmission efficiency (90%–98%)
Smooth movement, low friction, no crawling at low speed
High positioning and repeat positioning accuracy
Good precision retention and long service life
High rigidity and excellent synchronization performance
High-Performance Control Board
32-bit ARM processor, faster operation and higher precision
24-bit high-precision AD acquisition, sampling rate up to 2000 times/sec
Force measurement accuracy better than Class 0.5
4-fold frequency encoder, displacement resolution up to 0.0005 mm
Pulse & voltage dual output, supporting smooth stepless speed regulation
Three closed-loop control (speed, displacement, force)

Abundant interfaces with photoelectric isolation for strong anti-interference

Professional Manufacturing Process
Precision machining ensures assembly accuracy
Paint-coated body and heat-treated fixtures for durability
Synchronous belt drive with accurate transmission ratio
Stable structure and reliable long-term operation
