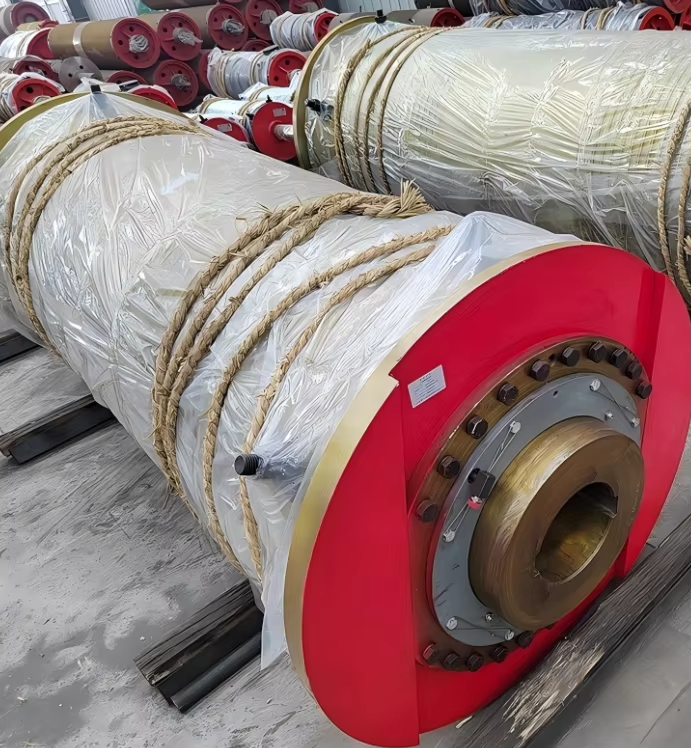

Induction Hardened Wire Rope Drum for Enhanced Surface Life

Product Description

The Induction Hardened Wire Rope Drum is a heavy-duty rope winding component designed for cranes, hoists, winches,

ship unloaders, stacker reclaimers and other material handling equipment. It is engineered to provide reliable wire rope guidance,

stable rope winding and improved resistance to groove wear under demanding operating conditions.

The drum is manufactured from high-quality steel and precisely machined according to the required wire rope diameter, drum dimensions,

groove configuration and installation requirements. The rope grooves can be induction hardened to improve surface hardness

and wear resistance in the areas directly exposed to repeated wire rope contact.

Compared with a conventional non-hardened rope drum, an induction hardened drum provides a more durable working surface

for high-cycle applications. The hardened groove surface helps reduce premature groove wear caused by repeated rope winding

and contact, supporting more stable rope operation and extending the service life of the drum.

The rope drum can be manufactured with single-layer or multi-layer winding configurations, as required by the lifting height

and equipment design. Right-hand, left-hand or customized grooving can also be produced according to the rope winding direction

and reeving arrangement.

For crane and hoisting applications, the drum dimensions and groove geometry should be matched with the wire rope and actual working

conditions. Proper groove design helps keep the wire rope correctly positioned during winding and reduces unnecessary rope bending and wear.

As a professional manufacturer, we can provide customized rope drum solutions based on drawings, samples or detailed technical

requirements, including drum diameter, drum length, rope diameter, groove pitch, groove direction, material and hardening requirements.

Induction Hardened Wire Rope Drum Advantages

1. Induction Hardened Groove Surface

The rope-contacting groove area can be induction hardened to improve surface hardness and resistance to repeated wear.

2. Enhanced Surface Life

The hardened working surface helps reduce groove wear during frequent rope winding and unwinding, making the drum suitable for high-cycle applications.

3. Precision Machined Rope Grooves

Accurately machined grooves provide stable wire rope guidance and help maintain consistent rope winding.

4. Heavy-Duty Construction

Manufactured from suitable steel materials and designed for demanding crane, hoist and winching applications.

5. Customized Design

Drum diameter, length, rope groove, winding direction, rope diameter, mounting structure and other dimensions can be manufactured

according to the customer's drawing or technical requirements.

6. Suitable for Continuous Operation

The hardened groove surface makes the drum particularly suitable for applications involving frequent lifting, lowering and repeated

rope movement.

7. Reduced Maintenance Requirements

Improved groove wear resistance can help extend the service interval and reduce the frequency of drum replacement

in demanding applications.

Application Scenarios

The Induction Hardened Wire Rope Drum is widely used in:

• Overhead Cranes
• Gantry Cranes
• EOT Cranes
• Port Cranes
• Container Cranes
• Ship Unloaders
• Stacker Reclaimers
• Industrial Hoists
• Electric Winches
• Heavy-Duty Lifting Equipment
• Mining Equipment
• Steel Mill Material Handling Equipment
• Construction Hoisting Equipment

For heavy-duty and high-cycle crane applications, hardened rope grooves are particularly useful where repeated wire rope contact

can cause accelerated groove wear. Industry specifications for high-duty-cycle cranes also recognize hardened drum grooves as a measure for improving wear resistance.
