Φ60mm Large Format 16K Line Scan Camera Lens

Φ60mm Large Format 16K Line Scan Camera Lens

Φ60mm Large Format 16K Line Scan Camera Lens
Φ60mm Large Format 16K Line Scan Camera Lens
Categories Scanning Lens
Certification: ROHS\Reach
Resolution: 8K 7μm/16K 3.5μm
Model Number: L60F6040-M72
Focal length: 60 mm
Supply Ability: 1000k/per month
Mount Type: M72
MOQ: 1
Delivery Time: 3~30days after order
Filter Size: Customizable adapter ring
Dimensions: Φ49×66mm
Payment Terms: T/T&L/C
Flange Length: 12mm
Price: $0.2~$100
Focus: 0.3m～Inf.
Brand Name: Advance
Product name: 16K Line Scan Camera Lens
Packaging Details: EVA+Vacuum
Operating Temp.: -20℃～60℃
Place of Origin: China
Lris: F4.0～F16
Contact Now
Company Info.
Shanghai Advance Optical-Electronics Technology Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Φ60mm Large Format 16K Line Scan Camera Lens

Φ60mm Large Format 16K Line Scan Camera Lens
The L60F6040-M72 is a pinnacle-tier Φ 60mm Large Format 16K Line Scan Camera Lens built exclusively for ultra-high-resolution, large-scale industrial surface inspections. Boasting a massive Φ60mm image circle, this large format 16K line scan camera lens is engineered to fully cover the newest generations of 8K 7μm and 16K 3.5μm ultra-long line scan sensors. Utilizing a robust M72 mechanical mount, this Φ 60mm large format 16K line scan camera lens provides the rock-solid stability and high optical transmission required for advanced semiconductor, glass panel, and large-format continuous web monitoring networks.
Technical Specifications
ModelF30M1528M42F30M2528M42F30M3528M42F30M5020M42L60F6040-M72
Focal Length15mm25mm35mm50mm60mm
Image SizeΦ30mmΦ30mmΦ30mmΦ30mmΦ60mm
Resolution4K 7μm/8K 3.5μm4K 7μm/8K 3.5μm4K 7μm/8K 3.5μm4K 7μm/8K 3.5μm8K 7μm/16K 3.5μm
Ratio Range0.001X~0.05X0.001X~0.125X0.001X~0.175X0.001X~0.167X0.001X~0.2X
RI >>80%>72%>83%>90%>68%
Working Range - IrisF2.8～F22F2.8～F22F2.8～F22F2.0～F22F4.0～F16
Working Range - Focus0.3m～Inf.0.2m～Inf.0.2m～Inf.0.3m～Inf.0.3m～Inf.
Control - IrisManualManualManualManualManual
Control - FocusManualManualManualManualManual
Field Angle89.4° @Φ28.7
52.8° @Φ14.4		59.7° @Φ28.7
32.1° @Φ14.4		44.6° @Φ28.7
23.2° @Φ14.4		22.0° @Φ28.7
10.0° @Φ14.4		53.1° @Φ60
50.0° @Φ56
TV Distortion-0.1%-0.09%-0.08%-0.07%0.2%
Flange Length12mm12mm12mm12mm12mm
Mount TypeM42/M58M42/M58M42/M58M42/M58M72
Filter SizeCustomizable adapter ringCustomizable adapter ringCustomizable adapter ringM43 P=0.75mmM43 P=0.75mm
DimensionsΦ55*83.5mmΦ59*98.8mmΦ55*86.7mmΦ52*63.5mmΦ49*66mm
Weight323.5g476g350g290g314g
Operating Temp.-20℃～60℃-20℃～60℃-20℃～60℃-20℃～60℃-20℃～60℃

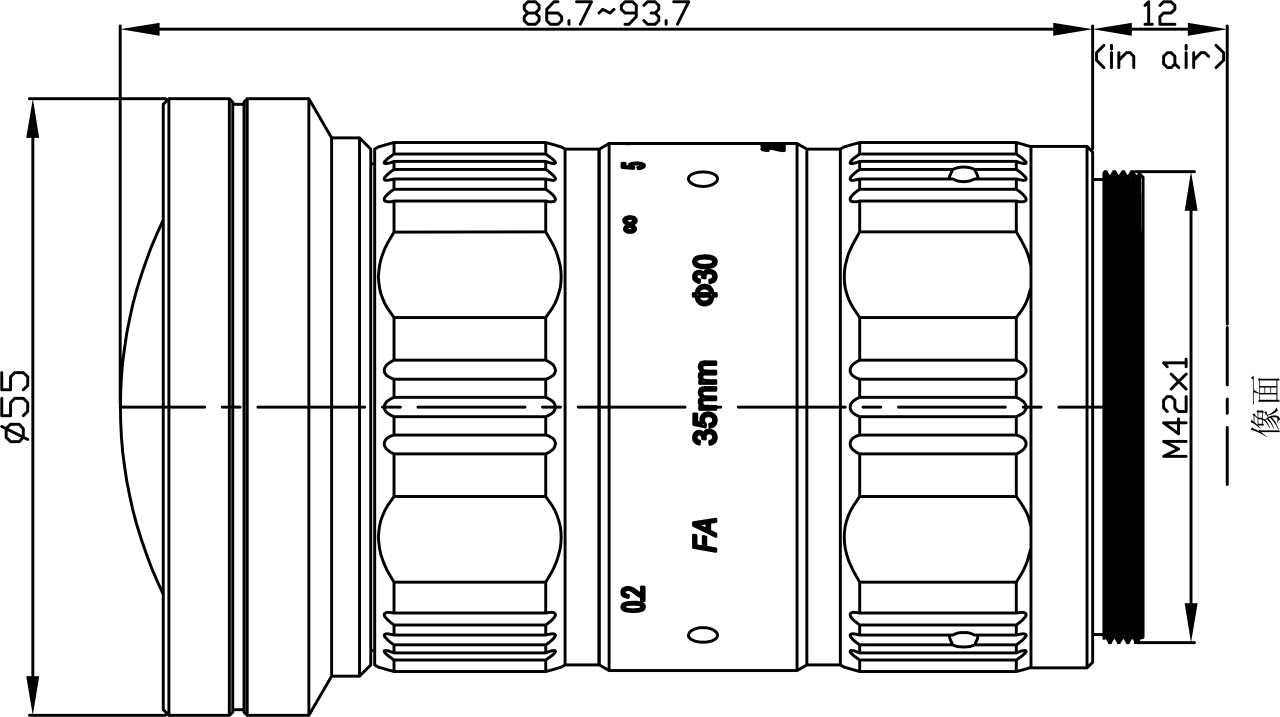

Φ60mm Large Format 16K Line Scan Camera Lens front view Φ60mm Large Format 16K Line Scan Camera Lens side view Φ60mm Large Format 16K Line Scan Camera Lens technical details
Key Features
  • Massive Φ60mm Image Circle: Designed as a true large format 16K line scan camera lens, it completely covers massive high-resolution sensor lengths without corner shading.
  • 16K Resolving Power: Engineered to capture sub-micron level anomalies, this Φ 60mm large format 16K line scan camera lens supports ultra-dense 3.5μm pixels.
  • Heavy-Duty M72 Mount Connection: The M72 mount ensures zero optical axis tilting, securing heavy, large-format line scan camera modules perfectly.
  • Semiconductor Wafer Inspection: Scans entire semiconductor wafer surfaces or photolithography masks for nano-scale defects and dust particles.
  • OLED & FPD Glass Inspection: Ideal for analyzing large flat panel glass substrates for pixel array inconsistencies, glass alignment, and micro-scratches.
  • High-End Copper Foil & Battery Separation Film Scan: Tracks microscopic punctures or uneven coating thickness across ultra-wide sheet production processes.
