Fully Automatic Laundry Soap Production Line with Soap Cutting Stamping Unit

Fully Automatic Laundry Soap Production Line with Soap Cutting Stamping Unit

Fully Automatic Laundry Soap Production Line with Soap Cutting Stamping Unit
Fully Automatic Laundry Soap Production Line with Soap Cutting Stamping Unit
Categories Fully Automatic Soap Making Machine
Supply Ability: 666
Technical Support: One-Year Remote Warranty Service
Model Number: M-500
Machine: Brand New, Not Second-Hand
MOQ: 1
Delivery Time: 10-30
Color: Can Be Customized
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Formula: Can Provide
Electricity: Three-Phase Electricity
Price: 2170-12570
Voltage: Can Be Customized
Hz: Can Be Customized
Certification: CE
Place of Origin: China
Packaging Details: 4300*3500*2300mm
Brand Name: LOVO
Contact Now
Company Info.
Henan Lovo Industry Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Fully Automatic Laundry Soap Production Line with Soap Cutting Stamping Unit

Fully Automatic Laundry Soap Production Line with Soap Cutting Stamping Unit

Main categories: Laundry Bar Soap Making Machine, Toilet Soap Plodder Machine, Detergent Soap Wash Powder Machine, Soap Pack Machine, Soap Stamp Machine
In your inquiry, please let me know
1, Toilet soap or laundry soap, which soap will you make?
2, Capacities are 150-300, 300-600, 600-1000kg/h, 2000-3000kg/h . what capacity do you need?
3.what is the material? oil or soap noodles?


Specification

Main process
1. Mix all materials by mixing agitator, grind soap noodles by three-roller mill, make soap materials into soap bar by vacuum plodder, and cut soaps by stamping machine.
2. Distribution boxes are used to control all the motors of machines, and conveyors are used to transport soap materials.
3. Water pump is used to make the water to cool down the vacuum plodder, and vacuum pump is used to vacuumize the soap materials.
4. The parts of mixing agitator and vacuum plodder that touch the soap materials can be made of stainless steel 304.
Model
XT300
XT500
XT1000
Capacity
100-300kg/h
300-600kg/h
600-1000kg/h
Screw diameter
160mm
300mm
400mm
Screw rotary speed
Up screw 10rpmBelowscrew 8-16rpm
Up screw12rpmBelow screw 8-16rpm
Up screw12rpmBelow screw 10-16rpm
Motor
13kw
18.5kw
33kw
Soap mould
According to requirement
Soap stamping machine
For toilet soap
Soap cutting machine
For laundry bar soap
Voltage
According to requirement

JB125 Mixer:
The special designed blades, the soap noodles and the ingredients can be mixed well and even, and dyes and ingredients can fully blend into the noodles, meeting different customer requirements. After the mixing, products are discharged by the bottom discharging door.Easy to use, simple to operate
S260 Three-Roller Mill
The Three Roll Mill is used for soap refining. Three rolls are horizontally placed with different rotating speeds. The refining function is achieved by pressing and squeezing force between the adjacent rolls. The main frame is made of high quality stain structure, strong and solid. All gears are precisely manufactured and bathed in oil lubricants for long running life with lower noise, less wearing and better reliability. Rolls are made of special alloy, high hardness, anti-wearing capability, and with water chilling system. Gap between rolls can be adjusted easily for different refining effects and production capacity needs.

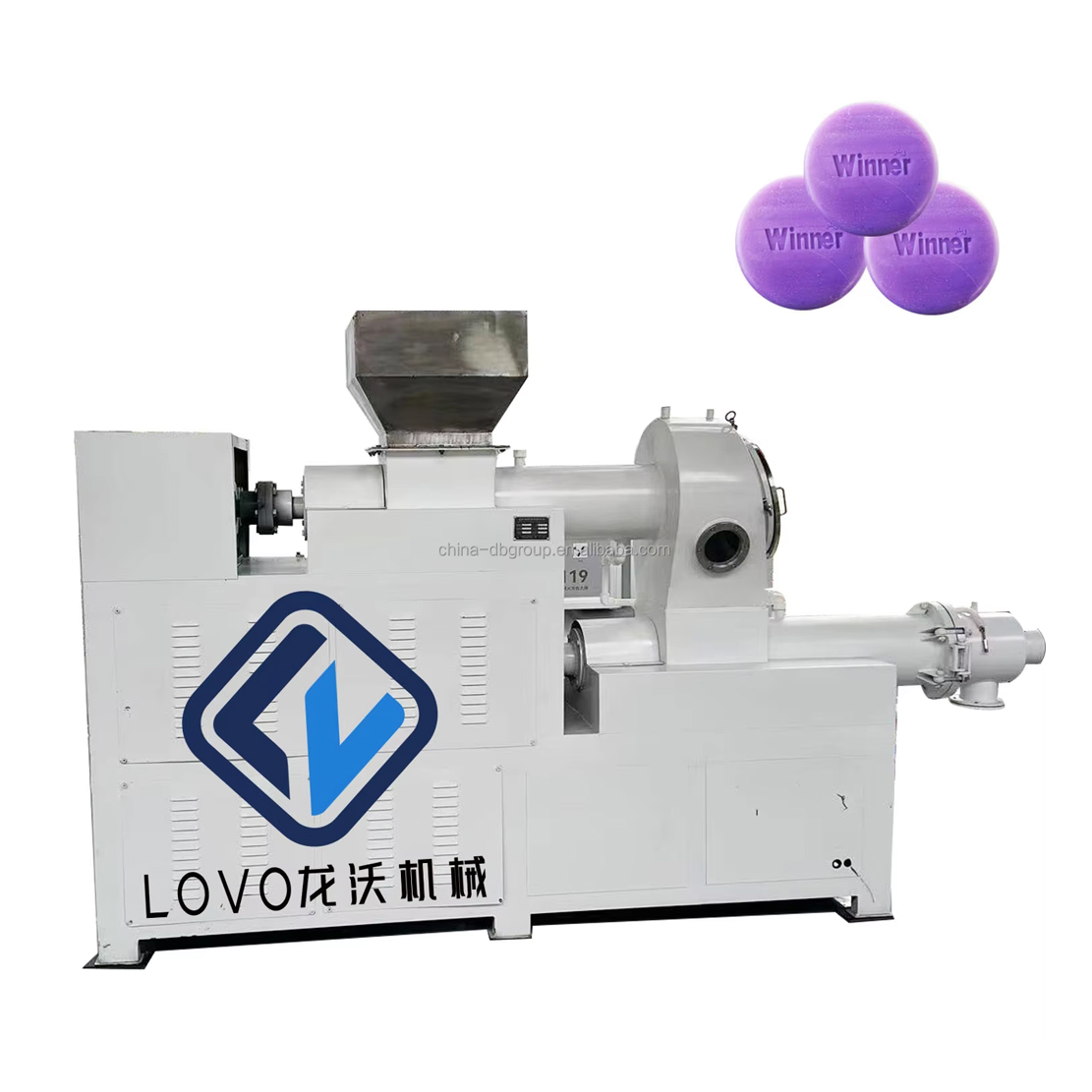

C219 Double-Layer Vacuum Plodder:
This machine has two layer screw, driven by independent driving and transmission system. The first plodder is acting as a simplex refiner to make soap pellets in the vacuum condition. In the final plodder, the soap is pressed and extruded out in billets through the orifice to feed the downstream cutter or stamper. The final plodder speed can be adjusted by VFD. There is a level sensor on the vacuum chamber door to realize the auto run and stop control of the first plodder. Specially designed and continuously improved water cooling system and the different screw inner diameter and pitch design are especially suitable for the laundry soap and toilet soap.
Electric cutting machine:
It is used for transparent soap and soap bars squeezed out by soap bar making machines, it can be rolled and cut into pieces by the machine continuously and automatically. It has an electronic cursor tracking system and can cut soap by any size and weight after computer setted. It is driven by soap bars, and the finished soap is accurate to ±1g/±1mm. It can correctly roll and print the brand or pattern in the middle of each soap body, and the finished soap is vertical, parallel, beautiful, and fast.
PLC Brand: DELTA
Servo control system brand: DELTA
Soap stamp machine:
The one-dozen-one soap freezing printer uses a standard one-dozen one mold. This machine can print various soaps with different patterns, different fonts, different shapes and grams.
Production capacity :80-120cpm
capacity:300-600kg/h
Power:3kw
Punch frame reciprocating stroke: 124mm
Moving table reciprocating stroke: 115mm
Dimensions:1480*750*1100mm
Weight:1750kg

Molds and Finished Products
Our clients come from all over the country

Our Team

Contact Us

FAQ

1. who are we?

We are based in Henan, China, start from 2013,sell to Africa(50.00%),North America(20.00%),Southeast Asia(20.00%),South Asia(10.00%),Eastern Asia(0.00%),South America(0.00%),Oceania(0.00%),Western Europe(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%),Eastern Europe(0.00%),Domestic Market(0.00%),Mid East(0.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?

Laundry Bar Soap Making Machine, Toilet Soap Plodder Machine, Detergent Soap Wash Powder Machine, Soap Pack Machine, Soap Stamp Machine

4. why should you buy from us not from other suppliers?

Rich export experience, perfect after-sales, high standards of quality requirements

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,CPT；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
