| Categories | Furniture Making Machine |
|---|---|
| Certification: | ISO9001:2015 |
| Device Framework: | Stable structure, high precision |
| Model Number: | GLM-CM |
| Working stroke: | 1220*2800*50mm |
| Payment Terms: | T/T,L/C,FOB,CIF |
| Reduction System: | Shimpo(Japan) |
| Table structure: | Vacuum adsorption with 7 major partitioned countertops, multi-point adsorption/multi-slot design/uniform adsorption/instantaneous adsorption/instantaneous release |
| Price: | 8800 Dollars per Set |
| Control System: | Taiwan Baoyuan Control System |
| Supply Ability: | 10 Sets per Month |
| Rack & Pinion: | German Doctor's 2M High-Precision Grinding Helical Rack |
| Bed frame structure: | High-precision heavy-duty side-mounted bed, processed by a large-scale CNC five-axis milling machining center |
| MOQ: | 1 Set |
| Delivery Time: | 10-15 work days |
| Servo Motor System: | 1500WHigh-performance general aviation servo system with X, Y and Z axes, each with a power of 1500W |
| Linear guide and lead screw: | MNW domestic brand ball screw, XZ axis 25 guide rail, Y axis 30 model guide rail |
| Brand Name: | Guelinmen |
| Product Name: | 3-meter straight-line cutting machine |
| Packaging Details: | Carton, Wooden Frame |
| Location mode: | 3+2 High-precision Automatic Positioning Cylinder Push-button One-key Positioning Device - One-time Startup Device |
| Place of Origin: | Guangzhou China |
| Main Power: | Air-cooled tool-changing spindle with a rotational speed of 24,000 rpm |
| Company Info. |
| Guilinmen (Guangzhou) Aluminum Decoration Technology Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

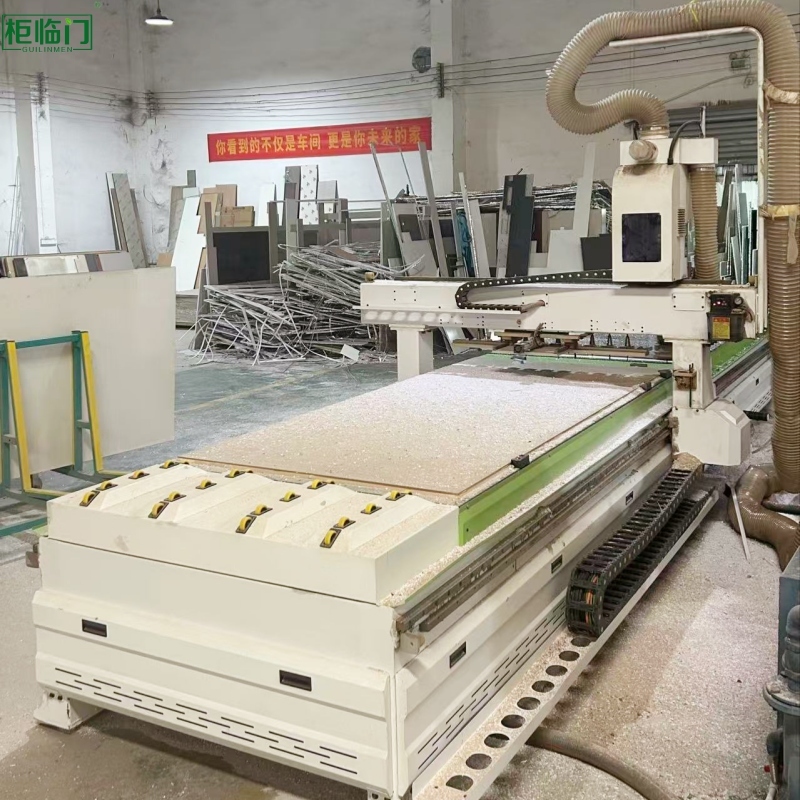

3-meter Straight-line Cutting Machine
| 3-meter straight-line cutting machine | |
| Equipment Parameter | |
| Working stroke | 1220*2800*50mm |
| Device Framework | Stable structure, high precision |
| Main Power | Air-cooled tool-changing spindle with a rotational speed of 24,000 rpm |
| Servo Motor System | 1500W High performance general aviation servo system with X, Y and Z axes, each with a power of 1500W |
| Control System | Taiwan Baoyuan Control System |
| Reduction System | Shimpo(Japan) |
| Rack & Pinion | German Doctor's 2M High-Precision Grinding Helical Rack |
| Linear guide and lead screw | MNW domestic brand ball screw, XZ axis 25 guide rail, Y axis 30 model guide rail |
| Location mode | 3+2 High-precision Automatic Positioning Cylinder Push-button One-key Positioning Device - One-time Startup Device |
| Bed frame structure | High-precision heavy-duty side-mounted bed, processed by a large-scale CNC five-axis milling machining center |
| Table structure | Vacuum adsorption with 7 major partitioned countertops, multi-point adsorption / multi-slot design / uniform adsorption / instantaneous adsorption / instantaneous release |
| Important electrical components | French Schneider relays are used alternately; Delixi |
| Pneumatic component | AIRTAC(TW) |
| Inverter | Zhongda brand 11KW inverter + braking resistor |
| Power cable | High-flexibility high-shielded cable, double-ply cable with protective sheaths, anti-interference and anti-damage capability |
| Loading materials and pushing materials | With auxiliary feeding rollers, one-time feeding, automatic pushing of materials and a secondary dust removal device |
| Cooling System | 7.5KW water circulation cooling |
| Safety System | Over-speed protection / emergency stop protection / limit switch / air pressure alarm / safety guard / electrical protection, etc. |
| Vacuum system | UPVC vacuum pipeline + vacuum steel wire hose |
| Vacuum cleaning system | Floating vacuum cleaner |
| Connection piece | The transmission components are fixed with 12.9-grade high-strength screws, and the sheet metal is fixed with screws. |
| Accuracy guarantee | Each axis is rigidly fixed and positioning pins are installed on the precision parts. |
| Connection piece | Five-sided horizontal boring machine for fine processing |
| Power supply | 380V |
| Quality Control | 12-hour high-speed test of the machine |
FAQ
Q1: Are aluminum honeycomb panels fire-resistant?
A: Yes, our fire-rated aluminum honeycomb panels achieve A1 grade non-combustible fire rating (EN 13501-1), meeting the highest safety standards for public and commercial buildings.
Q2:How to clean and maintain it in daily life?
A:Wipe with clean water and neutral detergent; Prohibit the use of strong acids, strong alkalis, and steel wire ball polishing; Outdoor rainwater self-cleaning, fluorocarbon surface dust is easy to wash away.
Q3: What is the packaging of the goods?
A:We apply a protective film to the product surface, then wrap it with foam, and finally place it in a wooden frame.
Q4: What is your payment term?
A: We accept the payment terms: T/T, L/C, FOB, CIF.
Q5: What are the transportation methods?
A: Ocean Shipping and railway transportation. Feel free to select the packaging and shipping options that best meet your specific requirements, ensuring a secure and efficient delivery of our aluminum plates.
Q6: Can I get a sample?
A: Yes, we can provide a free standard-size sample and the color board, but the delivery cost should be paid by you. For customized or large-size samples, you should bear both the sample cost and delivery cost
Q7: How long does it take for an order to be shipped?
A: It will take approximately 10-15 days.
|
