Six Axis Simultaneous Automatic Slitting Machine Non Stop Operation Tape Slitting Machine High Output

Categories Automatic Slitting Machine
Certification: VERIFICATION OF CONFORMITY
Maximum Shearing Blade Diameter: 200mm
Place of Origin: CHINA
Maximum cutting diameter: 180mm
Packaging Details: Wooden Case
Delivery Time: 15-30 working days
Model Number: ZRT-1300-G6
Model: ZRT-1300-G6
Net Weight: 3.5T
MOQ: 1 set
Spindle servo motor: 5000W HCFA
Payment Terms: T/T
Brand Name: ZHIROBO
Type: Slitting Machine
Price: Negotiable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Six Axis Simultaneous Automatic Slitting Machine Non Stop Operation Tape Slitting Machine High Output

Six Axis Simultaneous Non-Stop Loading Unloading High Output Cutting Slitter
Product Overview

This advanced six-axis automatic cutting machine is designed for precision slitting of various materials including electrician's tape, electronic film, grid tape, PE, TPU, PET, kraft paper, paper tape, BOPP, adhesive tape, acrylic, double-sided tape, and masking tape.

Main Technical Parameters
ParameterSpecification
Name/ModelZRT-1300-G6
Paper CoreCustomized (25/32/38/50/76=6 strips)
Cutting Width0.5-1300mm
Maximum Cutting Diameter180mm (varies with material thickness)
Maximum Shearing Blade Diameter200mm
Dual-screen Control15 inches + 7 inches
Power Supply380V (Customizable 220V) 50/60HZ/15KW
Air Pressure5KG
Machine SizeL3200mm × W2000mm × H2000mm
Net Weight3.5T
Configuration Parameters
ComponentSpecification
ModelZRT-1300-G6
Main Touch Screen15 HCFA
Auxiliary Touch Screen7 inches HCFA
Rack Wall PanelThickness: 40mm
Motion ControllerHCFA
Spindle Servo Motor5000W HCFA
Spindle Servo Driver5000W HCFA
Circular Knife Servo Motor3000W HCFA
Circular Knife Drive3000W HCFA
Lateral Servo Motor1500W HCFA
Lateral Servo Driver1500W HCFA
Feed Servo Motor1500W HCFA
Feed Servo Drive1500W HCFA
Angle Positioning Servo400W HCFA
Angle Positioning Servo Drive400W HCFA
Rolling Servo1000W HCFA
Rolling Servo Driver1000W HCFA
Water Pump60W
Planetary ReducerSmetre
SlicerJU JIU
Air SwitchChint
Switching Power SupplyMingwei
Photoelectric SensorBOJKE
Proximity SwitchYangming
AC ContactorSchneider
RelayIDEA
Button SwitchSchneider
Three-color Warning LightTAYB
IlluminationLED
Feed ScrewHIWIN 3210
Horizontal Moving Screw RodHIWIN 3210
Adjustable Angle Screw RodHIWIN 1510
Cutting-in Guide RailHIWIN30
Lateral Guide RailHIWIN30
Operation Box Guide RailHIWIN15
Solenoid ValveAsicko
Air CylinderAIRTAC
Linear RailHIWIN
Magnet SwitchAIRTAC
Spindle 3 inches (6 pieces)DC53
BearingNSK
FuselageImported paint finish
Round Knife3 pieces (size determined by material) - maximum 200mm
Work-box1 set
Dial Gauge1 set
The Tool Post1 PCS
PE Pipe6 items
Key Equipment Advantages
  • Adopts HECO motion control system, supporting 12 cutting modes to suit products of different widths, together with three optional feed speeds
  • Equipped with 5000W servo-driven main shaft and 3300W servo circular cutter built with instant stop safety protection function
  • Horizontal movement unit uses NSK 3210 lead screw and 30 guide rails, delivering positioning accuracy of ±0.02mm
  • The feeding mechanism utilizes upper silver 3210 screw and 30 guide rails to maintain stable structural strength and high precision
  • 400W servo system controls swing angle, and the adjustable range covers +9.5° to -9.5°
  • 60W water pump cooling system fitted with precise ball valve, enabling low-noise running status
  • Key components undergo QBQ treatment to achieve better hardness, wear resistance and corrosion resistance
  • Dual-screen human-machine interface consisting of a 15-inch main display and a 7-inch auxiliary screen
  • Comprehensive integrated lighting system arranged for the whole machine
  • Stainless steel knife box with dry-wet separation structural design
  • Stainless steel drainage structure effectively avoids silicone oil spillage during equipment operation
  • Reversal unit driven by 1000W servo motor, realizing error-free flipping actions
  • Supports simultaneous three-axis segmentation processing to greatly promote production efficiency
  • Pre-installed tool rest, compatible with materials whose main shaft core size is less than 25mm

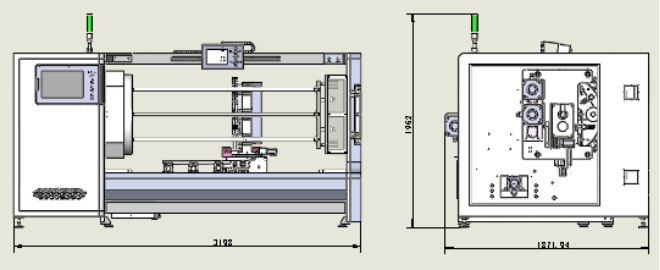

Equipment Layout
ZRT-1300-G6 Six-axis Automatic Cutting Machine equipment layout diagram ZRT-1300-G6 Six-axis Automatic Cutting Machine operational view
