5.5 Inch 256x64 Dot Matrix OLED Module with SSD1322 Driver
This industrial-grade 5.5-inch OLED module is driven by the
professional SSD1322 driver IC, featuring a 256x64 high-resolution
dot matrix green display with full viewing angle performance. It
supports multi-interface compatibility including 8-bit 68XX/80XX
parallel and 3-/4-wire SPI, with dual pin configuration options for
different interface needs and a 15-pin core connection design for
parallel mode. The module boasts excellent temperature adaptability
(-20℃~+70℃ operating, -30℃~+80℃ storage), precise mechanical
tolerance (±0.2mm), and a large active display area
(135.65mm*33.89mm), making it an ideal choice for industrial
control equipment, large-size embedded display systems, intelligent
operation panels, professional instruments and various electronic
projects with high display size and resolution requirements.
Product Specifications
| Display Type | 5.5" PMOLED Module (Green Display, Full Viewing) |
| Part Number | GME050G-916 |
| Driver IC | SSD1322 |
| Connection Type | 15-Pin Parallel / 7-Pin SPI, PCB Mount Design |
| Working Voltage (VCC) | 3.3V/5V DC (Standard Power Supply) |
| Interface Type | 8-bit 68XX/80XX Parallel, 3-wire SPI, 4-wire SPI |
| Pin Configuration | 15-Pin (Parallel): GND/VCC/D0-D7/RD/WR/DC/RST/CS
7-Pin (SPI): GND/VCC/SCL/SDA/RST/DC/CS |
| Pixel Resolution | 256x64 Pixels |
| Display Color | Green |
| Operating Temperature | -20℃ ~ +70℃ (Wide Temperature Adaptation) |
| Storage Temperature | -30℃ ~ +80℃ |
| Viewing Direction | All Viewing Angle (360° Clear Display) |
| Active Area (A/A) | 135.65mm(L)*33.89mm(W) |
| Viewing Area (V/A) | 137.65mm(L)*35.89mm(W) |
| Module Core Size (LCD) | 146.00mm(L)*45.00mm(W) |
| PCB Dimension | 159.13mm(L)*50.17mm(W) |
| Iron Frame Thickness | 0.8mm |
| Unnoted Tolerance | ±0.2mm |
| Display Dot Pitch | 0.53mm(L)*0.53mm(W) (Typ) |
| Compliance Standard | RoHS (EU Environmental Instructions) |
Product Features
- 5.5-inch large-size PMOLED display with 256x64 high-resolution dot
matrix, green display for clear visual effect in industrial
scenarios
- SSD1322 professional dedicated driver IC with stable performance,
supporting multi-interface drive and high-precision display control
- Multi-interface compatibility (8-bit 68XX/80XX parallel, 3/4-wire
SPI) for flexible matching with various MCU/embedded systems
- Dual pin configuration options (15-pin parallel /7-pin SPI) to meet
different project wiring and interface design requirements
- Full viewing angle display characteristic (360°), no visual loss
from any direction, suitable for multi-position installation and
viewing
- Excellent wide temperature adaptability (-20℃~+70℃ operating,
-30℃~+80℃ storage) for harsh industrial and outdoor environments
- Large active display area (135.65mm*33.89mm) to display more text
and graphic information for industrial equipment
- Precise mechanical tolerance (±0.2mm) for consistent product
quality and accurate installation matching in professional
equipment
- Integrated iron frame design (0.8mm thickness) for enhanced module
structural stability and anti-collision performance
- Optimized PCB and LCD size matching, compact structural design for
large-size display module, saving installation space
- Industrial-grade circuit design, stable signal transmission for
parallel and SPI interfaces, no data loss during high-speed
transmission
- Green monochrome display with high contrast, ensuring clear
visibility even in strong light industrial sites
- Support for hardware reset (RST pin) and chip select (CS pin), easy
system integration and multi-module cascade control
- Low power consumption characteristic of PMOLED technology,
balancing large-size display and energy saving for embedded devices
- RoHS compliant materials and components, meeting EU environmental
protection requirements for global market sales
Product Applications
- Industrial control equipment and large-size intelligent operation
panels with 256x64 high-resolution display requirements
- Professional industrial instruments, precision measuring equipment
and large-screen handheld testing devices
- Embedded display systems, industrial single-board computers and
large-size control equipment display modules
- Intelligent factory equipment, industrial automation control
terminals and production line monitoring display screens
- Building automation systems, large-size intelligent control panels
and property management display equipment
- Power system equipment, electric power monitoring instruments and
large-size data display terminals
- Communication base station equipment, network monitoring terminals
and industrial communication display modules
- Smart transportation equipment, traffic control instruments and
road condition monitoring display screens
- Marine and aerospace auxiliary equipment, industrial-grade display
modules with wide temperature adaptation
- Medical equipment, large-size professional medical instrument
display panels and health monitoring equipment
- Financial self-service equipment, bank terminal display screens and
large-size financial electronic display components
- Commercial service equipment, intelligent vending machines and
large-size self-service terminal display modules
- Outdoor electronic equipment, field detection instruments and
large-size display devices for harsh environments
- DIY electronic projects, high-performance microcontroller
development boards and large-size open-source hardware display
accessories
- Various industrial and professional electronic products with
large-size, high-resolution monochrome display needs

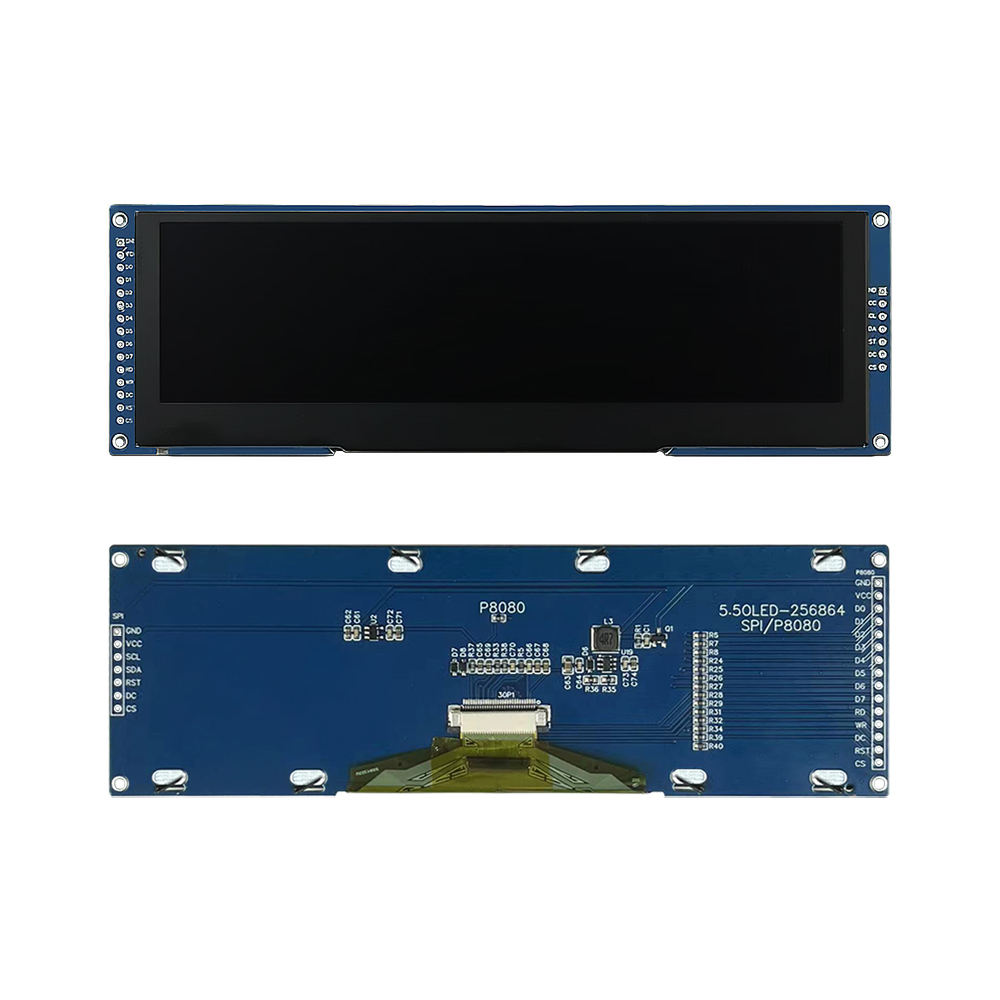

Product Image
