4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing

4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing

4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing
4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing
Categories Video Wall Controller
Brand Name: Bitvisus
Place of Origin: Guangdong, China
MOQ: 1
Price: $262-370
Material: Metal
Input interface: 3 x HDMI1.4, 1 x HDMI2.0, 1 x DP1.2
Color depth: 24 bit, RGB444, YUV420
Output Interface: 9 x HDMI1.3, 1x DP1.2 loop out
Audio interface: 3.5 mm
Control method: Infrared remote, RS232, PC
Power supply: DC 12V 2A
Size: 270mm x 122.5mm x 20.5mm
Weight: 1kg
Input resolution: 3840x2160@60Hz
Output resolution: 1920x1080@60Hz
Video pixel frequency: Input: 600MHz, Output: 165MHz
Default resolution: HDMI: 3840x2160@30Hz, DP: 3840x2160@60Hz
HDCP support: HDCP2.2
Input rotation: 90° (single-picture mode)
Contact Now
Company Info.
Shenzhen Bitvisus Technology Limited
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

4K60 Video Wall Controller with 9 HDMI Outputs and 3-Year Warranty for Multi-Display Processing

BIT-VWC-409R Ultra HD Rotary Video Wall Controller
Factory direct 2x2 4K60 video wall controller with 4 inputs and 9 outputs, featuring HDMI 2.1 video splitting technology for large screen video walls.
BIT-VWC-409R Video Wall Controller front view
Product Overview
The BIT-VWC-409R is an ultra HD rotary splicer manufactured by Shenzhen Bitvisus Technology Limited, designed for professional video wall applications.
Key Features
  • Supports 4 HDMI inputs (1 channel 4K@60Hz, 3 channels 4K@30Hz) and 1 DP input (4K@60Hz)
  • 9 HDMI outputs supporting 1080p@60Hz resolution

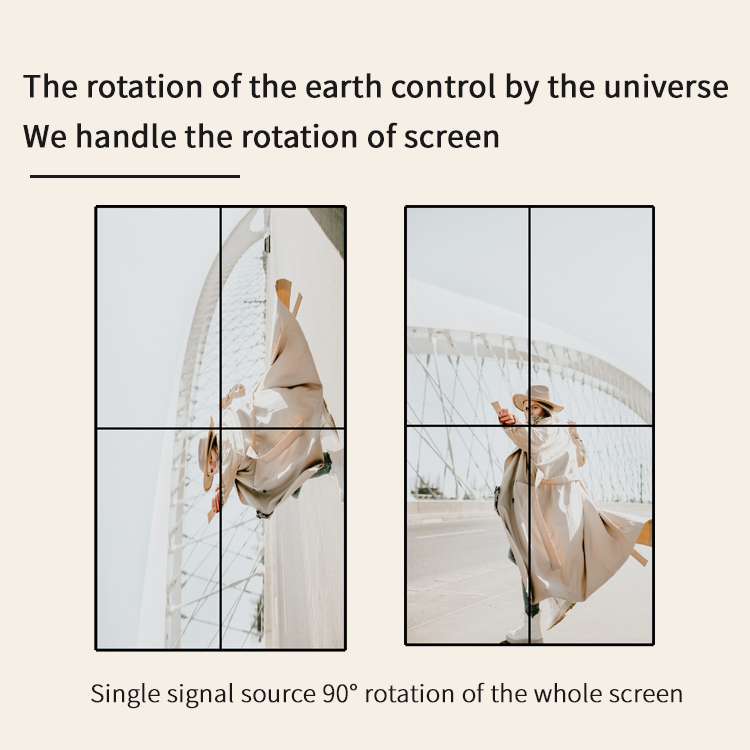

  • Input supports full screen rotation of 90° in single-picture mode
  • Output supports 180° rotation for the first line in two-line stitching mode
  • Single display mode (1x1) support
  • Infrared remote control and serial RS232 control compatibility
  • Low power consumption with conductive heat dissipation
  • No external cooling required with high reliability
  • Supports computers, Android boxes, game consoles and other input sources
  • DHCP function for automatic IP address assignment in multi-device setups
Product Images
BIT-VWC-409R product detail view BIT-VWC-409R interface layout BIT-VWC-409R connectivity diagram BIT-VWC-409R technical specifications BIT-VWC-409R installation guide BIT-VWC-409R application scenarios
Customer Reviews
BIT-VWC-409R customer reviews and ratings
Frequently Asked Questions
Does it support RS232 control?
Yes, RS232 control is supported.
What power supply specifications are available?
American, British, European, South African and Chinese specifications are available.
Do both input and output support 4K?
The 4th HDMI input port and 5th DP input port support 4K@60Hz. Output single port supports 1080P@60Hz, with the output supporting whole screen 4K60Hz display.
What is the maximum wiring distance supported?
Input supports HDMI up to 3 meters, and output supports HDMI up to 10 meters.
How many input sources can be displayed simultaneously?
It can support 4 input sources displayed on the video wall simultaneously.
Why Choose Bitvisus?
  • Own warehouse ensuring shipping within 48 hours after payment (excluding weekends and holidays)
  • OEM/ODM services available for custom requirements
  • Leading manufacturer in the video wall controller field
Ordering Process
Contact via email or chat platforms with your requirements. We will provide a proforma invoice, and goods will be delivered promptly after payment confirmation.
Warranty & Support
12 months warranty with lifetime service support. Returns and exchanges available for faulty, damaged, or incorrect models.
Payment & Shipping
T/T, Visa, PayPal, Western Union, L/C accepted. Shipping via DHL, UPS, EMS, FedEx, air freight, and sea freight.
Company Profile
Bitvisus Technology manufacturing facility Bitvisus Technology production line Bitvisus Technology quality control Bitvisus Technology team
Technical Specifications
SpecificationDetails
Product NameBIT-VWC-409R
Input Interface Maximum Video Pixel Frequency600MHz
Output Interface Maximum Video Pixel Frequency165MHz
Maximum Input Resolution3840*2160@60Hz
Maximum Output Resolution1920*1080@60Hz
Input Interface1*DP1.2, 1xHDMI2.0, 3xHDMI1.4
Output Interface9xHDMI1.3
Factory Default ResolutionHDMI: 3840*2160@30Hz, DP: 3840*2160@60Hz
Control ModeIR Control, RS232, PC
Power Specification12V@2A
Dimensions270mm x 143.5mm x 20.5mm (L x W x H)
BIT-VWC-409R dimensional diagram
