Insulation Materials ASTM C518 ASTM E1530 Thermal Conductivity Tester

Insulation Materials ASTM C518 ASTM E1530 Thermal Conductivity Tester

Insulation Materials ASTM C518 ASTM E1530 Thermal Conductivity Tester
Insulation Materials ASTM C518 ASTM E1530 Thermal Conductivity Tester
Categories Flammability Test Equipment
Brand Name: GOLD
Model Number: GD-ASTM C518
Certification: ISO
Place of Origin: China
MOQ: 1 set
Price: USD9000-9500/set
Payment Terms: L/C,T/T,,MoneyGram
Supply Ability: 5sets per month
Delivery Time: 30 days
Packaging Details: Exported standard packaging
Product: ASTM C518 Thermal Conductivity Tester
Standard: ASTM E1530,ASTM C518,ISO 8301
Size: 550×450×1500mm
Measurement time: 15–20 min
Sample thickness: Automatic measurement 0～50mm
Temperature control accuracy: 0.1℃
Test materials: solid, powder
Pressure range: 0～1000N
Contact Now
Company Info.
Chongqing gold mechnical and electrical equipment Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Insulation Materials ASTM C518 ASTM E1530 Thermal Conductivity Tester

Insulation Materials ASTM C518 ASTM E1530 Thermal Conductivity Tester
This advanced thermal conductivity testing instrument utilizes the internationally recognized heat flow meter method to accurately measure thermal conductivity and thermal resistance. The system features computer-aided automation for comprehensive testing and report generation.
Testing Principle
The instrument applies a stable hot surface temperature to one side of the sample. Heat transfers through the sample to the cold surface, and thermal conductivity/resistance values are calculated by measuring the transferred heat flow. With imported sensors and advanced computer technology, the system delivers high measurement accuracy, exceptional reliability, and excellent repeatability.
Compliance Standards
  • GB/T10295
  • ASTM E1530
  • ASTM C518
  • ISO 8301

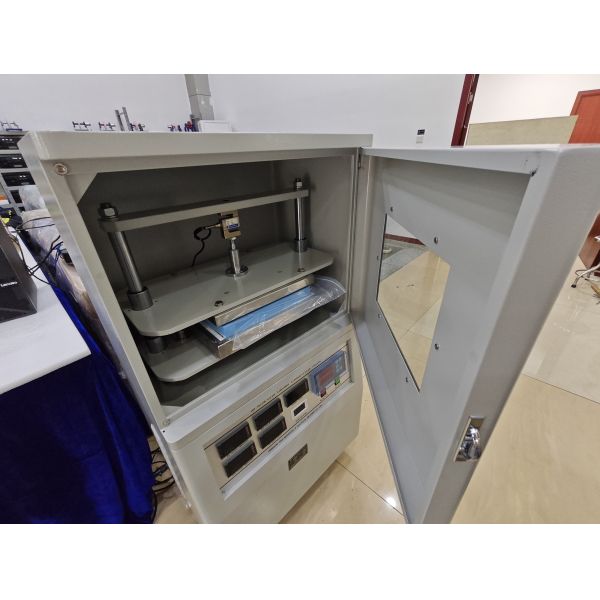

Thermal Conductivity Tester equipment showing measurement interface and sample placement
Technical Specifications
Thermal Conductivity Range0.0001~1W/mk (accurate to 0.1mW/mk)
0.001~300W/mk (auto-ranging)
Measurement Accuracy1%
Sample Size50×50~150×150mm, 150×150~300×300mm (standard)
Custom sizes: 600×600mm, 800×600mm available
Sample ThicknessMaximum 50mm
Material CompatibilitySolid materials and powdered materials
Measurement Time15-20 minutes
Hot Surface TemperatureRoom temperature~99.9°C (standard)
Options: Room temperature~299.9°C, Room temperature~499.9°C
Cold Surface Temperature0~99.9°C (standard)
Options: -10~99.9°C, custom lower temperatures available
Sample Clamping Pressure0~1000N, resolution 0.1N
Thickness Measurement0~50mm, resolution 1μm
Power Supply220V, 50Hz, 1KW
ASTM C518 Thermal Conductivity Tester main unit with detailed component view
Standard Configuration
  • One host machine
  • Analysis software (Chinese and English versions)
  • HX-1005 precision low-temperature constant temperature water tank (0.01°C accuracy)
  • Computer (user-selectable)
  • Standard sample
Dimensions & Weight
Main Unit550 × 450 × 1500 mm, 100 kg
Precision Water Tank300 × 350 × 530 mm, 35 kg
Technical Support
One-year warranty, long-term technical service, and free lifetime software upgrades.
ISO 8301 compliant thermal conductivity testing demonstration
