"Flash evaporation" means Flash Dryer in English, that is, rapid evaporation. This model was successfully developed in 1970. At that time, it was introduced to solve the problem of high viscosity, slurry materials, moisture-absorbing crystalline products and drying of sludge and filter cakes in chemical industry. This model has played its unique role in the drying process of such materials. In the next few decades, through the continuous improvement of scholars and enterprises, the rotary flash dryer has reached the perfect state in our company. Yidu people have the ability, confidence and interest to research and develop the application and promotion of rotary flash evaporation in all walks of life!

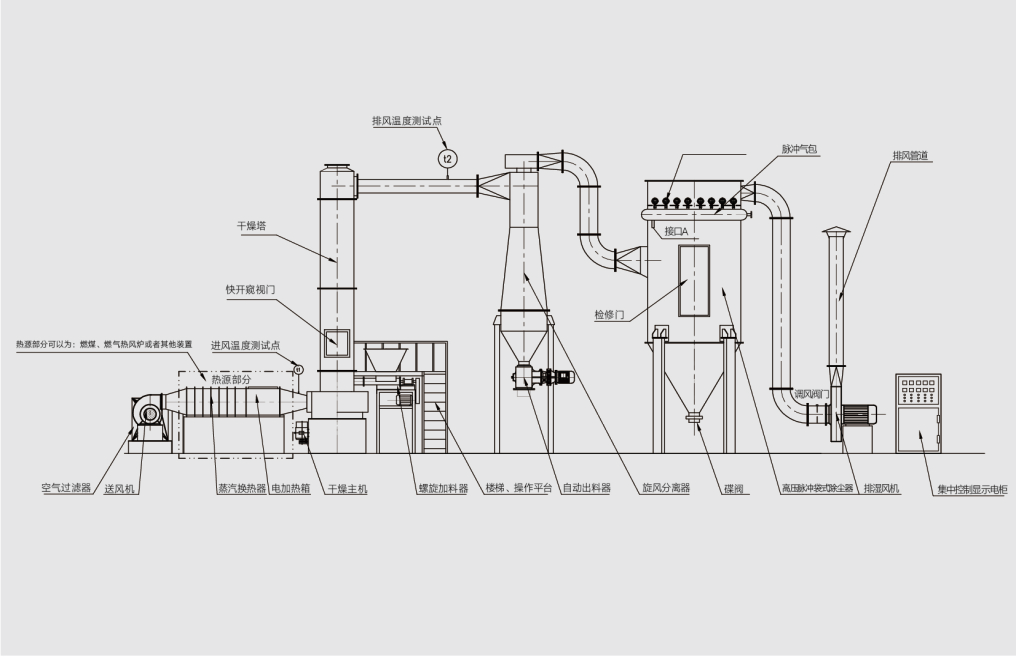

After air filtration, the cold air is sent to the air heater by the blower, and the heated air enters from the bottom of the drying tower at a suitable wind speed, which has strong shearing, blowing, rotating and crushing (external mechanical force) with the wet material added by the screw feeder (installed on the drying tower). This process air transfers heat to the moisture in the material. Vaporization occurs after the wet moisture of the material absorbs heat, and at the same time, air carries moisture into cyclone separator and pulse bag dust collector under the action of induced draft fan for gas-solid separation and evacuation.
| 型号 Type | 筒体直径(mm) Barrel diameter | 主机尺寸 Main machine dimensions | 主机功率(kw) Main machine power | 处理风量(m³/h) Air volume | 蒸发水量(kg/h) Barrel diameter | 占用面积(mm²) Main machine dimensions | |
| XSG-2 | 200 | 250*2800 | 0.75-2.2 | 300-800 | 10-20 | 3500*2500 | |
| XSG-3 | 300 | 400*3300 | 3-4 | 600-1500 | 20-50 | 3800*2700 | |
| XSG-4 | 400 | 500*3500 | 4-7.5 | 1250-2500 | 25-70 | 4000x3000 | |
| XSG-5 | 500 | 600*4000 | 5.5-11 | 1500-4000 | 30-100 | 4200*3200 | |
| XSG-6 | 600 | 700*4200 | 7.5-18.5 | 2500-5000 | 40-200 | 4250x3250 | |
| XSG-8 | 800 | 900*4600 | 11-18.5 | 3000-8000 | 60-600 | 4250*3500 | |
| XSG-10 | 1000 | 1100*5000 | 15-30 | 5000-12500 | 100-1000 | 1750x3750 | |
| XSG-12 | 1200 | 1300*5200 | 15-37 | 10000-20000 | 150-1300 | 5000*4000 | |
| XSG-14 | 1400 | 1500*5400 | 30-55 | 14000-27000 | 200-1600 | 5250x4250 | |
| XSG-16 | 1600 | 1700x6000 | 45-75 | 18700-36000 | 250-2000 | 5500x4500 | |
| 有机物 Organic compounds | 阿特拉津(农药杀虫剂),月桂酸隔,苯甲酸,安息香酸,杀菌单,草酸钠,醋酸纤维等； Atrazine (pesticide), lauric acid,benzoic acid,benzoic acid,germicide ,sodium oxalate, cellulose acetate, etc. | ||||||
| 燃 料 物 Dyestuff | 蒽醌,黑色氧化铁,靛蓝颜料,丁酸,氢氧化钛,硫化锌,各种偶氮染料中间体. Anthraquinone,black iron oxide,indigo pigment,butyric acid,titanium hydroxide, zinc sulfide,various azo dye intermediates. | ||||||
| 无机物 Inorganic compounds | 硼酸,碳酸钙,氢氧化物,硫酸铜,氧化铁,碳酸钡,三氧化锑,各种金属氢氧化物, 各种重金属盐,合成冰晶石等； | ||||||
| Boric acid,calcium carbonate,hydroxide,copper sulfate,ron
oxide,barium carbonate, antimony trioxide, various metal hydroxides, various heavy metal salts,synthetic cryolite,etc. | |||||||
| 食品类 Foodstuff | 大豆蛋白,胶凝淀粉,酒糟,小麦糖,小麦淀粉等. Soybean protein,gelatinized starch,distiller's grains,wheat sugar,wheat starch,etc. | ||||||
| 类别 Item | 物料名称 Name | 干前物料水分含量:% Primary moisture | 干后物料水分含量:% Final moisture | 使用设备型号 Used model | ||||||||
| 近期热门物料 Recent hot materials | 碳纳米管Carbon nano tube | 80 | 0.3 | XSG-8+XG-900 | ||||||||
| 硫酸锂Lithium sulphate | 45 | 8 | XSG-10+XG-1200 | |||||||||
| 碳酸锂Neurolithium | 10 | 0.3 | XSG-10,XSG-16 | |||||||||
| 磷酸铁Iron phosphate | 50 | 2 | XSG-10,XSG-12,XSG-14 | |||||||||
| 石墨烯Graphene | 82 | 0.3 | XSG-1000,XSG-1200 | |||||||||
| 农药和农药中间体 Agrochemical and quizalofoppethyl | 农药 Agrochemical 中间体 Quizalofoppethyl | 草甘膦Gly phosate | 12 | 0.5/0.02 | XSG-6,XSG-8,XSG-12,XSG-14 | |||||||
| 阿特拉津Atrazine | 40 | 1 | XSG-6,XSG-8,XSG-12,XSG-14 | |||||||||
| 莠灭津Ametryn | 35 | 1 | XSG-6,XSG-8 | |||||||||
| 扫螨净Pyridaben | 20 | 1 | XSG-6,XSG-8 | |||||||||
| 阿维菌素Abamection | 80 | 15 | XSG-12,XSG-14 | |||||||||
| 代森锰锌Mancozeb | 30 | 1 | XSG-10,XSG-12 | |||||||||
| 精喹禾灵Quizalofoppethyl | 40(湿份:酒精或甲苯) (moisture:alconol or tol | 1 | XSG-4 | |||||||||
| 三环唑Tricyelazole | 28 | 1 | XSG-4 | |||||||||
| 甲酸钙Calciu um formate | 12 | 1 | XSG-6 | |||||||||
| 杀虫单Monosultap | 18 | 1 | XSG-6,XSG-8,XSG-10 | |||||||||
| 巴丹Padan | 20 | 1 | XSG-6,XSG-8 | |||||||||
| 氢氧化铜Cupric hydroxide | 35 | 1 | XSG-8 | |||||||||
| 间苯二甲腈m-phthaloitile | 25 | 1 | XSG-6,XSG-10 | |||||||||
| 二氢基化合物Dihydroxyl compound | 12 | 1 | XSG-4 | |||||||||
| 咪唑烷Imidazolidintl | 25-30 | 0.2 | XSG-10 | |||||||||
| 盐化合物单质类 salt compunds single quality category | 无机盐类 Agrochemical | 活性碳酸钙Active sodit m cbrbonatr | 22 | 3 | XSG-8,XSG-12,XSG-14 | |||||||
| 纳米碳酸钙Nano-sodi im cbrbonatr | 40 | 1 | XSG-8,XSG-10 | |||||||||
| 普通碳酸钙Ordinary sodiim carbonate | 20 | 2 | XSG-8,XSG-10 | |||||||||
| 碳酸锌Zinc carbonate | 65 | 1 | XSG-8 | |||||||||
| 磷酸氢钙Calcium car | 40 | 1.8 | XSG-8 | |||||||||
| 焦磷酸铁Copper copper | 35 | 2 | XSG-8 | |||||||||
| 碳酸氢钠Sodium bicarbonate | 8 | 0.5 | XSG-8 | |||||||||
| 硬脂酸钙Calcium stearate | 35 | 2 | XSG-8 | |||||||||
| 氯化钙Calcium chloride | 12 | 2 | XSG-8 | |||||||||
| 硫酸钙Calcium sulfate | 12 | 2 | XSG-8 | |||||||||
| 硫酸钡Barium sulfate | 20 | 0.5 | XSG-10 | |||||||||
| 焦亚硫酸钠Sodim pyrost Ifite | 8 | 0.5 | XSG-10 | |||||||||
| 有机盐 Organic salts | 4A沸石4A zeolite | 28 | 2 | XSG-10 | ||||||||
| 硫酸钠Sodium | 20 | 3 | XSG-8 | |||||||||
| 硬脂酸钡Barium stearate | 40 | 0.5 | XSG-4 | |||||||||
| 硬脂酸锌Zinc stearate | 40 | 0.5 | XSG-4 | |||||||||
| 硬脂酸铝Alurminum stearate | 45 | 2 | XSG-4 | |||||||||
| 硬脂酸镁Magnesium stearate | 40 | 1 | XSG-4 | |||||||||
| 硬脂酸钙Calcium stearate | 40 | 2 | XSG-8 | |||||||||
| 化 合 物 和 单 质 Compounds and simple substance | 三盐基硫酸铅Lead sulfate tribasic | 25 | 0.5 | XSG-8 | |||
| 二盐基硫酸铅Basic lead sulfate | 25 | 0.5 | XSG-8 | ||||
| 碳化硅Sic | 26-30 | 1 | XSG-8 | ||||
| 硅粉Silica fume | 30 | 1 | XSG-10 | ||||
| 白炭黑Silica | 82 | 4-6 | XSG-10 | ||||
| 炭黑Carbon black | 70 | 3 | XSG-10 | ||||
| 活性炭Active carbon | 40 | 5.0 | XSG-8 | ||||
| 纳米氧化锌Zno | 55 | 4 | XSG-4 | ||||
| 氧化铝Alumina | 55 | 0.5 | XSG-4 | ||||
| 氧化锆Zirconia | 80 | 1 | XSG-8 | ||||
| 二氧化硅illica | 25 | 0.2 | XSG-4 | ||||
| 二氧铁红Lron oxide red | 60 | 1 | XSG-8 | ||||
| 其他 Other | 氢氧化铝Aluminum Hydroxide | 50-60 | 0.3 | XSG-10 | |||
| 氢氧化铜Cuprous Chloride | 35 | 1.0 | XSG-10 | ||||
| 高岭土Kaolin | 26-30 | 6 | XSG-10 | ||||
| 氯醚树脂Chlorinated Polyether Resin | 40-45 | 0.3 | XSG-14,XSG-6 | ||||
| 燃料,燃料和中间体Pigmen dyestuff and intermediates | 酞青蓝Fast blue | 40 | 0.5 | XSG-10 | |||
| 氧化铁红Iron oxide red | 45 | 2 | XSG-10 | ||||
| 活性黄Reactive yellow | 60 | 3 | XSG-8 | ||||
| 碱性嫩黄Basic yellow | 40 | 0.3 | XSG-8 | ||||
| 吡啶酮Pyridone | 25-30 | 0.3 | XSG-8 | ||||
| H酸H acid | 40-50 | 1 | XSG-14 | ||||
| J酸Jacid | 45 | 1 | XSG-10 | ||||
| 吐氏酸Tobias-acid | 15 | 1 | XSG-6 | ||||
| 硫化蓝Sulphur blue | 60 | 3 | XSG-6 | ||||
| 食品类 Foods | 豆沙Bean paste | 50 | 6 | XSG-14 | |||
| 马铃薯淀粉Potato strarch | 40-50 | 8 | XSG-6 | ||||
| 玉米淀粉Corn strarch | 40 | 13 | XSG-6 | ||||
| 叶酸Folic acid | 50 | ≤6 | XSG-6 | ||||
| 氨基酸Amino acid | 16 | 3 | XSG-4,XSG-10 | ||||
| 饲料类 Feeds | 活性碳酸钙Active calcium carbonate | 28 | 3 | XSG-12 | |||
| 合成豆粕Synthesis soybean meal | 45 | 13 | XSG-14 | ||||
| 天然豆粕Natural soybean meal | 65 | 13 | XSG-8 | ||||
| 蛋白酶Pratease | 30 | 8 | XSG-10 | ||||
| 生物饲料Biology Fead | 40 | 13 | XSG-10 | ||||
| 其他方面 Other | 4A分子筛4A Molecvlar sieve | 30 | 5 | XSG-4,XSG-10 | |||
| 城市污泥Municipal sewage sludge | 30 | 6 | XSG-8 | ||||
| 四溴双酚Tetrabromobisphenol | 8 | 0.05 | XSG-8,XSG-10 | ||||
| 腐植酸Humic acid | 30 | 11 | XSG-6 | ||||
| 发泡剂H Blowing agent | 30-40 | 0.5 | XSG-8 | ||||
| OBSH | 18-25 | 0.5 | XSG-6 | ||||
|
