| Categories | Modular UPS Systems |
|---|---|
| Brand Name: | Soeteck |
| Model Number: | SY-M |
| Certification: | CE, ISO, UL |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | To Be Negotiated |
| Payment Terms: | D/A |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Delivery Time: | 2-4W |
| Packaging Details: | Cartons, Wooden boxes |
| Waveform: | Sine wave or Simulated sine wave |
| Backup Time: | 5 to 60 minutes depending on load |
| Type: | Power Backup Device |
| Battery Type: | Sealed Lead Acid (SLA) or Lithium-ion |
| Output Voltage: | 380-415 VAC |
| Communication Ports: | RS232、RS485、 Contact point, SNMP card, EPO, generator interface |
| Operating Temperature: | 0°C to 40°C |
| Input Voltage: | 304-415 VAC |
| Noise Level: | Less than 66 dB |
| Protection grade: | IP20 |
| Display: | LCD LED, Touch screen control panel |
| Efficiency: | ≥ 95% |
| Company Info. |
| HEFEI SHUYI DIGITAL POWER CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

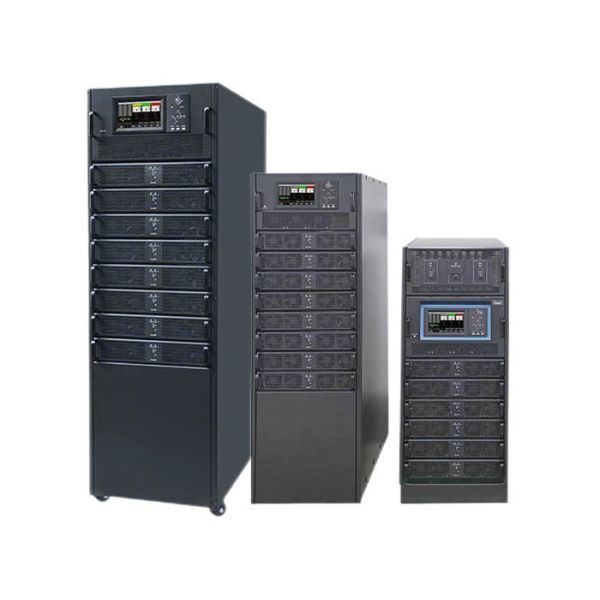

Combining rack-mount and standalone tower installation options, the Online Modular UPS-Rack and Tower Mountable is tailored for large-scale critical power scenarios—including enterprise-level data centers, cloud computing nodes, and high-density server clusters. It balances high-capacity output (100kVA to 200kVA) with flexible deployment, making it an ideal choice for applications where both power scalability and space adaptability are paramount.
Leveraging 25kVA and 30kVA hot-swappable power modules, it enables smooth capacity expansion from 100kVA to 200kVA without disrupting running loads. Its dual-mount design (fitting 19-inch standard racks or standing independently) adapts to diverse facility layouts, while advanced power conversion tech delivers up to 96% efficiency in normal mode and 98% in ECO mode. Compliant with global safety standards, it integrates stable performance and flexible setup for long-term large-scale power protection.
| Model No. | System Capacity | Module Power | Input Voltage | Output Voltage | Efficiency | Wiring |
|---|---|---|---|---|---|---|
| SYM150/25C › | 150kVA | 25kVA × 6 | 304~485VAC(Line Voltage) fully loaded; 304~138VAC(Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC(Line Voltage) | 95.5%(Normal mode); 95%(Battery mode) | 3 phase N PE |
| SYM200/25C › | 200kVA | 25kVA × 8 | 304~485VAC(Line Voltage) fully loaded; 304~138VAC(Line Voltage) linear derating of load from 100% to 40% | 380/400/415VAC(Line Voltage) | 95.5%(Normal mode); 95%(Battery mode) | 3 phase N PE |
Built with 25kVA and 30kVA independent power modules, it scales capacity from 100kVA to 200kVA via hot-swapping—no system shutdown is required during module replacement or upgrades, ensuring uninterrupted power for high-density critical loads.
Supports 19-inch standard rack installation (compatible with 42U high-density cabinets) and standalone tower placement, adapting to the layout needs of large data centers, cloud computing nodes, and enterprise server clusters.
Delivers ≥96% efficiency in normal operating mode and ≥98% in ECO mode, cutting energy consumption for large-scale long-term operations. Its wide input voltage range adapts to unstable grid conditions, with linear derating ensuring consistent performance under partial loads.
Equips real-time tracking of load rate, module status, and battery health, with support for remote management protocols. It triggers audible/visual alarms for anomalies (overload, overvoltage), simplifying maintenance for large-scale power systems.
With diverse UPS series spanning industrial-grade resilience, highly scalable modularity, and smart space-efficient designs, Soeteck delivers fully personalized, industry-leading high-availability power solutions to safeguard all critical electronics with unwavering reliability.
1-60 kVA
rack/tower convertible, space-saving, cost-effective, suitable for small-to-medium devices.
1-600 kVA
3-phase unbalance allowed, high overload, ideal for critical industrial & healthcare scenarios.
1-1200 kVA
high-frequency, wide input range, high integration, fits small server rooms to large facilities.
20-1600 kVA
hot-swappable modules, N+X redundancy, flexible expansion for dynamic load demands.
|
