Electric Board Flexible PCB Printing Circuit Board

Categories	Flexible Membrane Switch
Wire Resistance:	≤ 1 Ohm/cm
Current Rating:	25-100mA, 0-30V DC
Work Voltage:	≤ 50V DC
Insulation Voltage:	≤ 100M Ohm 250V DC
Working Life:	≤ One Million Times
Work Temperature:	-40°C to 70°C
Work Humidity:	40°C to ≤ 98%RH
Base Material Voltage:	1500V DC
Dome Springback Time:	< 5 msec
Switch Travel:	Flat Type 0.05-0.3mm, Tactile Type 0.3-1.5mm
Tail Flexibility:	Any angle within 180 degrees
Material:	PET/PC
Adhesive Type:	3M467 & 3M468 or as per request
Life Cycle:	>1 million times
Insulation Resistance:	<100MΩ, 250V DC

Contact Now

Add to Cart

Company Info.

TKM MEMBRANE TECHNOLOGY LTD.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Electric Board Flexible PCB Printing Circuit Board

We specialize in comprehensive production processing with system integrity and stable technical personnel. Our company provides complete one-stop service solutions for flexible PCB manufacturing.

Flexible PCB circuit board close-up view

Product Structure & Layers

Overlay
Overlay adhesive
Dome retainer
Metal dome
Spacer adhesive
Circuit
Rear adhesive (customizable per request)

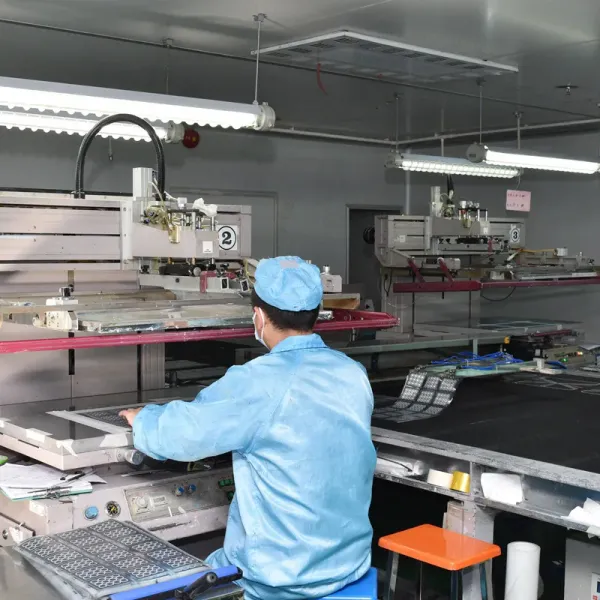

Production Capabilities

Our comprehensive manufacturing facility includes:

Screen Print Department
IR Tunnel & IR Oven
Thickness Tester
Laser Cutting Machine
Punching Department
Emboss Key Section
Assembly Line
Electric Testing
OQC Department
Virtual Aspect Testing
Punch Machine Department
PU Coating Section

Technical Specifications

Parameter	Specification
Wire Resistance	≤ 1 Ohm/cm
Current Rating	25-100mA, 0-30V DC
Work Voltage	≤ 50V DC
Insulation Voltage	≤ 100M Ohm 250V DC
Working Life	≤ One Million Times
Work Temperature	-40°C to 70°C
Work Humidity	40°C ≤ 98%RH
Basic Material Pressurization	1500V DC

Membrane Switch Features

Membrane Switch with windows
Touch feeling keys with embossing
Silk Screen Printing
Perfect exterior finish
Over 1 million life cycle

Product Details

Place of Origin	Dong Guan, China
Brand Name	Foundation
Model Number	HC-MS-002
Certification	ISO9001:2008, SGS, Rohs

Materials

Material: PET / PC
Adhesive: 3M467 & 3M468 or as per request
High lifetime: >1 million times
Certifications: ISO9001:2008, RoHS, SGS
High quality construction

Commercial Terms

MOQ	50pcs
Payment Terms	T/T or L/C
Mold Charge	100% in Advance
Sample Time	9-10 days after drawing approval
Lead Time for Production	15-22 days after sample approval

Applications

Our membrane switches are widely used in:

Medical Equipment
Telecommunications apparatus
Telephone systems
Household appliances
Security systems
Industrial controls

Detailed Specifications

Wire Lead Resistance	< 1Ω/CM	Life Time	> 1 Million times
Rated Current	25-100mA, 0~30V DC	Operation Temperature	-40ºC ~ 70ºC
Rated Voltage	< 50V, DC	Operation Humidity	at 40ºC, < 98%RH
Insulation Resistance	< 100MΩ, 250V DC	Dome Springback Time	< 5 msec
Switch Travel (Flat Type)	0.05-0.3mm	Base Material Voltage Withstand	1500 V DC
Switch Travel (Tactile Type)	0.3-1.5mm	Tail Flexibility	Any angle within 180 degree

Company Advantages

Experienced Leadership
Top managers with extensive experience in the same field

Professional Team
Skilled staff and dedicated workers

Strong R&D Capability
Advanced research and development resources

Quick Delivery
Efficient production and timely shipping

Competitive Pricing
Cost-effective solutions without compromising quality

Production Capacity
Two factories available for handling large orders

Expert Sales Team & Customer Service
Contact us for more information and detailed discussions about your specific requirements.
