Control Feel Smooth Flexible PCB Board Flexible Printed Circuit

Categories	Flexible Membrane Switch
MOQ:	100
Model NO.:	HC-FPC-006
Material:	Synthetic Fiber
Flame Retardant:	V2
Mechanical Rigid:	Rigid
Processing Technology:	Electrolytic Foil
Base Material:	Copper
Insulation Materials:	Epoxy Resin
Size:	289.00mm * 216.00mm
Key Count:	136 Keys
Connector Type:	65pin (Zif)
LED Count:	12PCS
Wire Resistance:	≤ 1 Ohm/cm
Current Rating:	25-100mA, 0-30V DC
Work Voltage:	≤ 50V DC
Insulation Voltage:	≤ 100M Ohm 250V DC

Contact Now

Add to Cart

Company Info.

TKM MEMBRANE TECHNOLOGY LTD.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Control Feel Smooth Flexible PCB Board Flexible Printed Circuit

Flexible PCB Board close-up view showing circuit details

Flexible PCB Board application in electronic device

Flexible PCB Board manufacturing process

Flexible PCB Board technical specifications

Flexible PCB Board custom design options

We are a professional manufacturing company with comprehensive production systems, stable technical personnel, and the capability to provide complete one-stop service solutions.

Layer Structure

Overlay
Overlay adhesive
Dome retainer
Metal dome
Spacer adhesive
Circuit
Rear adhesive (available upon customer request)

Production Capabilities

Our comprehensive manufacturing facility includes:

Screen Print Department
IR Tunnel and IR Oven
Thickness Tester
Laser Cutting Machine
Punching Department and Punch Machine
Emboss Key Section

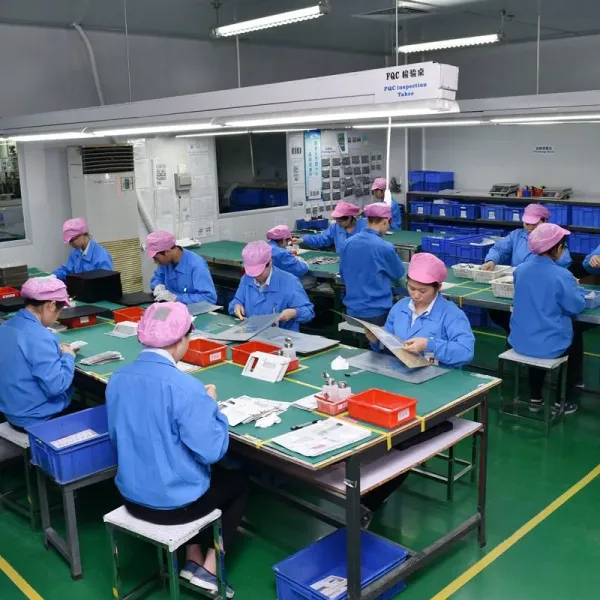

Assembly Line
Electric Testing and OQC Department
Virtual Aspect Testing
PU Coating Section

Technical Specifications

Wire Resistance	≤ 1 Ohm/cm
Current Rating	25-100mA, 0-30V DC
Work Voltage	≤ 50V DC
Insulation Voltage	≤ 100M Ohm 250V DC
Working Life	≤ One Million Cycles
Work Temperature	-40°C to 70°C
Work Humidity	40°C - ≤ 98%RH
Basic Material Pressurization	1500V DC

Competitive Advantages

Design & Aesthetics

Beautiful appearance with rich, vibrant colors
Fully customizable designs to reflect product individuality
Washable panel with durable color protection
Characters, logos, and panel contents remain intact without damage

Performance & Durability

Compact size, lightweight, and thin profile
Excellent tactile feedback and abrasion resistance
Convenient installation and connection
Superior tightness: moisture-proof, dust-proof, waterproof, oil-resistant
Corrosion and erosion resistant against harmful gases, acids, and alkalis
Earthquake and vibration resistant

Cost Efficiency & Reliability

Low manufacturing costs with integrated keyboard design
High lifespan exceeding 100 million cycles
Easy to operate with intuitive, safe, and reliable performance
100% functionally tested in-house
Guaranteed components without intermittent problems

Additional Technical Parameters

Insulation Resistance	<100MΩ, 250V DC
Contact Resistance	<1Ω/cm
Operating Voltage	≤ 50VDC
Working Current	25-100mA, 0-30V DC
Reliability/Service Life	>1 million times / Withstands millions of cycles
Operating Humidity	When 40°C, <98%RH
Spring Time	≤ 5ms
Substrate Voltage	2000V DC
Tail Flexibility	Any angle within 180 degrees
Switch Travel	Flat Type: 0.05-0.3mm / Tactile Type: 0.3-1.5mm

Custom specifications available with keys in various shapes. Contact us for more detailed information and to discuss your specific requirements.
