Hexagonal Wire Mesh PVC Coated Wire Mesh Hexagonal Wire Netting
Materials: low carbon steel wire and stainless steel wire
Weaving methods:
Hexagonal wire netting electro-galvanized before weaving
Hexagonal wire netting hot-dip galvanized before weaving
Hexagonal wire netting hot-dip galvanized after weaving
Hexagonal wire netting PVC-coated before or after weaving
Stainless steel hexagonal wire netting
Applications: used for reinforcement, protection and heat
preservation
Application areas: construction, chemical, cultivation, food
processing, fishing industry and gabion box
Hole: 3/8 to 4 inches
Wire diameter: 0.38 to 3.6mm
Width: 0.2 to 2.2m
Weaving method:
Hexagonal wire netting electro galvanized before weaving
Hexagonal wire netting hot-dip galvanized before weaving
Hexagonal wire netting hot-dip galvanized after weaving
Hexagonal wire netting PVC-coated before or after weaving
Stainless steel hexagonal wire netting
| Specification of hexagonal wire netting | ||||||
| Specifications | Wire Diameter | Width | ||||
| Mesh(inch) | Size(mm) | Limit Error | BWG | Metric | Feet | Metric |
| 3/8" | 10 | 0.5 | BWG27-23 | 0.40-0.6mm | 1"-6" | 0.1-2m |
| 1/2" | 13 | -1.5 | BWG27-22 | 0.4-0.7mm | 1"-6" | 0.1-2m |
| 5/8" | 16 | -0.5 | BWG27-22 | 0.4-0.7mm | 1"-6" | 0.1-2m |
| 3/4" | 20 | -0.4 | BWG26-20 | 0.46-0.9mm | 1"-6" | 0.1-2m |
| 1" | 25 | 1.5 | BWG25-19 | 0.5-1.0mm | 1"-6" | 0.1-2m |
| 1-1/4" | 31 | -3 | BWG24-18 | 0.56-1.2mm | 1"-6" | 0.2-2m |
| 1-1/2" | 40 | -0.5 | BWG23-16 | 0.6-1.65mm | 1"-6" | 0.2-2m |
| 2" | 51 | -0.5 | BWG22-14 | 0.7-2.0mm | 1"-6" | 0.2-2m |
| 3" | 76 | -0.5 | BWG21-14 | 0.8-2.0mm | 1"-6" | 0.3-2m |
| 4" | 100 | -0.5 | BWG20-12 | 0.9-2.8mm | 1"-6" | 0.5-2m |
PVC Coated Hexagonal Wire Netting | |||
Mesh | Wire Gauge (MM) | Width | |
Inch | MM | - | - |
1/2" | 13mm | 0.6mm - 1.0mm | 2' - 2M |
3/4" | 19mm | 0.6mm - 1.0mm | 2' - 2M |
1" | 25mm | 0.7mm - 1.3mm | 1' - 2M |
1-1/4" | 30mm | 0.85mm - 1.3mm | 1' - 2M |
1-1/2" | 40mm | 0.85mm - 1.4mm | 1' - 2M |
2" | 50mm | 1.0mm - 1.4mm | 1' - 2M |

Application
Reinforcement of plaster, screed;
Reinforcement surface for laying ceramic tiles;
Reinforcement plates facade insulation in heavy plaster systems
(galvanized);
Production of gabions;
Mesh for chicken coop, enclosures for birds and animals;
For rabbits wire netting;
As garden fencing support for climbing plants;
Protection of trees, plants and crops;
Light fittings for sculptural works;
For protection against rockfall, strengthening the hillsides and
riverbanks.
Characteristics
1. Good Anti-Corrosion Performance:
The Galvanized Layer Can Effectively Isolate The Hexagonal Mesh
From Contact With The Atmosphere And Moisture, And Prevent The Mesh
Body From Being Corroded And Rusted.
2. Long Service Life:
The Zinc-Gold Layer Has Better Corrosion Resistance And Can Prolong
The Service Life Of The Hexagonal Mesh.
3. Beautiful Appearance:
The Galvanized Layer Is Uniform And The Brightness Is High, Which
Makes The Hexagonal Mesh Have A Better Appearance.
4. Easy Maintenance:
Galvanized Hexagonal Mesh Is Easier To Clean And Maintain During
Use, And It Is Not Easy To Accumulate Dust And Dirt.



Application
Application

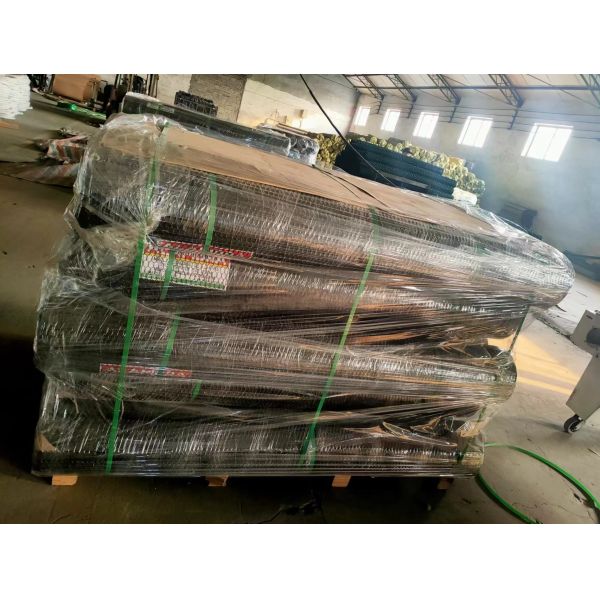

Normally each roll is packed with plastic water proof bags.black water proof paper, shrink wrapped or as the clients' requirement.


|
