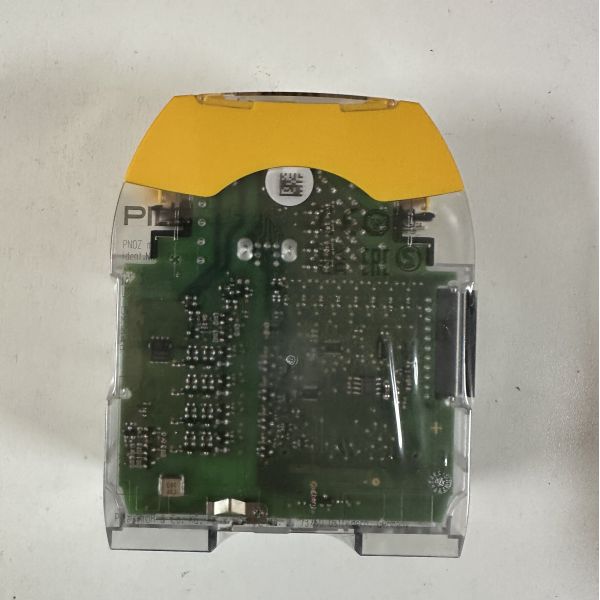

Pilz 772100 | PNOZmulti 2 Base Unit, 24V DC, Configurable Safety Controller

Pilz 772100 | PNOZmulti 2 Base Unit, 24V DC, Configurable Safety Controller

Pilz 772100 PNOZmulti 2 base unit. 24V DC supply, 20 safe inputs, 4 safe semiconductor outputs, configurable safety logic. DIN rail mount.

Product Overview

The Pilz 772100​ is the base unit for the PNOZmulti 2 configurable safety controller​ system. It serves as the central processing module for building modular machine safety systems. Operating on 24V DC, it provides 20 safe digital inputs​ and 4 safe semiconductor outputs. This unit is designed for flexible expansion with PNOZmulti 2 I/O modules and is programmed via PNOZmulti Configurator software to implement safety functions such as E-STOP, safety gates, and two-hand control.

Technical Specifications (Electrical & Functional)

Parameter

Specification

Product Family

PNOZmulti 2 (Configurable Safety System)

Article Number

772100

Supply Voltage U1

24 V DC​ (System Power)

Supply Voltage U2

24 V DC (Output Power)

Safe Digital Inputs

20

Safe Semiconductor Outputs

4

Configurable I/O

8 (Non-safe, for standard functions)

Safety Standards

EN ISO 13849-1 (PL e), EN/IEC 62061 (SIL CL 3)

Safety Logic

Configurable (Software-based)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Mounting

DIN Rail (35 mm x 7.5/15 mm)

Dimensions (W x H x D)

45 x 101.4 x 120 mm

Weight

Approx. 235 g

Operating Temperature

0 °C ... +60 °C

Storage Temperature

-25 °C ... +70 °C

Protection Rating

IP20 (Terminals), IP40 (Housing)

Connection

Plug-in Screw Terminal / Spring Clamp

Housing Material

Polycarbonate (PC)

Key Features

  • Modular Expandability:​ Base unit for the PNOZmulti 2 system, allowing expansion with additional I/O modules (e.g., 772101, 772110) for larger safety applications.

  • High Safety Level:​ Capable of achieving Performance Level e (PL e) and SIL 3 depending on the configuration and wiring.

  • Integrated Logic:​ Replaces multiple standalone safety relays with a single programmable unit, reducing cabinet space and wiring complexity.

Applications

  • Machine safety control systems (E-STOP circuits, safety door monitoring)

  • Presses, robots, and automated production lines

  • Retrofit and modernization of safety circuits
