10x Optical Zoom 2 Mega Pixels Universal Joint Gimbal with High-Precision Encoder FOC Control for Drones

10x Optical Zoom 2 Mega Pixels Universal Joint Gimbal with High-Precision Encoder FOC Control for Drones

10x Optical Zoom 2 Mega Pixels Universal Joint Gimbal with High-Precision Encoder FOC Control for Drones
10x Optical Zoom 2 Mega Pixels Universal Joint Gimbal with High-Precision Encoder FOC Control for Drones
Categories Drone Gimbal Camera
Brand Name: GS
Model Number: KHY10S90
MOQ: 1
Payment Terms: T/T
Supply Ability: 100
Delivery Time: 6~8
Price: Negotiable
CMOS SENSOR Pixel: 2 Mega pixels
Focal length: 5.15±5%~47.38±5%mm
Zoom method: electric zoom and continuously adjustable
Images: jpeg format; Multiple pixels for selection
Video: H.264, H.265 format; 1080P video stream
Storage capacity: 32G-128G TF card (FAT32 format)
Image output interface: network H.264 code stream output
Roll angle: - 45 ° to +45 °
Pitch angle: - 45 ° to +120 °
Yaw angle: - 280 ° to +280 °
Pitch and roll direction: ± 0.02 ° Horizontal direction: ± 0.03 °
Power consumption: dynamic 5w
Weight: 396± 10 g
Contact Now
Company Info.
Guangzhou Gesai Intelligent Electronic Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

10x Optical Zoom 2 Mega Pixels Universal Joint Gimbal with High-Precision Encoder FOC Control for Drones

10x Optical Zoom with 2 Million Pixels Universal Joint
The KHY10S90 is a single EO drone gimbal system integrating a 10x optical zoom camera with IRCUT function and high-precision professional 3-axis stabilized PTZ. It features network IP and HDMI dual output with IP control. The PTZ adopts high-precision encoder FOC control scheme, offering high stability, small volume, light weight, and low power consumption. The visible light camera uses a high-definition COMS sensor with 2 mega effective pixels. Both UART and IP can control the camera and PTZ, supporting local TF two-way video recording and photographing.
The device consists of a zoom visible light movement and a stabilized PTZ. The visible light video stream is stored inside the visible light movement, recorded by the TF card, and encoded and output to the image transmission module. The image transmission module transmits real-time video to the ground receiving terminal and receives ground control signals to control the PTZ and camera respectively.

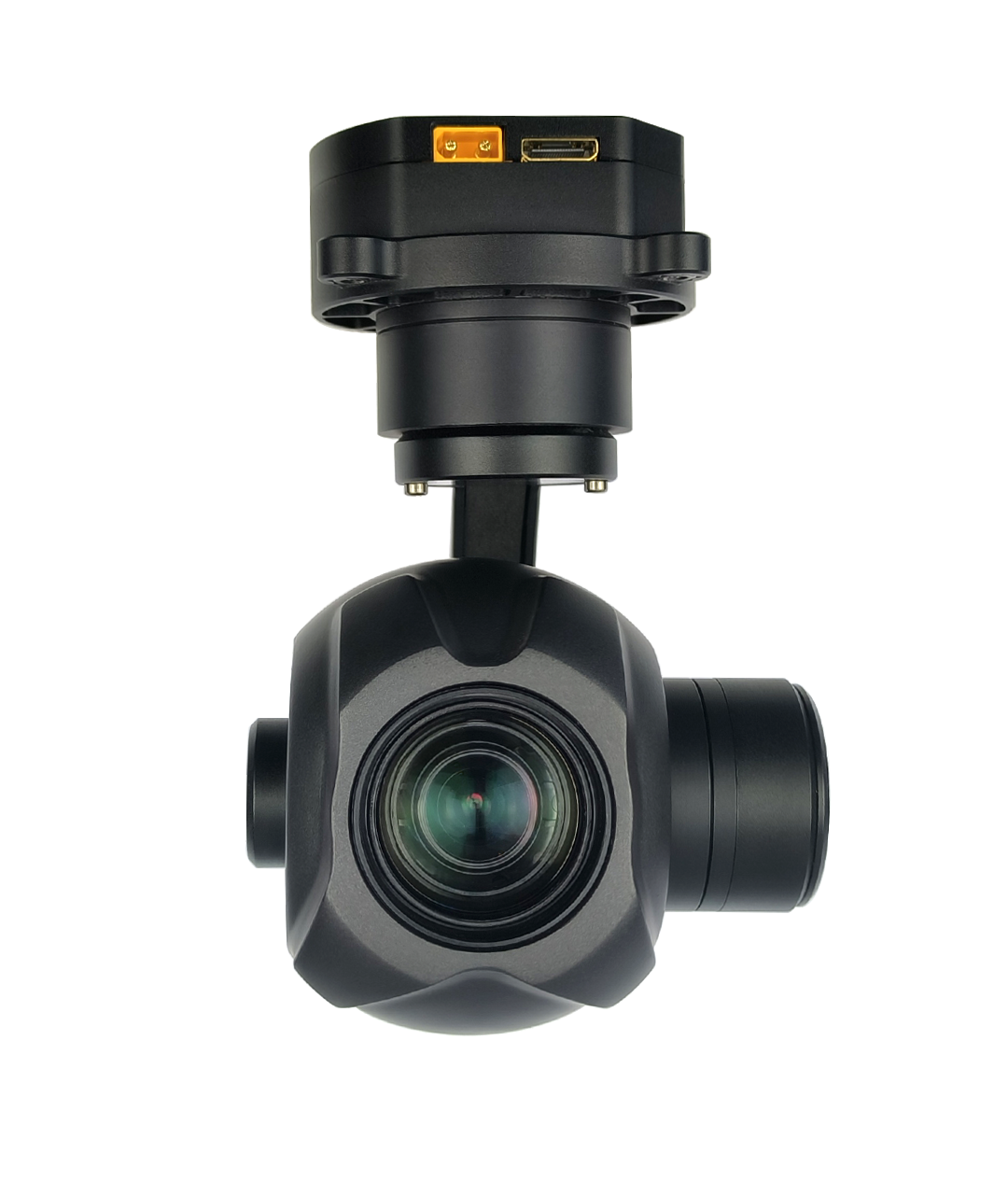

KHY10S90 drone gimbal system with 10x optical zoom camera and 3-axis stabilized PTZ
Use and Operation
Preparation and Inspection Before Use
  • Check whether the hanging structure of the dual optical gimbal is normal and whether there is obvious deformation or looseness
  • Check whether there is dirt on the lens. If present, wipe the lens with a lens cloth
  • After installing the gimbal, check whether the system mechanical installation is normal
  • Check whether the electrical connection of the system is normal
  • Ground check whether the imaging and function of the gimbal are normal
Safety Protection and Instructions
During product use, the power supply voltage shall not exceed the allowable range, and the product shall not be used in environments beyond the normal working load.
Operating Procedures
After the system is powered on normally, control operation is carried out with the mouse or touch screen through the UAV ground station software.
Inspection and Recording
Record problems encountered during use and save the corresponding image data.
Post-Use Procedures
After product use, disconnect the system power first, separate the pod from the fuselage in a static-free environment, and store it in a dry, ventilated environment. Place in the box if not used for extended periods.
Drone gimbal system installation and operation demonstration
Our Services
  • We provide 1 Year Warranty. Buy with confidence.
  • If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact us before returning.
  • If item is defective within 3 months, we will send a replacement without extra charge, or offer refund after receiving the defective item.
  • If item is defective after 3 months, you can still send it back to us. We will send a new one after receiving the defective item, but you must pay the extra shipping fee.
Customer service and support information for drone gimbal systems
Frequently Asked Questions
Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples.
A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.
Q3: What is the delivery time?
A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on quantity). In case of delays, we will notify you in advance.
Q4: What is the minimum order quantity?
A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.
Q5: What are your payment terms?
A5: L/C, TT 100%.
Q6: Can you reduce the shipping cost?
A6: We always choose the cheapest and safest express option. While we have partnerships with shipping companies, we cannot further reduce costs. You may choose your own shipping method if preferred.
Q7: Return policy.
A7: If you want to replace received items, contact us within 7 days after receipt. Returned items must be in original condition and you must pay additional shipping costs.
