| Categories | High Density Optical Connectivity |
|---|---|
| Place of Origin: | Guangdong , China |
| Brand Name: | Gracyfiber |
| Certification: | ISO9001 , ROHS |
| MOQ: | 1pieces |
| Name: | MPO Breakout Cable |
| Insertion loss: | ≤0.3 dB |
| Return loss: | ≥50 dB |
| Durability: | ≥1000 mating cycles |
| Operating temperature: | -40°C to 85°C |
| Fiber type: | Single-mode or Multi-mode |
| Connector type: | LC, MPO, or customized |
| Payment Terms: | L/C, T/T |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 100,000 pieces per month |
| Company Info. |
| Shenzhen Gracyfiber Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Low Loss MPO Breakout Cable For 100G Network
Gracyfiber MTP®/MPO Harness Cables are designed to deliver fast,
reliable, and scalable fiber breakout for high-density optical
networks.
Ideal for data centers, optical system access networks, and storage
area network fiber channel applications, these pre-terminated
harness assemblies simplify the connection between MTP®/MPO
backbones and standard duplex interfaces. With support for 40G and
100G network applications, multiple jacket options including LSZH,
OFNR, and OFNP, and configurations up to 144 fibers, they provide a
flexible solution for modern structured cabling deployments.
Customized products are also available to meet OEM and
project-specific requirements.
100% Factory-Terminated and Tested – Ensures stable optical performance before shipment, helping customers reduce field failures and accelerate deployment.
Fast Installation for High-Density Networks – Simplifies breakout from MTP®/MPO backbone cabling to duplex interfaces, saving installation time and reducing labor cost.
Supports 40G and 100G Applications – Built for high-speed network architectures, making it easier to deploy and upgrade parallel optical links.
Scalable Fiber Count Options up to 144F – Supports a wide range of cabling densities, giving customers more flexibility in data center and telecom infrastructure planning.
Available in LSZH, OFNR, and OFNP Jackets – Helps meet different installation and compliance requirements across global projects.

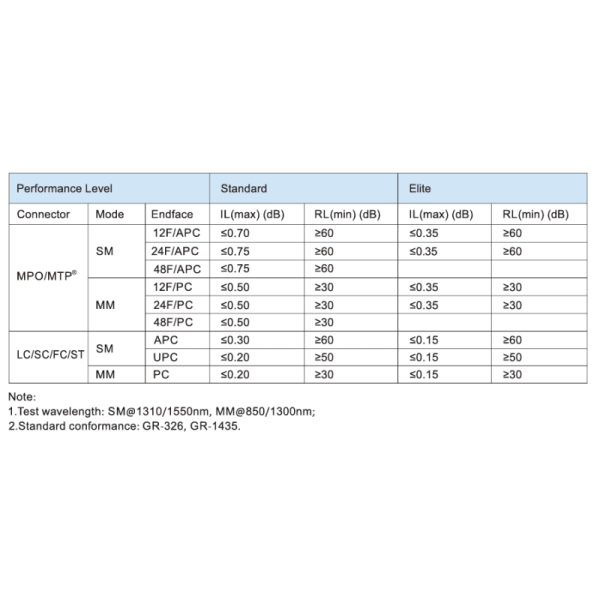

Standard and Elite Performance Available – Allows customers to choose the right optical performance level based on link budget, network design, and cost targets.
Low Insertion Loss Design – Supports better optical margin, improving link stability and overall transmission performance.
Customization Available – Ideal for OEM and B2B buyers requiring tailored connector types, fiber counts, cable lengths, polarity, and labeling.
Data center network cabling
Optical system access networks
Storage area network fiber channel
High-density structured cabling
40G/100G parallel optical interconnects
OEM / ODM optical connectivity solutions
|
