High speed soft and hard biscuit with cream or without cream flow packing machine

High speed soft and hard biscuit with cream or without cream flow packing machine

High speed soft and hard biscuit with cream or without cream flow packing machine
High speed soft and hard biscuit with cream or without cream flow packing machine
Categories Flow Packing Machine
MOQ: 1
Brand Name: LISON
Model Number: ZB400S
Certification: CE
Payment Terms: L/C,T/T
Delivery Time: 30working days
Name: Flow Packing Machine
Application: Biscuit packing
Type: Forming Filling Sealing Machine
Forming Species: Bag Moulding
Packaging Material: Film
Function: Food Horizontal Packaging
Bag Length: 60-300mm
Bag Width: 35-160mm
Bag Height: 5-60mm
Capacity: 30-300bags/Min.
Weight: About 550kgs
Voltage: 220V/50Hz
Motor: Three Sets Servo Motor
After-Sales Service: Engineers Available to Service Machinery Overseas
HS Code: 8422303090
Contact Now
Company Info.
Foshan Lison Machinery Co., Limited
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

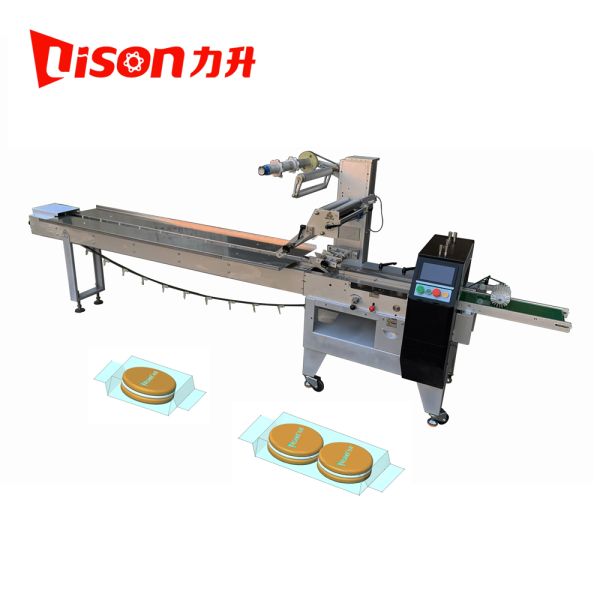

High speed soft and hard biscuit with cream or without cream flow packing machine

Biscuit flow packing machine

Product Parameter
ModelZB400S
Total power6.5kw
Voltage220V/50Hz
Dimension4000*930*1370mm
Net weight400kg
Capacity35-300bags/min.
Bag length60-300mm
Bag width35-160mm
Bag height5-60mm

Main Features

1. Display the packaging speed and length automatically, insuring cut-off accuracy.
2. User-friendly Imported PLC interface allowing for multilingual operation and access restriction features.
3. Comprehensive synchronization for date printer ( optional ) and feeding systems.
4. Servo motor controlled the cut length and film running. Servo motor realizing the step-less control, dynamic adjustment in operation.
5. High sensitivity photoelectric eye color tracking, numerical input of cutting sealing position for extra accuracy.
6. Adjustable bag former, could set short and long distance between fork spreader settings, which are convenient for changing product.
7. New type vertical seal heating, can seal at a low temperature and avoid burning film effectively.
8. Simple driving system, reliable working, convenient maintenance.
9. Auto splice device for plastic film. When one film is finished, the other film can be connected full automaticlly.
10. The reasonable and scientific design of nitrogen charging system has perfect penumatic results. Prevent material cutting, effectively.
11. CE Certification. Adopted multiple security protective measures to ensure the safety production.
12. Humanization design, without hygienic angle, is easy to clean.

Packing and Shipping
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
High Speed 300bag Per Minute Chocolate Bar Cream Biscuit Food Flow Packaging Machine
Shipment: Within 30 working days from the date of receipt the down payment.
Usually by sea, but can also according to customer requirements.


Foshan Lison Machinery Co., Limited

High Speed 300bag Per Minute Chocolate Bar Cream Biscuit Food Flow Packaging Machine
Service

We also have pre-sales and after-sales service after the order has been successfully placed.Pre-sales will meet the customer's needs. The customer team can come and inspect the machine equipment and debug the production line until the customer is satisfied.

After the after-sales service, after the customer receives the goods, we can also install the debugging, the machine guarantee a year.


FAQ
1.Q: How is the payment?
A: We accept 40% T/T deposit before production and 60% T/T balance before shipment.
And L/C.
2.Q: How long is your guarantee time?
A: We have a guarantee period of 15 months from the date of shipment.
3.Q: What is the mini order quantity?
A: One set.
5.Q: What information does the quotation require?
A: --What is your product?
--What packing speed you need?
