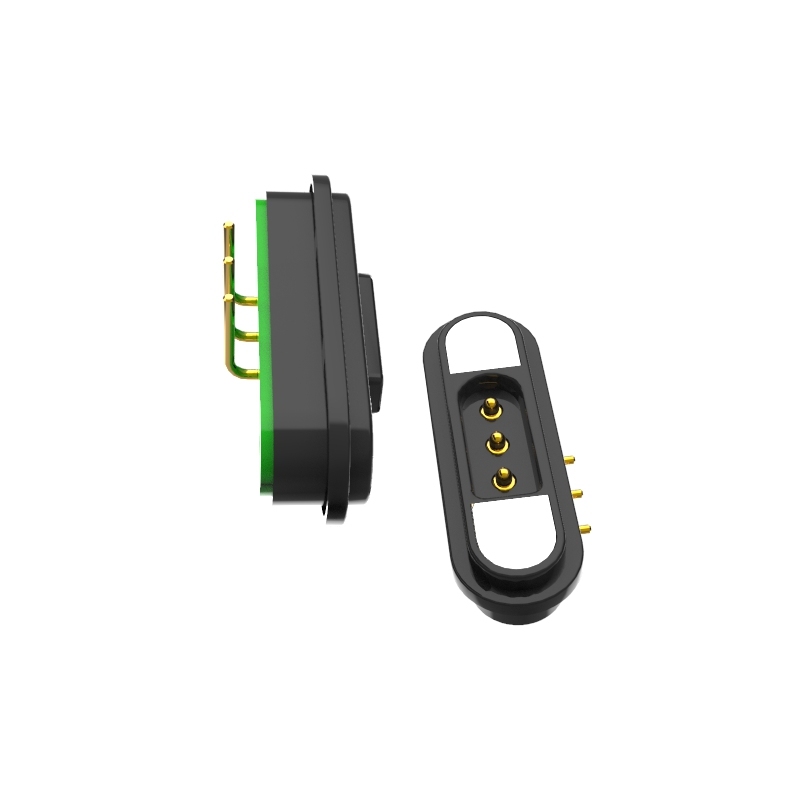

3pin 2.8mm pitch male and female right angle pogo pin pcb magnetic connector

3pin 2.8mm pitch male and female right angle pogo pin pcb magnetic connector .

UPE – Professional Magnetic Connector & Cable Manufacturer | Custom Solutions

UPE is a leading manufacturer of high-performance magnetic connectors and magnetic cable connectors, specializing in innovative, reliable, and customizable connectivity solutions.

Materials:
-Insulator: HTN+30% UL94 V-0 black

-Magnet: Neodymium iron boron

Mechanical:

-Contact force:80g±20g at 1.0mm working storke

-Male and female adsorption Life test: 50,000cycle

-Adsorption capacity test:The parent docking adsorption is more than 600G

Electrical:

-Reference voltage:12V,
-Continuous working current: 5.0 A;
-Contact static impedance of the needle:50mΩ Max (PIN).
-High voltage test: AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.

Environmental performance:

-Environmental Test: Salt Spray 48 hours

3Pin Male Magnetic Connectors & Female Magnetic Connector Parameter:

3Pin Male Magnetic Connector Technical Drawing

3Pin Female Magnetic Connector Technical Drawing

Advantages of Magnetic Connector:

1. Effortless Connectivity
✔ Automatic Adsorption – Smart, user-friendly design enables instant and secure connections with magnetic alignment.
✔ Anti-Fall Protection – Easily detaches from the charging interface while keeping devices stable, reducing accidental drops.

2. Unmatched Durability
✔ Extended Lifespan – Rated for 100,000–200,000 cycles, ensuring long-term reliability.
✔ IPX8 Waterproof & Dustproof – Female end designed for harsh environments (submersion up to 1M for 30 mins).

3. High-Performance Charging & Data Transfer
✔ Fast Charging (5A–10A) – Supports high-current transmission for rapid power delivery.
✔ High-Speed Signal Transmission – Replaces traditional USB 2.0/HDMI 1.3, enabling Video/Audio signal transmission with stable high-frequency performance.

4. Customizable & Safe Design
✔ Aesthetic Flexibility – Tailored appearance to match your device’s design language.
✔ Anti-Short Circuit & Foolproof – Built-in protection against misuse and electrical faults.

Magnetic connector products application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)
