FR4 OSP Surface Multilayer Printed Circuit Board 4 Layer PCB Board OEM ODM

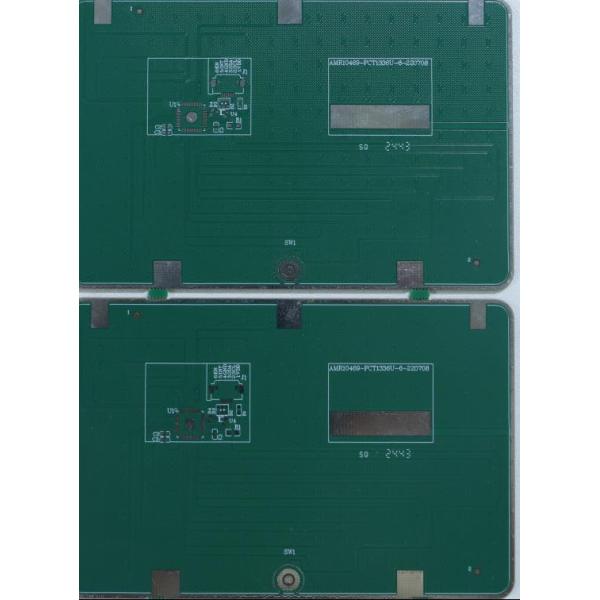

FR4 OSP 4-layer board PCB

Advantages of Multilayer PCB:

• Increase circuit board density
• Reduce size
• Better signal integrity
• Adapt to high-frequency applications
• better thermal management
• Higher reliability

product Description:

FR4 OSP 4-layer board PCB Multilayer PCB is a printed circuit board composed of three or more layers of circuits. Each layer of circuits is composed of different circuit layers, and these layers are connected together through vias or interconnecting lines. Compared with single-sided and double-sided PCBs, multi-layer PCBs can achieve more circuit wiring in a smaller space and are suitable for more complex and function-intensive circuit designs.

product Features:

• Multi-layer design
• Inner layer and outer layer
• through hole
• Copper layer
• Dielectric layer (dielectric material)

Manufacturing process:

• Design and layout: During the design phase, engineers use PCB design software to lay out and route multilayer circuit boards, determining the functions of each's circuit and the interconnection method between layers.
• Lamination: During the manufacturing process, multiple circuit layers are pressed together through a lamination process, with each layer separated by an insulating material. lamination process is typically carried out under high temperature and high pressure conditions.
• Drilling and electroplating: Through-hole connections between different layers of the circuit are formed by drilling technology, and then electroplating is carried out ensure the conductivity of the through-holes.
• Etching: On each layer of the circuit, use photolithography and etching techniques to form the circuit pattern, removing excess copper foil
• Assembly and welding: After the components are installed, they can be soldered and connected using surface-mount technology (SMT) or traditional through-hole technologyTHT).

Dongguan Xingqiang Circuit Board Co., Ltd. was established in 1995 and is a professional circuit boardfactory that manufactures single-sided and double-sided PCBs, multi-layer PCBs, and Rigid Flex PCBs.

The company has two production bases in Dongguan andJiangxi, covering an area of 205000 square meters with a comprehensive monthly production capacity of 200000 square meters. The company's products are widely used in computer peripherals, communication, power supply, medical, automotive electronics, household appliances and other fields.

Our company advocate integrity, win-win and pioneering business philosophy, and put into practice the work style of "pragmatism, hard work and responsibility" to create a good corporate environment. Based on a new management model, advanced technology and equipment and good product quality, We always adhere to the corporate spirit of customer first and people-oriented.
