Transistor Single Sided Spot Welding Machine For Lithium Battery With PC

Categories Battery Spot Welding Machine
Brand Name: XWELL
Model Number: XW-ADW
Certification: CE
Place of Origin: China
MOQ: 1
Price: 10000-1000000USD/Negotiable
Payment Terms: D/A,D/P,T/T,L/C
Supply Ability: 30 pcs a month
Delivery Time: 7 dyas
Packaging Details: wooden case
Model: XW-ADW
Warranty: 1 year
Order(Moq): 1set
Payment: L/C D/A D/P T/T Western Union
Machine Size: 900L*1200W*1600Hmm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

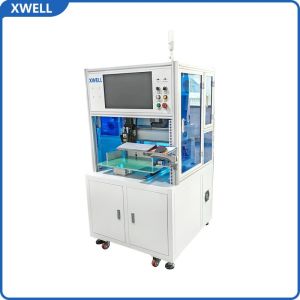

Transistor Single Sided Spot Welding Machine For Lithium Battery With PC

Transistor Single Sided Spot Welding Machine For Lithium Battery With PC

Product Description

Single sided spot welding machine is used to weld nickel sheets with many lithium batteries into a group pack, which is suitable for lithium battery pack assembly in the factory for 14500 18650 21700 26650 32700 etc multi-parallel multi-series combination.


Features:

This machine adopts three welding methods:

Fixed voltage welding : Control the voltage between electrodes, reduce the amount of current, and reduce the generation of sparks during welding

Fixed current welding: passing a certain amount of current, independent of the workpiece resistance, can stabilize welding

Fixed voltage&Fixed current welding: Welding is controlled by setting both current and voltage simultaneously


Technical Specifications
Welding Head Number2
Welding Head TypesRotary Welding Head
Rotation Function of Welding HeadThe welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding HeadR:180º
Adjustment RangeThe distance between tooling platform and welding needle can be adjusted by 30 mm.
TravelY: 500mm; Z; Z2:350mm
Welding Speed0.35s/spot,3600pcs/h
Welder Power Suppler5000/8000A Inverter Spot Welder
Max Motor Speed1000mm/s
Max Battery Number200-600 pcs cells
User InterfaceTouch screen
Power Supply220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding MaterialPure nickel sheet: 0.03-0.2mm
Nickel-plated steel strip: 0.03-0.3mm
Double Sided Spot Welding Machine for Lithium Battery Pack
