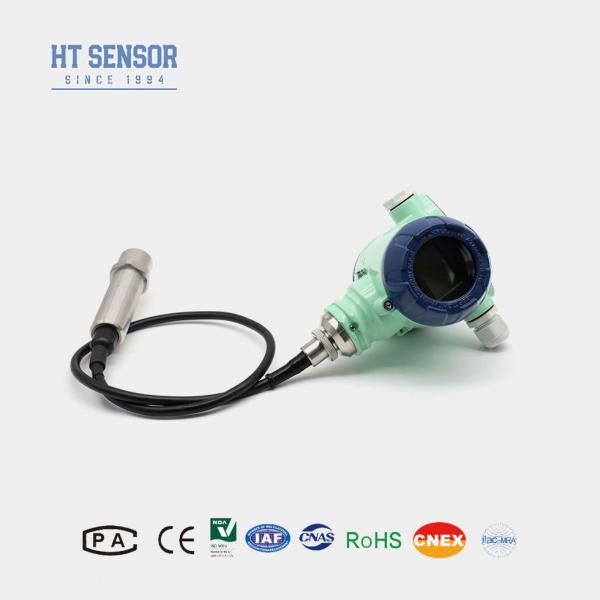

BH93420-III Advanced Water Level Transmitter for Industrial Applications

Categories Water Level Transmitter
Certification: CE, RoHS, ISO9001
MOQ: 1
Price: 70
Brand Name: HT
Model Number: BH93420-III
Place of Origin: CN
Model NO.: BH93420-III
Pressure Range: 0-1m-400 Mh2o
Display Type: LED
Accuracy Grade: 0.1%,0.25%
IP Rating: IP68
Net Weight: 1.6kg
Diaphragm Material: 316L Stainless Steel
Measurement Range: 0~10m…400mH2O
Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload: ≤ 2X rated range
Accuracy @ 25ºC: ±0.1% (Typ.) ±0.2% (Max.)
Operating Temperature: -20~80ºC
Storage Temperature: -30~100ºC
Housing Material: Cast aluminum, Stainless steel 1Cr18Ni9Ti
Output Signal: 4~20mA with Hart
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

BH93420-III Advanced Water Level Transmitter for Industrial Applications


BHZ93420 III water level Transmitter

Introduction:
BHZ93420-III insertion-type intelligent water level transmitter is equipped with a high-precision  piezoresistive  silicon pressure sensor as its signal measuring element. It measures the static pressure, which is directly proportional to the liquid level. The transmitter utilizes HART communication protocol to achieve digital signal transmission and two-way communication

Product  Features:
  1. HART communication protocol output, with display capability
  2. High accuracy and excellent stability
  3. Explosion-proof rating : ExiaIICT6
  4. High protection level, IP68
  5. PE, PTFT, PU cables available
  6. Multiple structures available, catering to various on-site requirements of customers
Applications:
  1. Compatible with 316LSS,noncorrosive liquids
  2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc
  3. Diesel, fuel, and other oil tank level monitoring
Performance Parameters
Measurement Range0~10m…400mH2O
Pressure TypeGauge Pressure, Absolute Pressure, Sealed Pressure
Overload≤ 2X  rated range
Accuracy @ 25ºC±0.1% (Typ.)   ±0.2% (Max.)
Repeatability±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis±0.03% (Typ.)  ±0.05%FS (Max.)
Long-Term Stability±0.15%F.S/year (Max.)
Zero  Temperature Drift±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature0-50ºC  (0-1m . 0-2m);    0-70ºC
Operating Temperature-20~80ºC
Storage Temperature-30~100ºC
Vibration10g,55Hz ~ 2kHz
Shock100g
Housing MaterialCast aluminum, Stainless steel 1Cr18Ni9Ti
Diaphragm Material316L Stainless Steel
Insulation Resistance>=100MΩ@100VDC
Explosion-proof RatingExiaIICT6
Protection RatingIP68
O-Ring SealFluoro rubber
Weight~1.6Kg (without cable)
Cable MaterialPolyethylene, Polyurethane, PTFE  cable

Output SignalSupply VoltageOutput Type
4~20mA with Hart15~30VDC2 wire
Outline Construction
          2088


        3051A
        3051HT Sensor BHZ93420-III Water Level Transmitter with 0.1% Accuracy



Electrical Connection
HT Sensor BHZ93420-III Water Level Transmitter with 0.1% Accuracy          4-20mA
           (HART)
1V+Red
2V-Yellow
3NC
4NC

4-20mA
(HART)
1V+Red
2V-Yellow
3NC
4NC

4-20mA
(HART)
1V+Red
2V-Yellow
3GND
4NC

Selection Examples


Ordering tips
1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.


Order Guide
BHZ93420CodeOutline Construction
 IIIIntelligent liquid level transmitter
 Measurement Range0~10m…400m
 CodePower Supply
D124VDC
 CodeOutput Signal
S14~20mADCS24~20mADC with Hart
 CodeElectrical Connection
B42088 with display
B53051
B63051A
 CodePressure Type
GGauge Pressure
AAbsolute Pressure
 SSealed Reference Pressure
 CodeCable Material
C1PE
C2PU
C3PTFE



FAQ:
1. Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
